Trunk / Liftgate Lock: Service and Repair





TRUNK LID

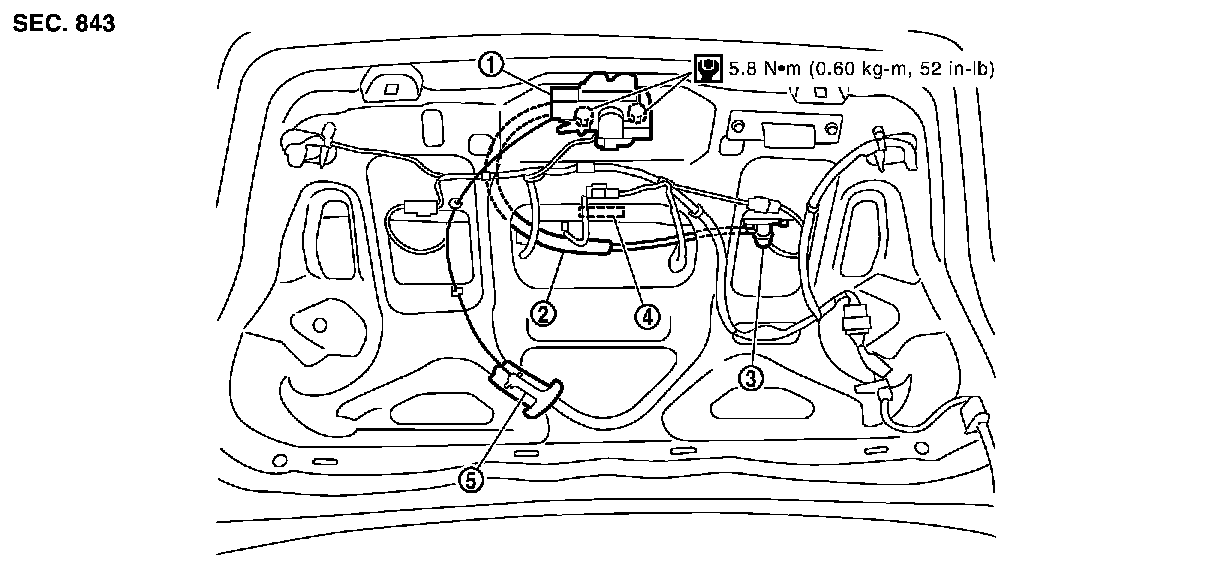

Removal and Installation of Trunk Lid Lock


REMOVAL










1. Remove the trunk lid finisher. .
2. Remove the trunk lid emergency opener lever.
3. Disconnect the trunk lid opener cable.
4. Disconnect the trunk lid.





5. Remove the mounting bolts, and remove the trunk lid lock.

INSTALLATION
1. Install in the reverse order of removal.
2. After installing, close the trunk lid height. Perform the lock and surface height adjustment. Adjustments.
3. After installing, check the operation.
