Cruise Control Switch: Service and Repair

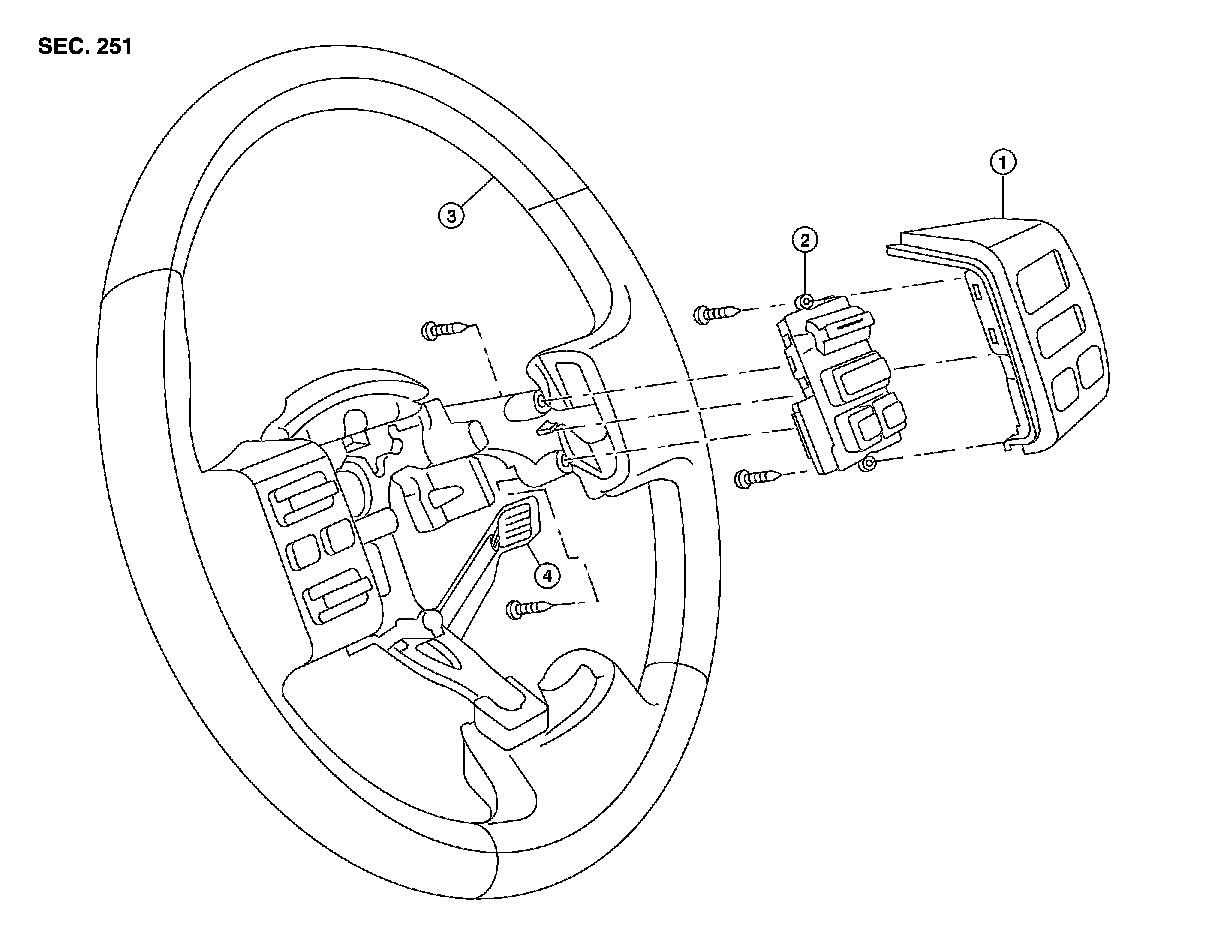

ICC STEERING SWITCH

Removal and Installation

REMOVAL
1. Remove the steering wheel. Removal and Replacement.
2. Remove the steering wheel rear cover.
3. Pull the steering wheel ICC switch out of the steering wheel, disconnect the steering wheel ICC switch connector.
4. Remove the steering wheel ICC switch finisher screws and remove the steering wheel ICC switch finisher.

INSTALLATION
Installation is in the reverse order of removal.
