Passenger Side

POWER WINDOW MOTOR - PASSENGER SIDE





Description
Door glass moves UP/DOWN by receiving the signal power window main switch or power window sub-switch .




Component Function Check
1. CHECK POWER WINDOW MOTOR CIRCUIT
Check passenger side power window motor operation with power window main switch or power window sub switch.
Is the inspection result normal?
YES - Power window motor is OK.
NO - SEE Diagnosis Procedure.




Diagnosis Procedure
1.CHECK PASSENGER SIDE POWER WINDOW MOTOR INPUT SIGNAL
1. Turn ignition switch OFF.
2. Disconnect passenger side power window motor connector.
3. Turn ignition switch ON.

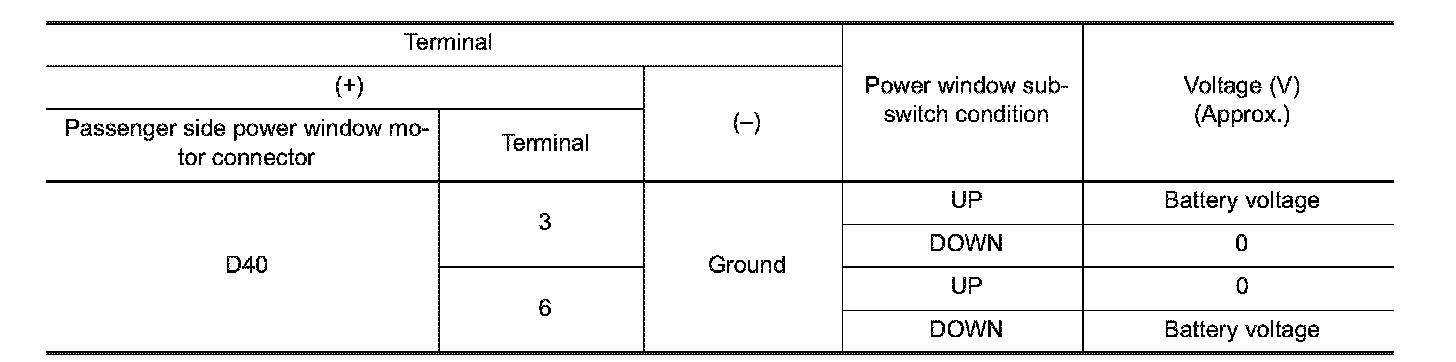

4. Check voltage between passenger side power window motor harness connector and ground.





Is the measurement value within the specification?
YES - Replace passenger side power window motor. Removal And Installation.
NO - GO TO 2.
2.CHECK POWER WINDOW SUB-SWITCH OUTPUT SIGNAL

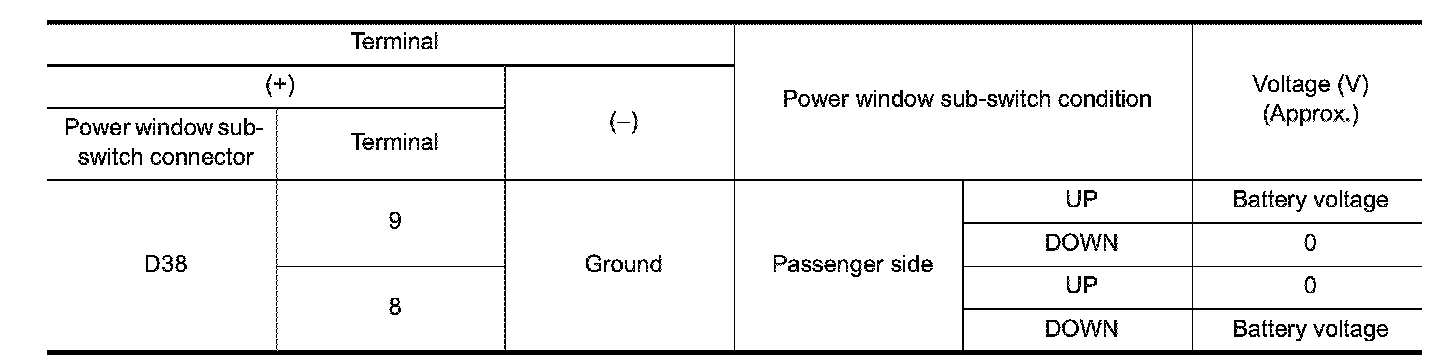

Check voltage between power window sub-switch harness connector and ground.





Is the inspection result normal?
YES - GO TO 3.
NO - Replace power window sub-switch. Service and Repair.
3.CHECK HARNESS CONTINUITY
1. Turn ignition switch OFF.
2. Disconnect power window sub-switch connector.

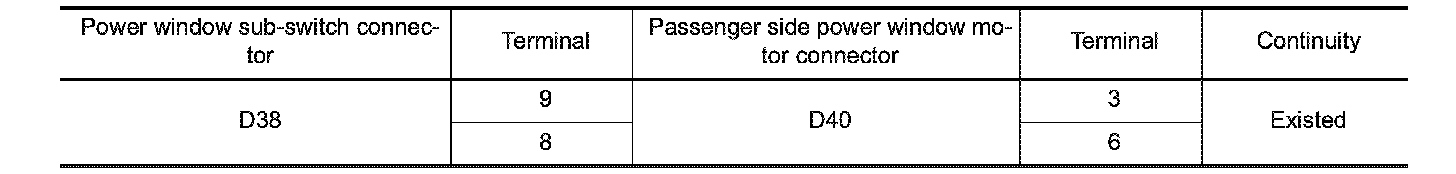

3. Check continuity between power window sub-switch harness connector and passenger side power window motor harness connector.

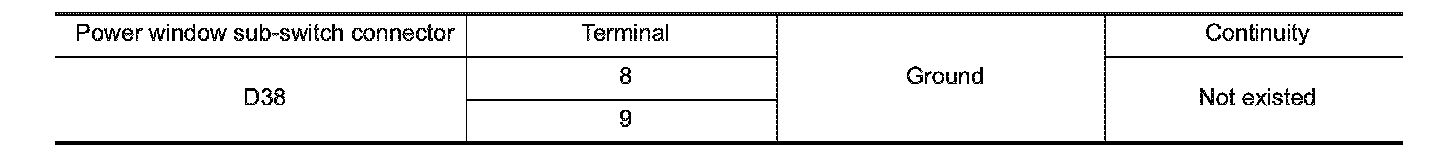

4. Check continuity between power window sub-switch connector and ground.





Is the inspection result normal?
YES - GO TO 4.
NO - Repair or replace harness.
4.CHECK INTERMITTENT INCIDENT
Intermittent Incident.
- INSPECTION END
