C. Checking Bluetooth(R) Setting

C: Check Bluetooth(R) Setting

1. Press the "Setting" button on the switch panel.

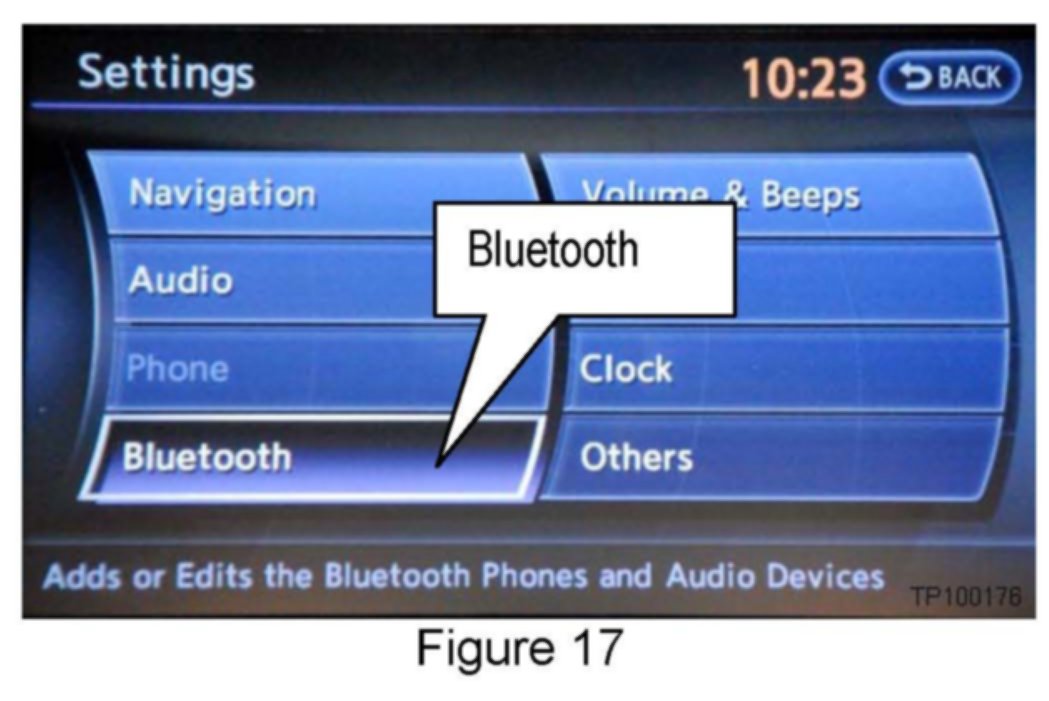

2. Touch Bluetooth(R).





3. Make sure Bluetooth is set to the customers setting (as it was before starting the procedure).

^ Touching Bluetooth will change the setting ON > OFF or OFF > ON

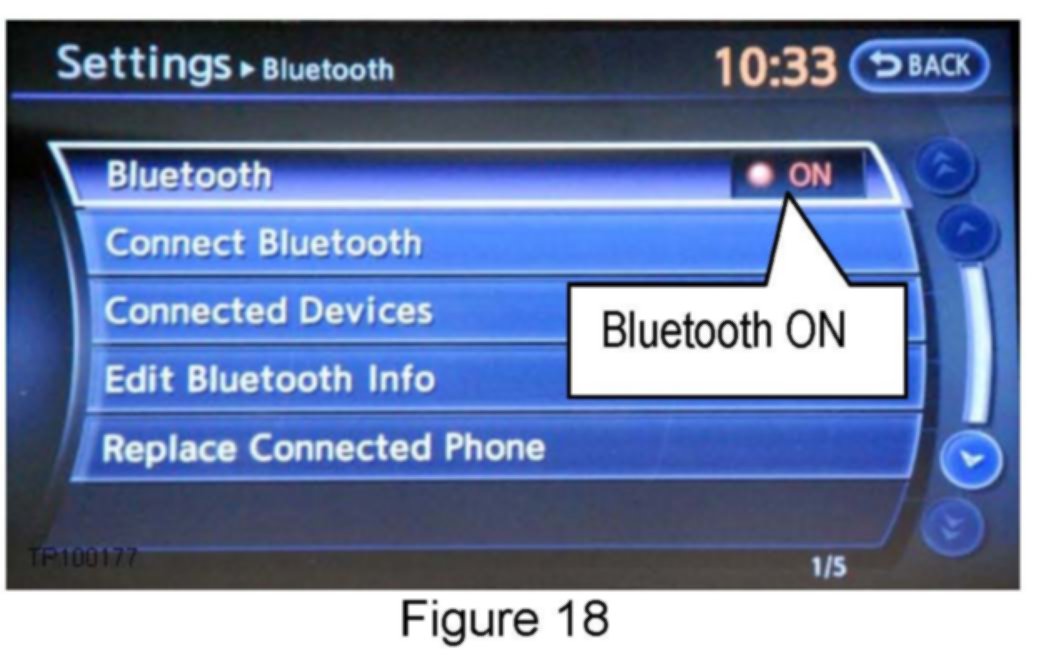

^ Bluetooth is ON when the ON indicator displays in orange.

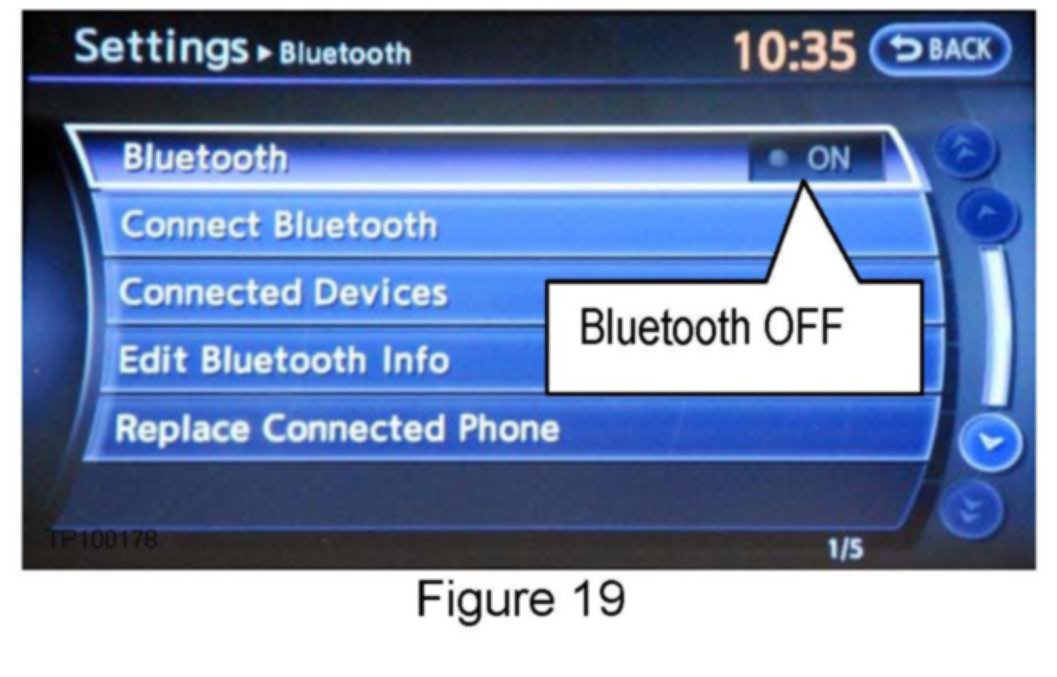

^ Bluetooth is OFF when the ON indicator is grayed out.

4. Turn the ignition OFF. The process is complete.
