CAN


MAIN LINE BETWEEN AV AND M&A CIRCUIT





Diagnosis Procedure
1.CHECK HARNESS CONTINUITY (OPEN CIRCUIT)
1. Turn the ignition switch OFF.
2. Disconnect the battery cable from the negative terminal.
3. Disconnect the following harness connectors.
- ECM
- AV control unit
- Combination meter
4. Check the continuity between the AV control unit harness connector and the combination meter harness connector.

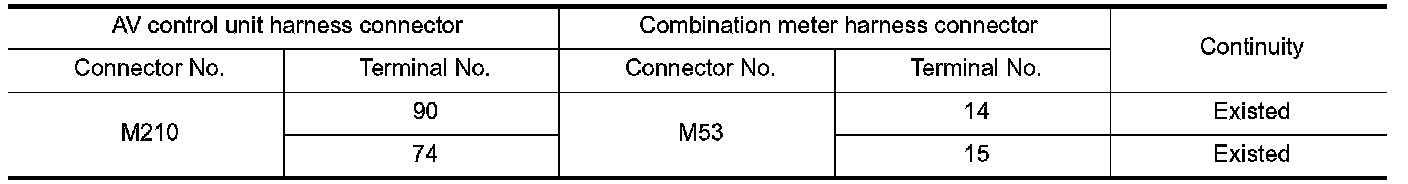

- Models with navigation system

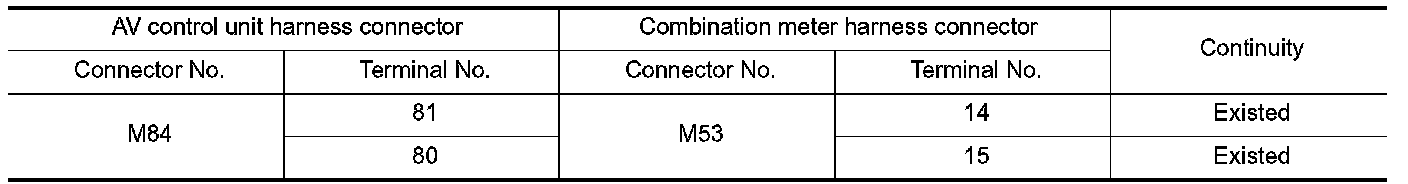

- Models without navigation system





Is the inspection result normal?
YES (Present error)-Check CAN system type decision again.
YES (Past error)-Error was detected in the main line between the AV control unit and the combination meter.
NO - Replace the PCB harness.
