A. Disable Bluetooth(R) Function

A: Disable Bluetooth(R) function

1. Set the parking brake.

2. Turn the ignition ON and keep the transmission in Park or Neutral.

3. Make sure there is no disc in the CD/DVD slot (eject any disc that may be in the CD/DVD player).

4. Press the "SETTING" button on the switch panel.

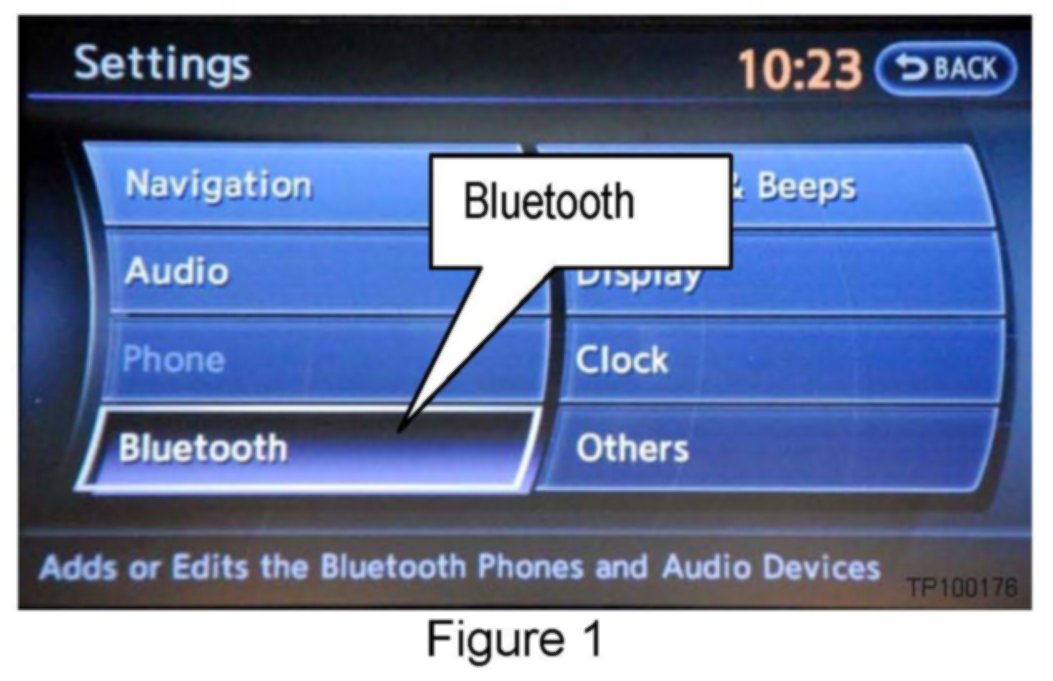

5. Touch Bluetooth(R).

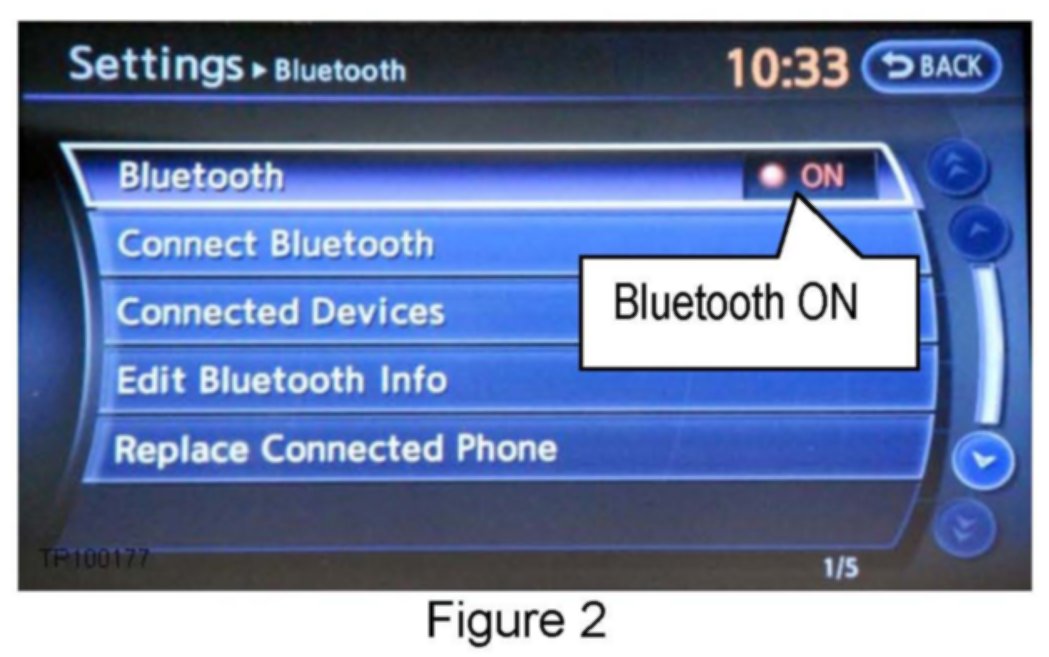

6. Make sure Bluetooth is off.

^ Touching Bluetooth will change the setting ON > OFF or OFF > ON

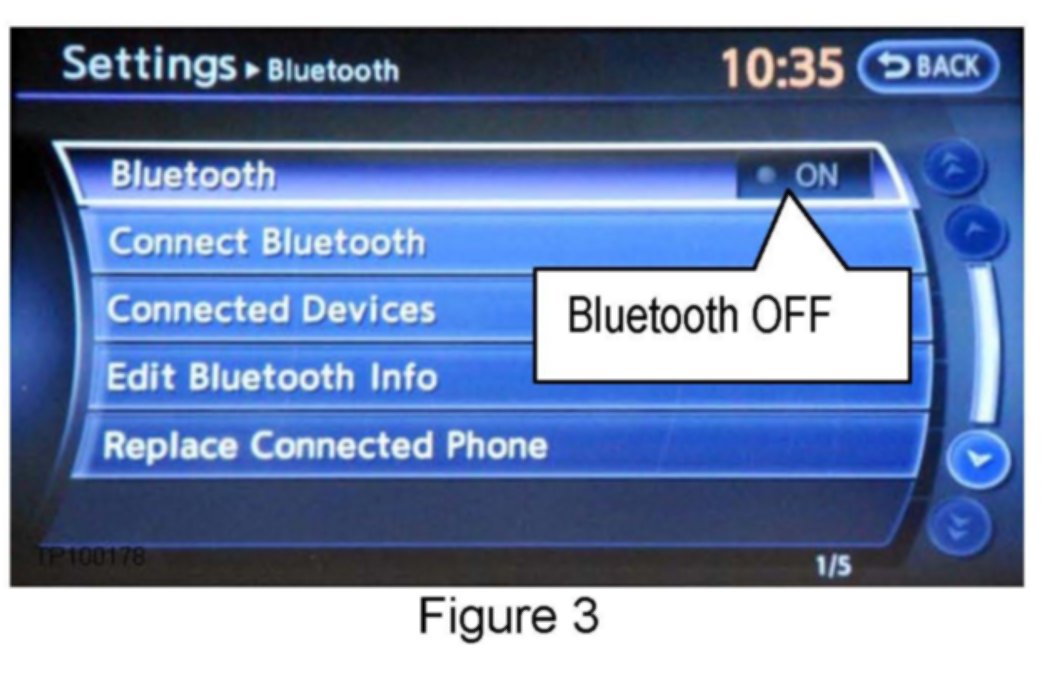

^ Bluetooth is OFF when the ON indicator is grayed out.

7. Turn the ignition OFF and Wait for 10 seconds.

8. Go to B: Loading the Program.
