System Description




AUTOMATIC SPEED CONTROL DEVICE (ASCD) : System Description

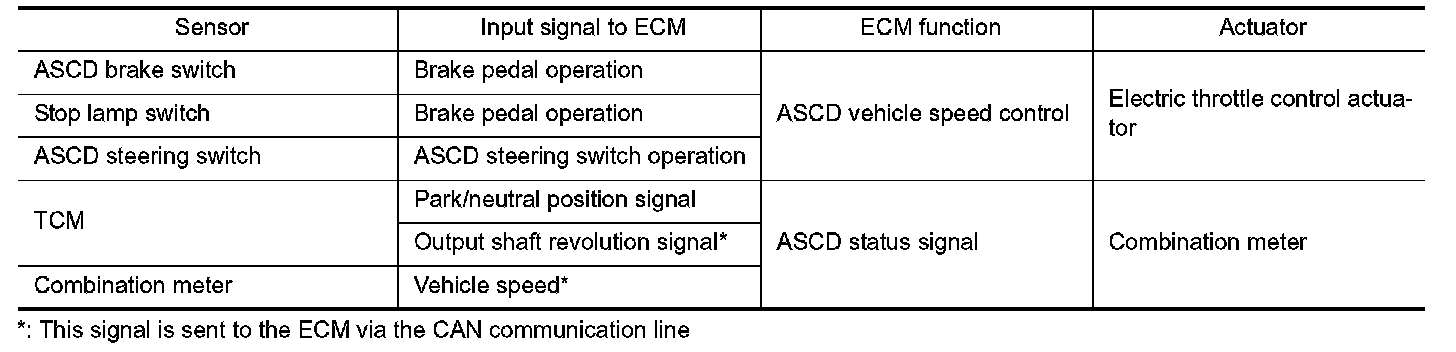

INPUT/OUTPUT SIGNAL CHART






BASIC ASCD SYSTEM
- Automatic Speed Control Device (ASCD) allows a driver to keep vehicle at predetermined constant speed without depressing accelerator pedal. Driver can be set the vehicle speed in the set speed range.
- ECM controls throttle angle of electric throttle control actuator to regulate engine speed.
- Operation status of ASCD is indicated in combination meter.
- If any malfunction occurs in the ASCD system, it automatically deactivates the ASCD control. for ASCD operating instructions.

CAUTION:
Always drive vehicle in a safe manner according to traffic conditions and obey all traffic laws.
