Timing Cover



Timing Cover

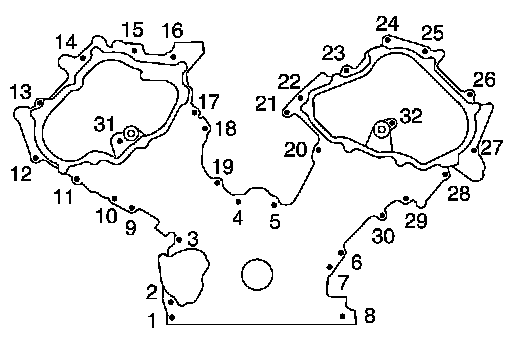

Timing cover bolts 12.8 (1.3 kgf-m, 9 ft lb)

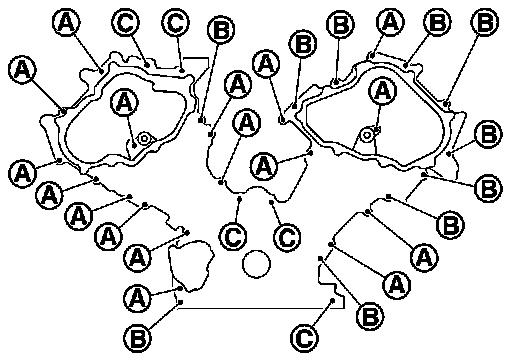

There are three types of mounting bolts





A : 20 mm (0.79 in)
B : 50 mm (1.97 in)
C : 80 mm (3.15 in)
