Refilling

TRANSFER FLUID

Refilling

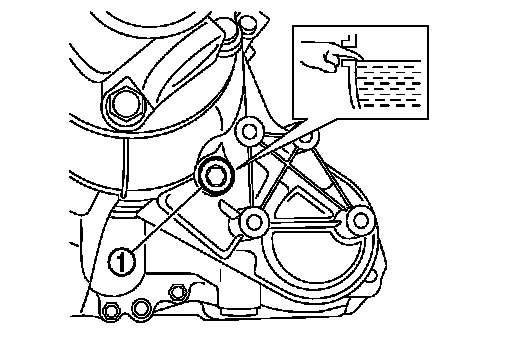

1.Remove filler plug (1) and gasket. Then fill fluid up to mounting hole for the filler plug.
Fluid and viscosity:

CAUTION:
Carefully fill the fluid. (Fill up for approximately 3 minutes.)
2.Leave the vehicle for 3 minutes, and check the fluid level again.
3.Set a new gasket onto filler plug, and install it on transfer and tighten to the specified torque. Exploded View.

CAUTION:
Never reuse gasket.
