Description

ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT

Description

There are 2 kinds of operations in initialization of retractable hard top system.
- Without CONSULT-III: Position information of parcel shelf and roof latch is memorized.
- With CONSULT-III: Roof position information is memorized.

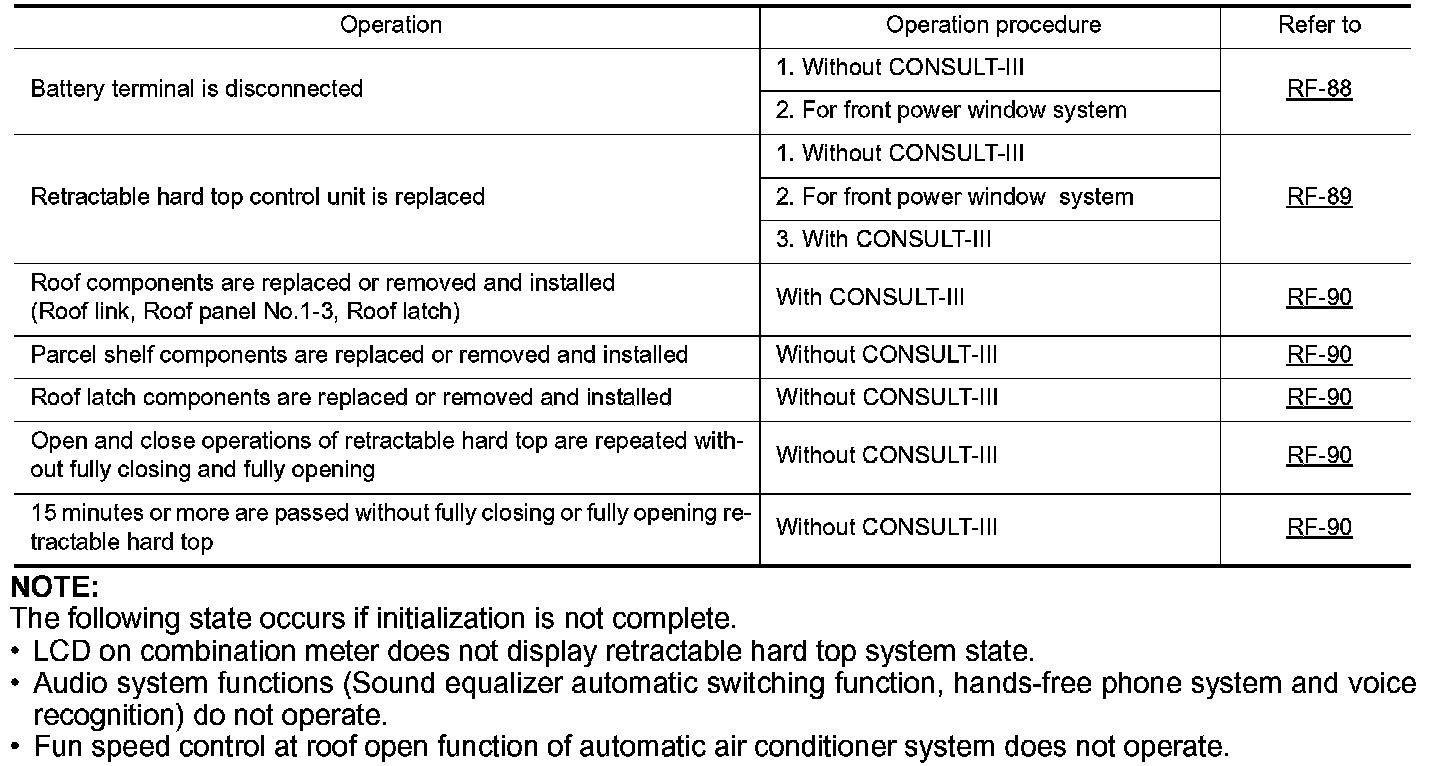

It is necessary to perform initialization, because normal position information of each part is lost when the operation show in the following table are performed.





NOTE:
The following state occurs if initialization is not complete.
- LCD on combination meter does not display retractable hard top system state.
- Audio system functions (Sound equalizer automatic switching function, hands-free phone system and voice recognition) do not operate.
- Fun speed control at roof open function of automatic air conditioner system does not operate.
