Compressor System Symptoms

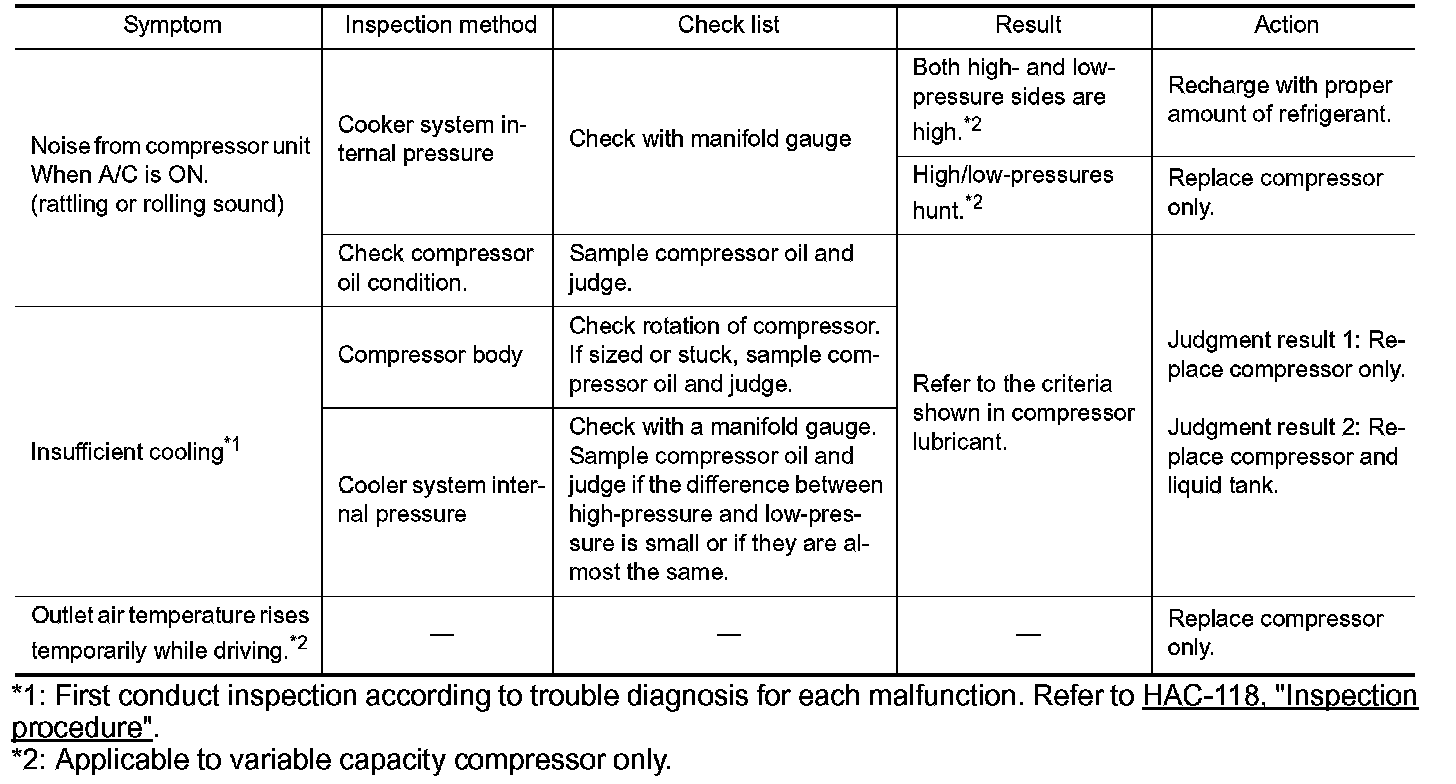

COMPRESSOR SYSTEM SYMPTOMSSymptom Table Follow the next table and perform trouble diagnosis if there is a compressor unit malfunction (internal noise, insufficient cooling).
*1: First conduct inspection according to trouble diagnosis for each malfunction.
Insufficient Cooling.
*2: Applicable to variable capacity compressor only.
