Refilling

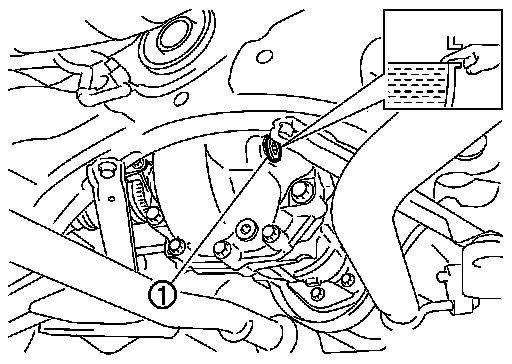

REAR DIFFERENTIAL GEAR OILRefilling 1.Remove filler plug (1). Fill with new gear oil until oil level reaches the specified level near filler plug mounting hole.
Oil capacity: General Specifications. 2.After refilling oil, check oil level. Set a gasket to filler plug, then install it to final drive assembly.
Exploded View.
CAUTION: Never reuse gasket.
