Description

TRANSFER LOCK POSITION SENSOR LEARNING

Description

- Detect a stroke of transfer lock sleeve and learn operating area of transfer lock sleeve (Lock/Unlock)
- Perform the learning of transfer lock position sensor by "WORK SUPPORT" of CONSULT function. Refer to
Work Procedure.

CAUTION:
Before performing the learning of lock position sensor, must erase learning of transfer lock position sensor.

*

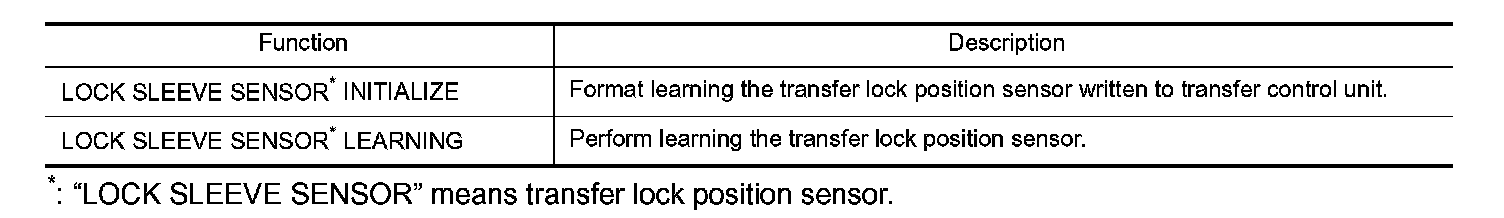

: "LOCK SLEEVE SENSOR" means transfer lock position sensor.
