Scan Tool Testing and Procedures

DIAGNOSIS SYSTEM (TRANSFER CONTROL UNIT)

CONSULT Function


FUNCTION

CONSULT can display each diagnostic item using the diagnostic test modes as follows.





*
: The following diagnosis information is erased by erasing.
- DTC

ECU IDENTIFICATION

Transfer control unit part number can be read.

SELF DIAGNOSTIC RESULT

Testing and Inspection.
- The system is presently malfunctioning.
- System malfunction in the past is detected, but the system is presently normal.
NOTE:
Each time when ignition switch is turned OFF to ON, numerical number increases in 1->2->3...110->111.
When the operation number of times exceeds 111, the number do not increase and "111" is displayed until
*
self-diagnosis is erased.
*: For "U1000" and "U1010", the maximum value is "39".

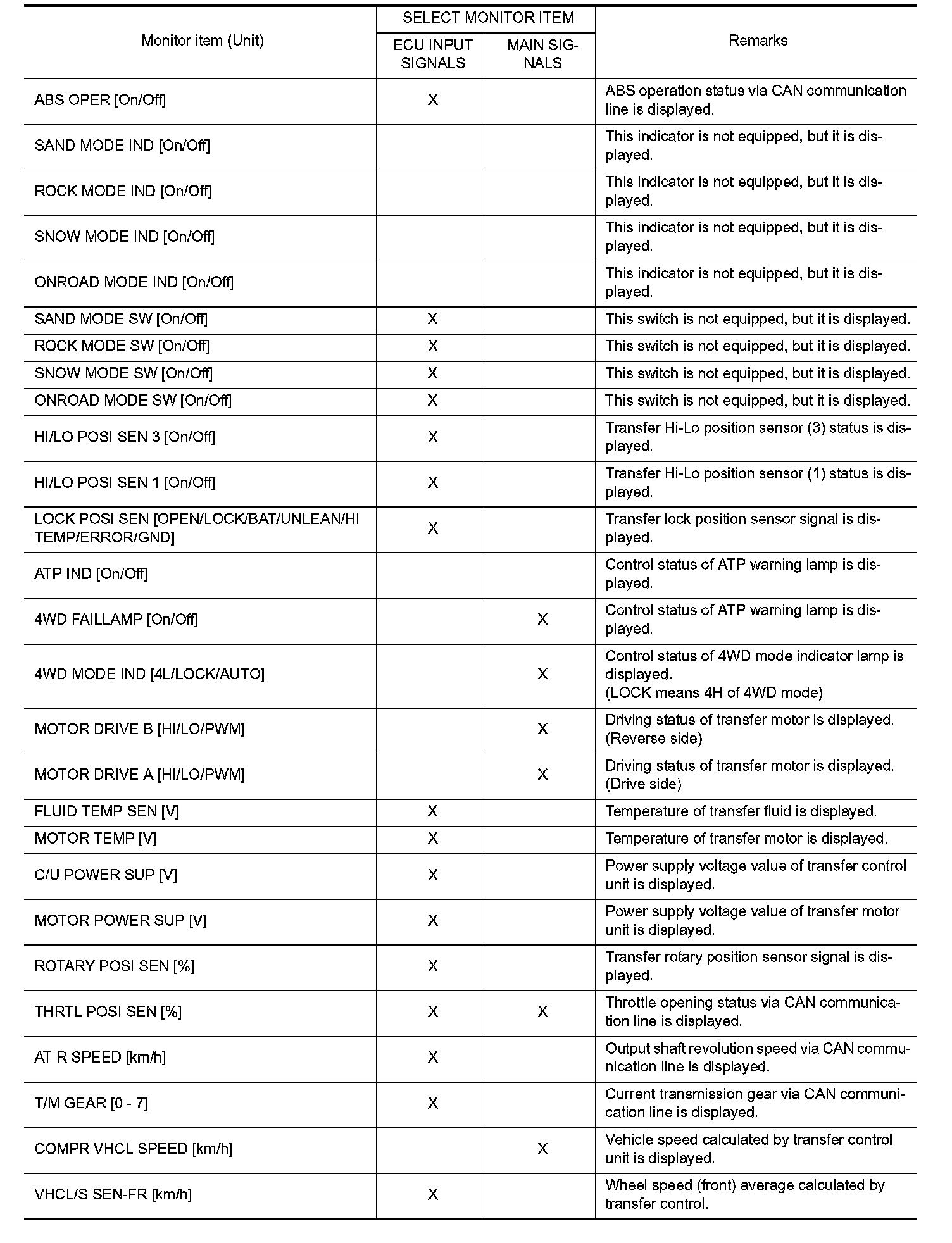

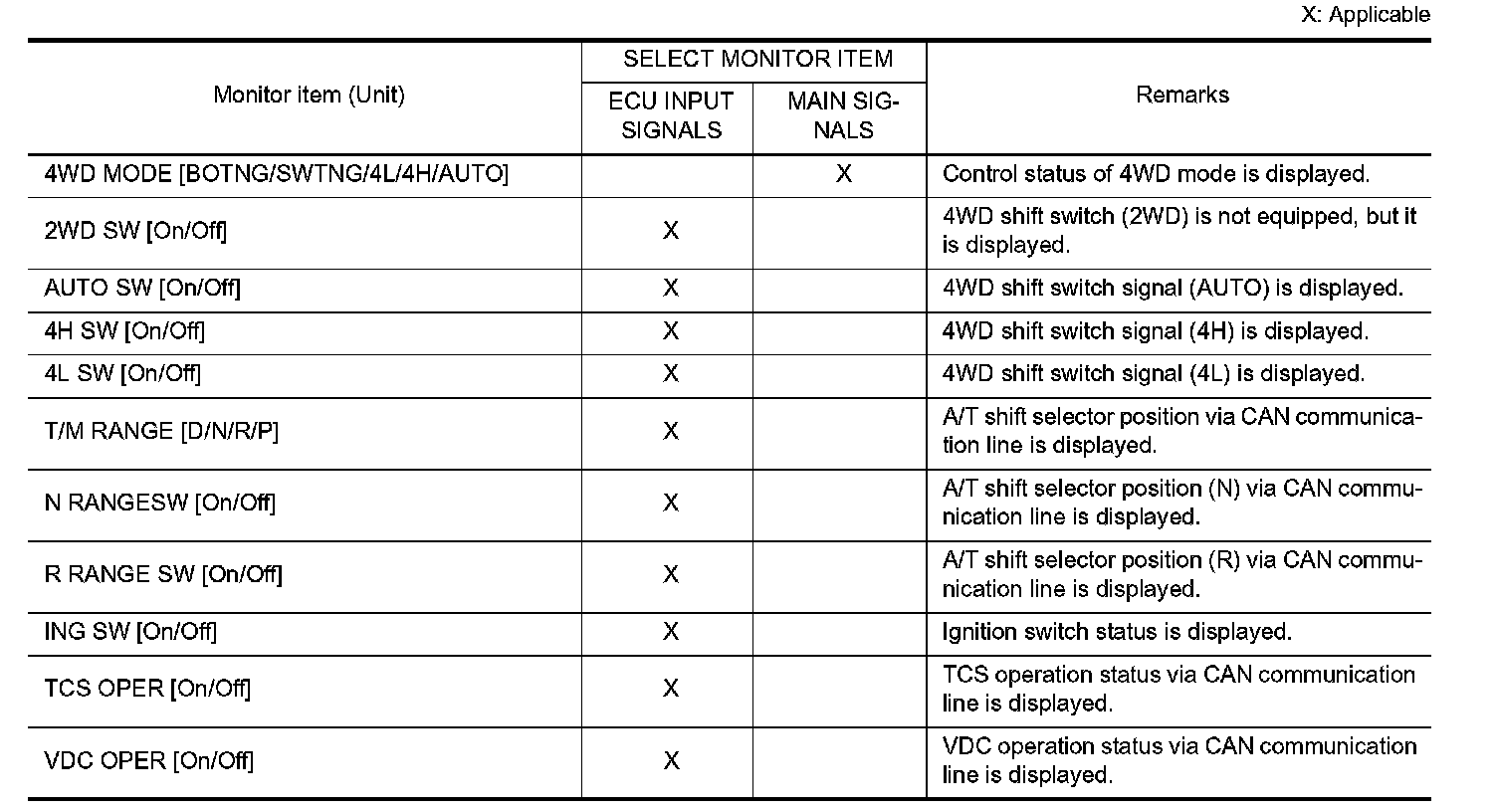

DATA MONITOR

X: Applicable
















WORK SUPPORT






*
: "LOCK SLEEVE SENSOR" means transfer lock position sensor.
