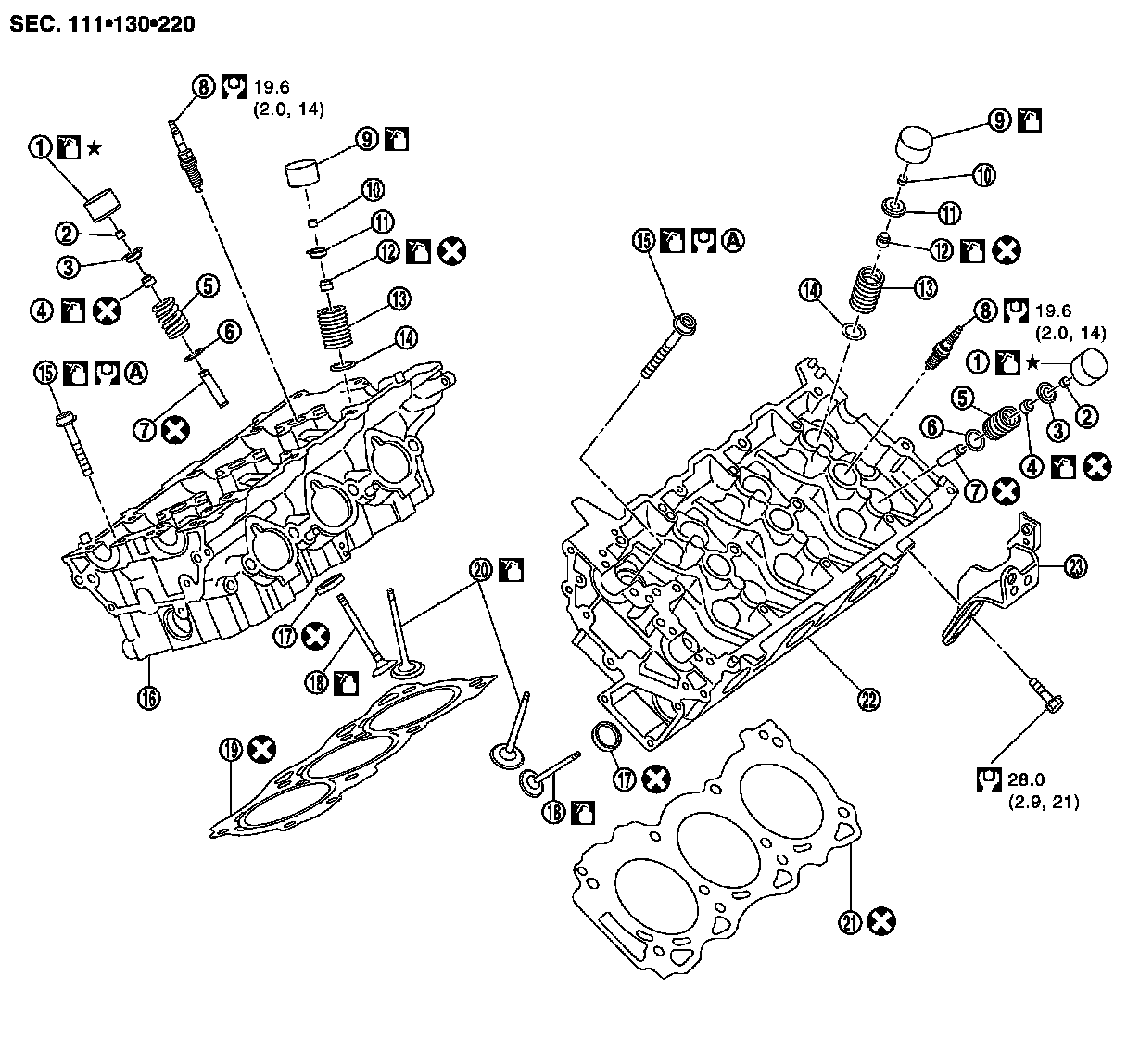

Exploded View

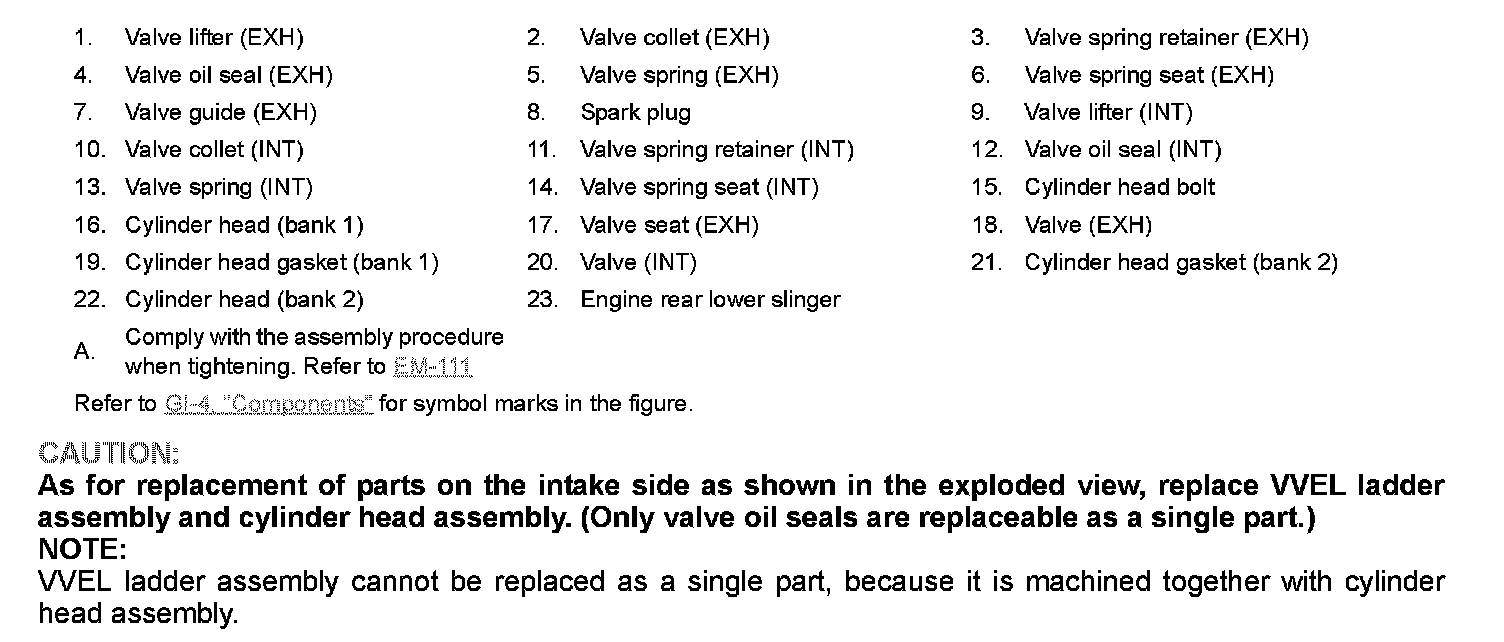

CYLINDER HEADExploded View CAUTION: As for replacement of parts on the intake side as shown in the exploded view, replace VVEL ladder assembly and cylinder head assembly. (Only valve oil seals are replaceable as a single part.) NOTE: VVEL ladder assembly cannot be replaced as a single part, because it is machined together with cylinder head assembly.
