Auto Intake Interlocking Movement Change Function (With ACCS)

INSPECTION AND ADJUSTMENT

Auto Intake Interlocking Movement Change Function (With ACCS)


DESCRIPTION

Conditions for interlocking movement of intake switch (auto intake mode) and A/C switch can be changed. In addition, operation of the intake switch, which activates the auto intake control system, can be set to become available when the A/C switch is ON.
1.Begin self-diagnosis STEP-5 mode. Refer to "Diagnosis Description" Diagnosis Description.
2.Press fan (UP:+) switch three times to set system in auxiliary mode.

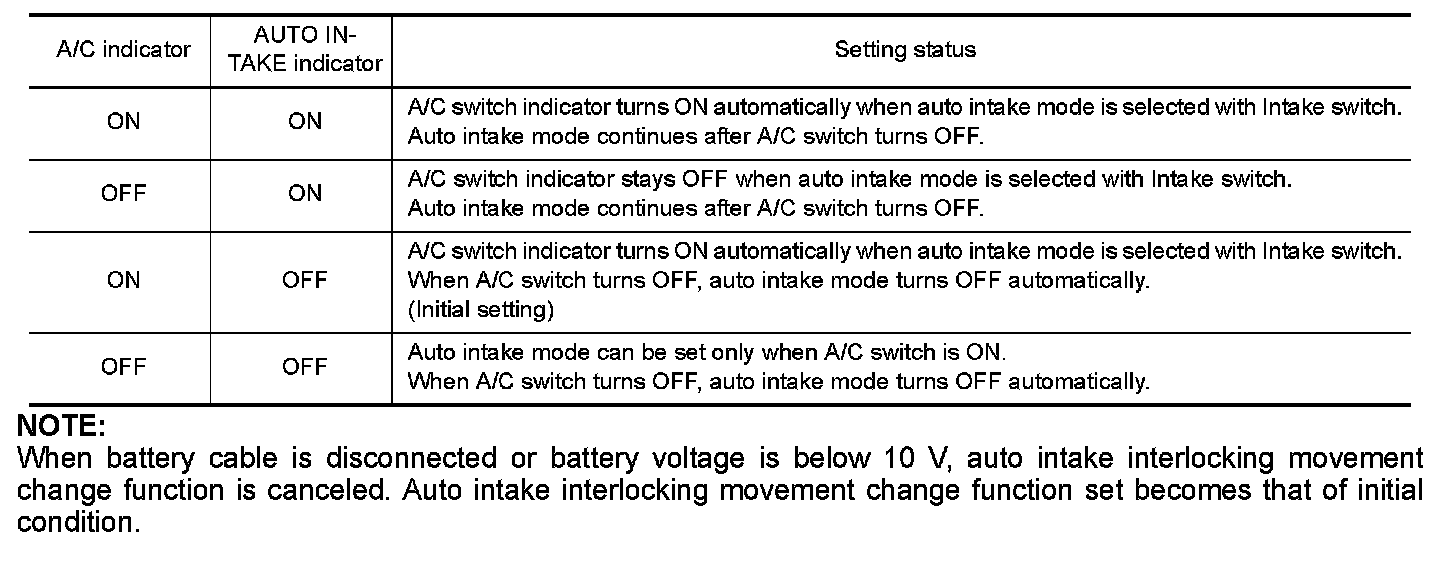

3.Press A/C switch and intake switch as desired.





NOTE:
When battery cable is disconnected or battery voltage is below 10 V, auto intake interlocking movement change function is canceled. Auto intake interlocking movement change function set becomes that of initial condition.
