Main Line Between DLC and A Circuit




MAIN LINE BETWEEN DLC AND M&A CIRCUIT

Diagnosis Procedure


1. CHECK HARNESS CONTINUITY (OPEN CIRCUIT)

1.Turn the ignition switch OFF.
2.Disconnect the battery cable from the negative terminal.
3.Disconnect the following harness connectors.
- ECM
-Unified meter and A/C amp.

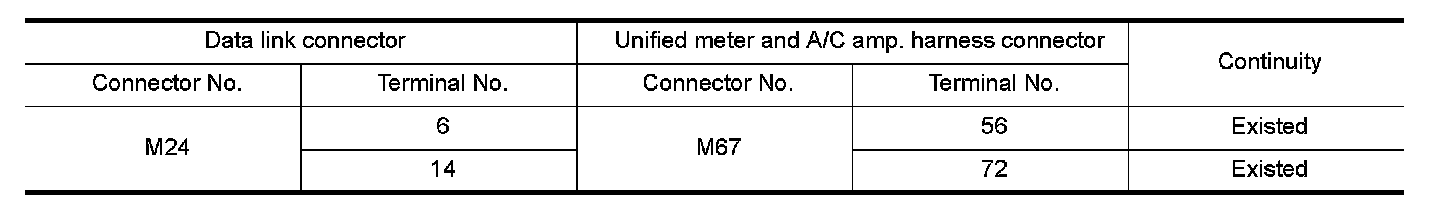

4.Check the continuity between the data link connector and the unified meter and A/C amp. harness connector.





Is the inspection result normal?
YES (Present error)-Check CAN system type decision again.
YES (Past error)-Error was detected in the main line between the data link connector and the unified meter and A/C amp.
NO- Repair the main line between the data link connector and the unified meter and A/C amp.
