With Navigation




POWER SUPPLY AND GROUND CIRCUIT

AV CONTROL UNIT : Diagnosis Procedure


1. CHECK FUSE

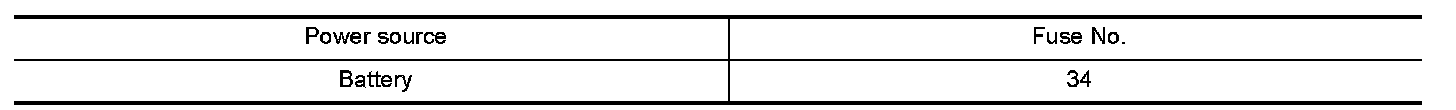

Check for blown fuses.





Is the inspection result normal?
YES- GO TO 2.
NO- Be sure to eliminate cause of malfunction before installing new fuse.

2. CHECK BATTERY POWER SUPPLY CIRCUIT

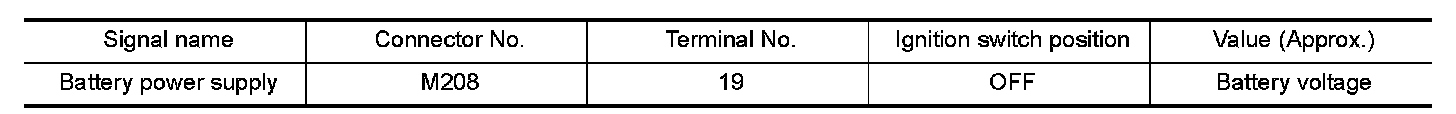

Check voltage between AV control unit harness connector and ground.





Is the inspection result normal?
YES- GO TO 3.
NO- Check harness between AV control unit and fuse.

3. CHECK ACC POWER SUPPLY CIRCUIT

Check voltage between AV control unit harness connector and ground.





Is the inspection result normal?
YES- GO TO 5.
NO- GO TO 4.

4. CHECK ACC POWER SUPPLY CIRCUIT

1.Turn ignition switch OFF.
2.Disconnect AV control unit harness connector and BCM harness connector.

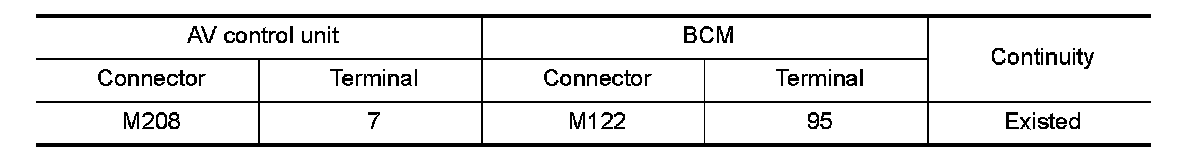

3.Check continuity between AV control unit harness connector and BCM harness connector.

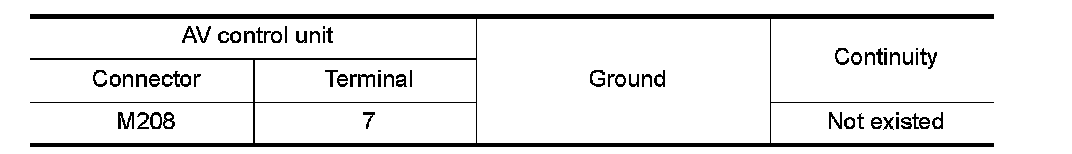

4.Check continuity between AV control unit harness connector and ground.





Is the inspection result normal?
YES- GO TO 5.
NO- Repair harness or connector.

5. CHECK GROUND CIRCUIT

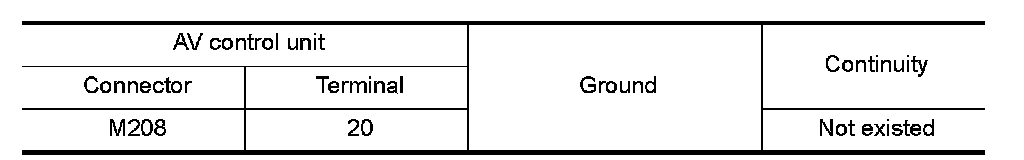

Check continuity between AV control unit harness connector and ground.





Is the inspection result normal?
YES- INSPECTION END
NO- Repair harness or connector.
