Removal and Installation




MILLIMETER WAVE SENSOR

Removal and Installation


REMOVAL

1.Remove front bumper fascia. Refer to "Removal and Installation" Removal and Installation.
2.Disconnect the harness connector from the millimeter wave sensor.
3.Release the harness clip from the millimeter wave sensor.
4.Remove millimeter wave sensor bolts.
5.Remove millimeter wave sensor.

INSTALLATION

Installation is in the reverse order of removal.

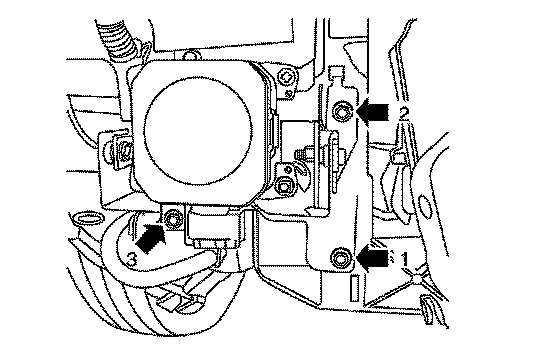

- Install millimeter wave sensor bolts (black arrow) loosely; then tighten in sequence shown.

WARNING:
- Do not look straight into the millimeter wave sensor when performing millimeter wave sensor alignment.
- Always perform the millimeter wave sensor alignment and check the operation after removal, installation or replacement of millimeter wave sensor. Refer to "Work Procedure" Work Procedure.

CAUTION:
- Do not drop or shock millimeter wave sensor.
- Make sure millimeter wave sensor harness is installed without any twists.
