Consult Data Link Connector (DLC) Circuit




CONSULT CHECKING SYSTEM

CONSULT Data Link Connector (DLC) Circuit


INSPECTION PROCEDURE

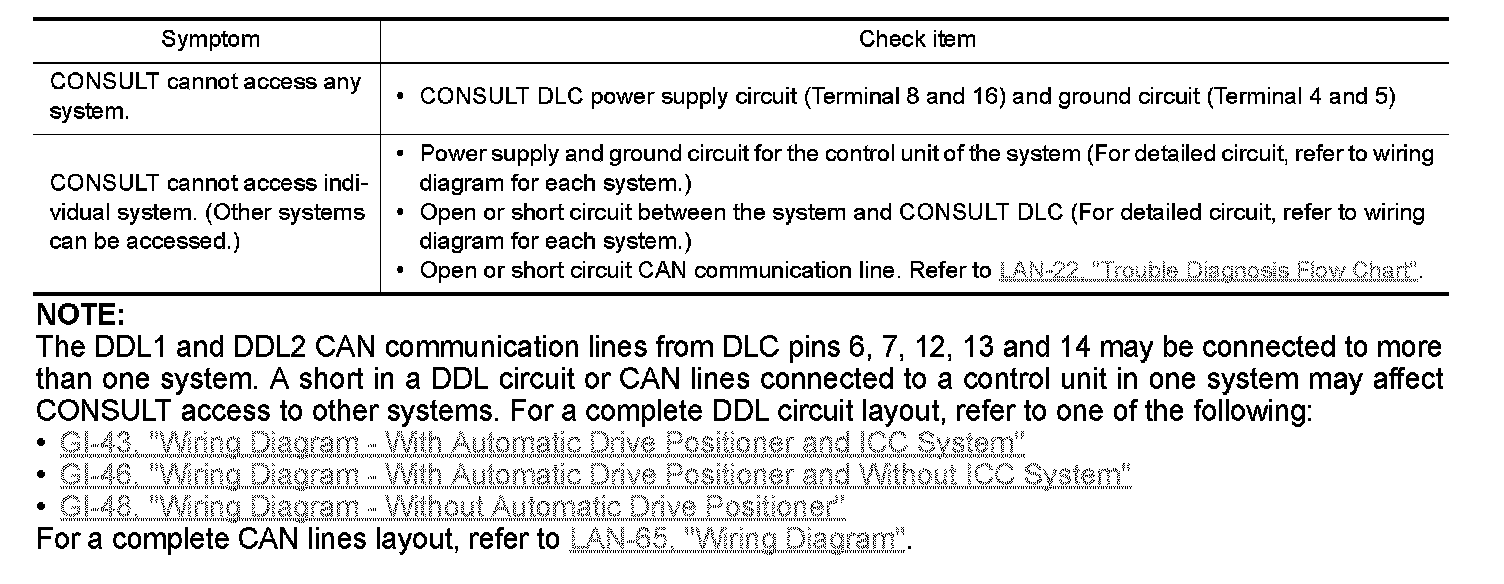

If the CONSULT cannot diagnose the system properly, check the following items.





NOTE:
The DDL1 and DDL2 CAN communication lines from DLC pins 6, 7, 12, 13 and 14 may be connected to more than one system. A short in a DDL circuit or CAN lines connected to a control unit in one system may affect
CONSULT access to other systems. For a complete DDL circuit layout, refer to one of the following:
-"Wiring Diagram With Automatic Drive Positioner and ICC System" Wiring Diagram - With Automatic Drive Positioner and ICC System
-"Wiring Diagram With Automatic Drive Positioner and Without ICC System" Wiring Diagram - With Automatic Drive Positioner and Without ICC System
-"Wiring Diagram Without Automatic Drive Positioner" Wiring Diagram - Without Automatic Drive Positioner
For a complete CAN lines layout, refer to "Wiring Diagram" CAN System (With Automatic Drive Positioner and ICC System).
Revision: March 20122013 Infiniti JX
