Component Function Check
MIRROR SENSORPASSENGER SIDE : Component Function Check 1. CHECK FUNCTION 1.Select "MIR/SEN RH U-D", "MIR/SEN RH R-L" in "Data monitor" using CONSULT.

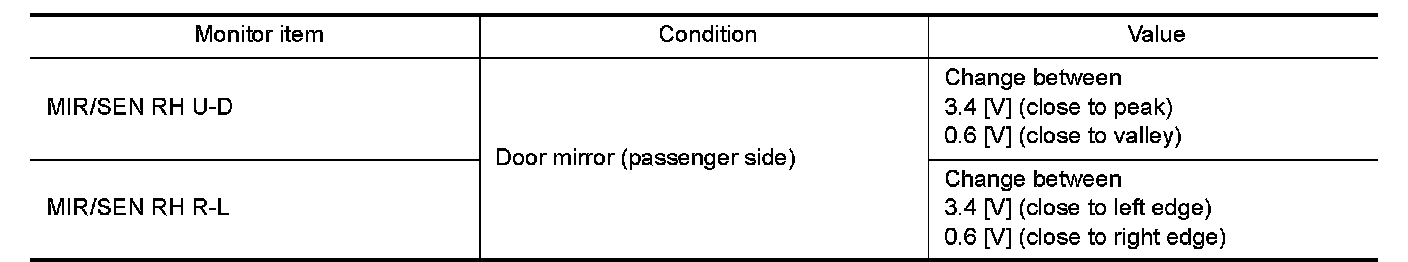

2.Check the mirror sensor (passenger side) signal under the following conditions.
Is the indication normal?
YES- INSPECTION END
NO- Perform diagnosis procedure. Refer to "PASSENGER SIDE : Diagnosis Procedure"
Diagnosis Procedure.
