Lubricant Adjusting Procedure For Compressor Replacement

LUBRICANT

Lubricant Adjusting Procedure for Compressor Replacement

1.Drain lubricant from removed compressor and measure lubricant amount.

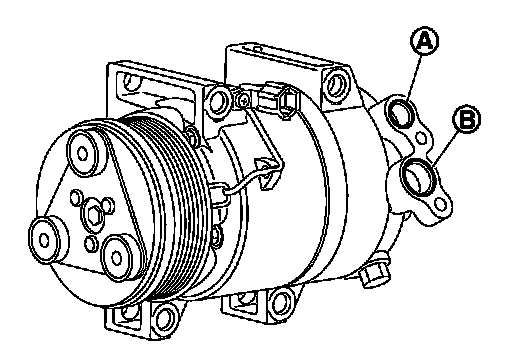

1.Drain lubricant from high-pressure port (A) and low-pressure port (B) while rotating magnet clutch.
2.Measure total amount of lubricant that is drained from removed compressor.





2.Drain lubricant from a new compressor that is calculated according to the following conditions.

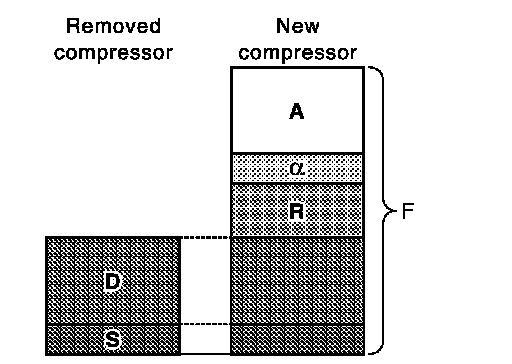

Amount to be drained (A) [ml (Imp fl oz.)] = F (D
+ S + R + a)
F: Lubricant amount that a new compressor


contains [210 (7.1)]
D: Lubricant amount that is drained from removed compressor
S: Lubricant amount that remains inside of removed compressor [20 (0.7)]
R: Lubricant amount to be added according to
components that are removed except compressor
a: Lubricant amount that is recycled together
with refrigerant during recycle operation

CAUTION:
If lubricant amount that is drained from removed compressor is less than 60 m (2.1 Imp fl oz.), perform calculation by setting "D" as 40 m (1.4 Imp fl oz.).

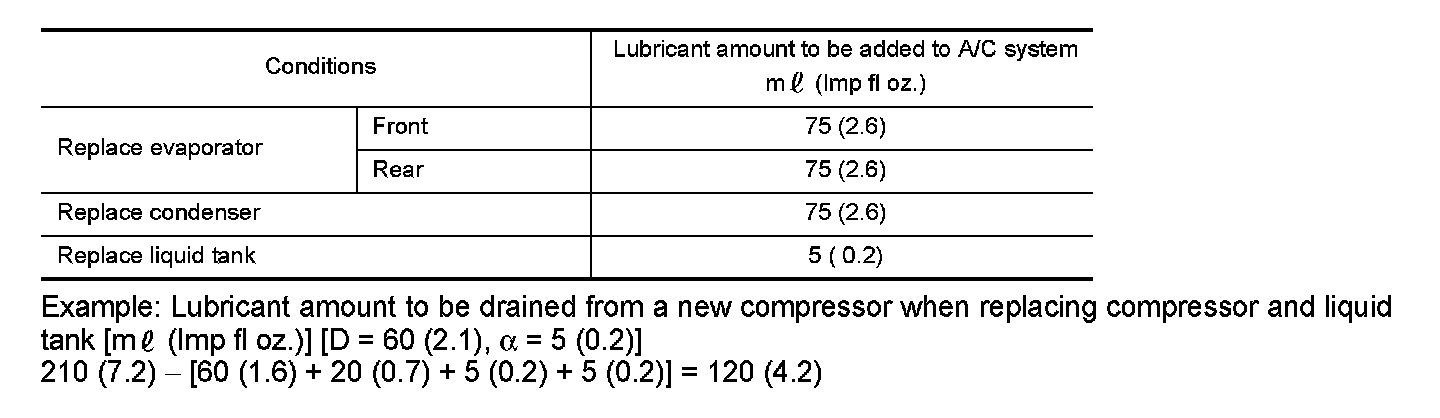

Example: Lubricant amount to be drained from a new compressor when replacing compressor and liquid tank [ml (Imp fl oz.)] [D = 60 (2.1), a = 5 (0.2)]
210 (7.2) [60 (1.6) + 20 (0.7) + 5 (0.2) + 5 (0.2)] = 120 (4.2)
3.Install compressor and check the operation.
