ECM

Reference Value


VALUES ON THE DIAGNOSIS TOOL

NOTE:
- The following table includes information (items) inapplicable to this vehicle. For information (items) applicable to this vehicle, refer to CONSULT display items.
- Numerical values in the following table are reference values.
- These values are input/output values that ECM receives/transmits and may differ from actual operations.
Example:
The ignition timing shown by the timing light may differ from the ignition timing displayed on the data monitor.
This occurs because the timing light shows a value calculated by ECM according to signals received from the cam shaft position sensor and other sensors related to ignition timing.
For outlines of following items, refer to "CONSULT Function" For Mexico.

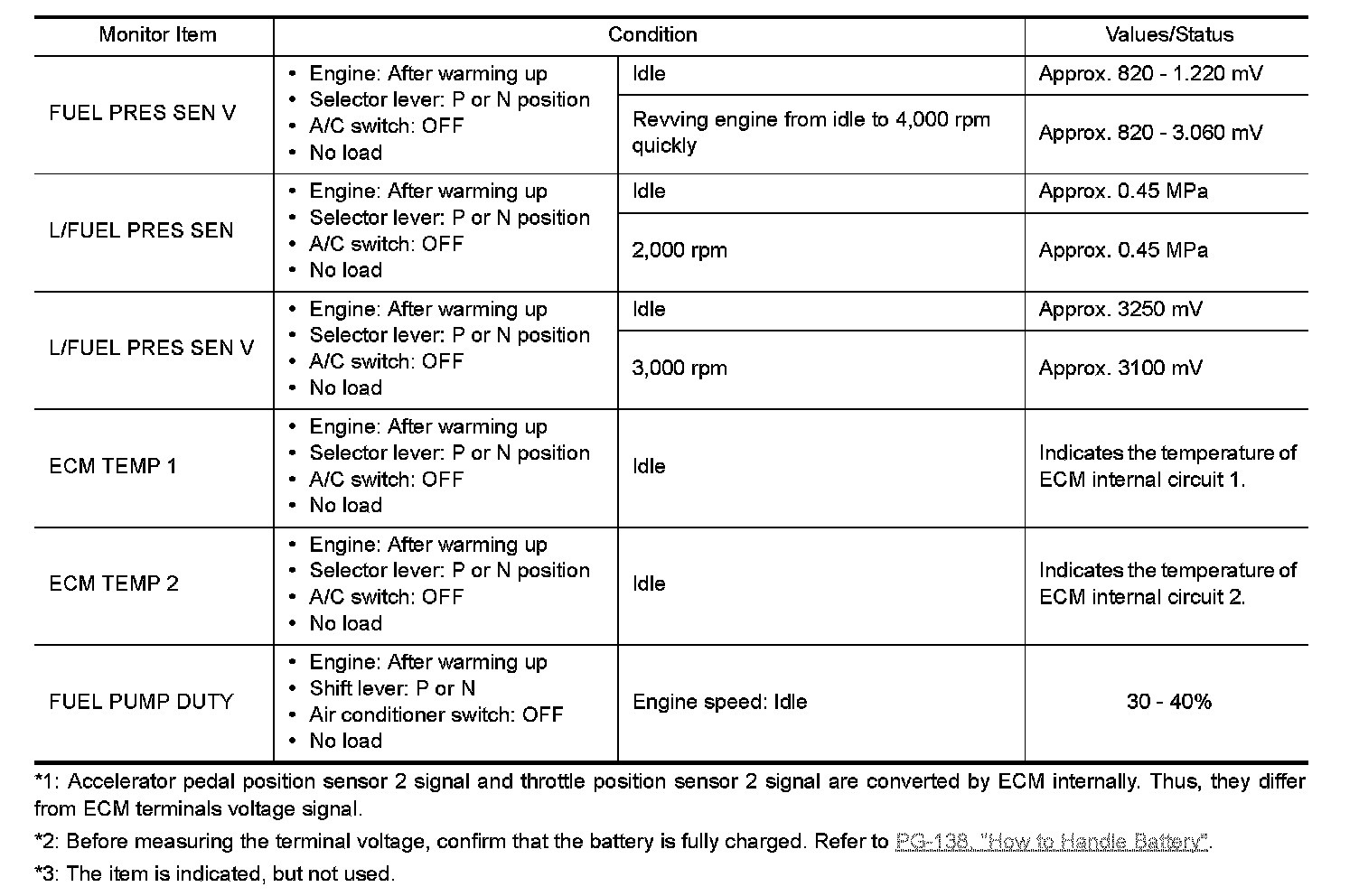

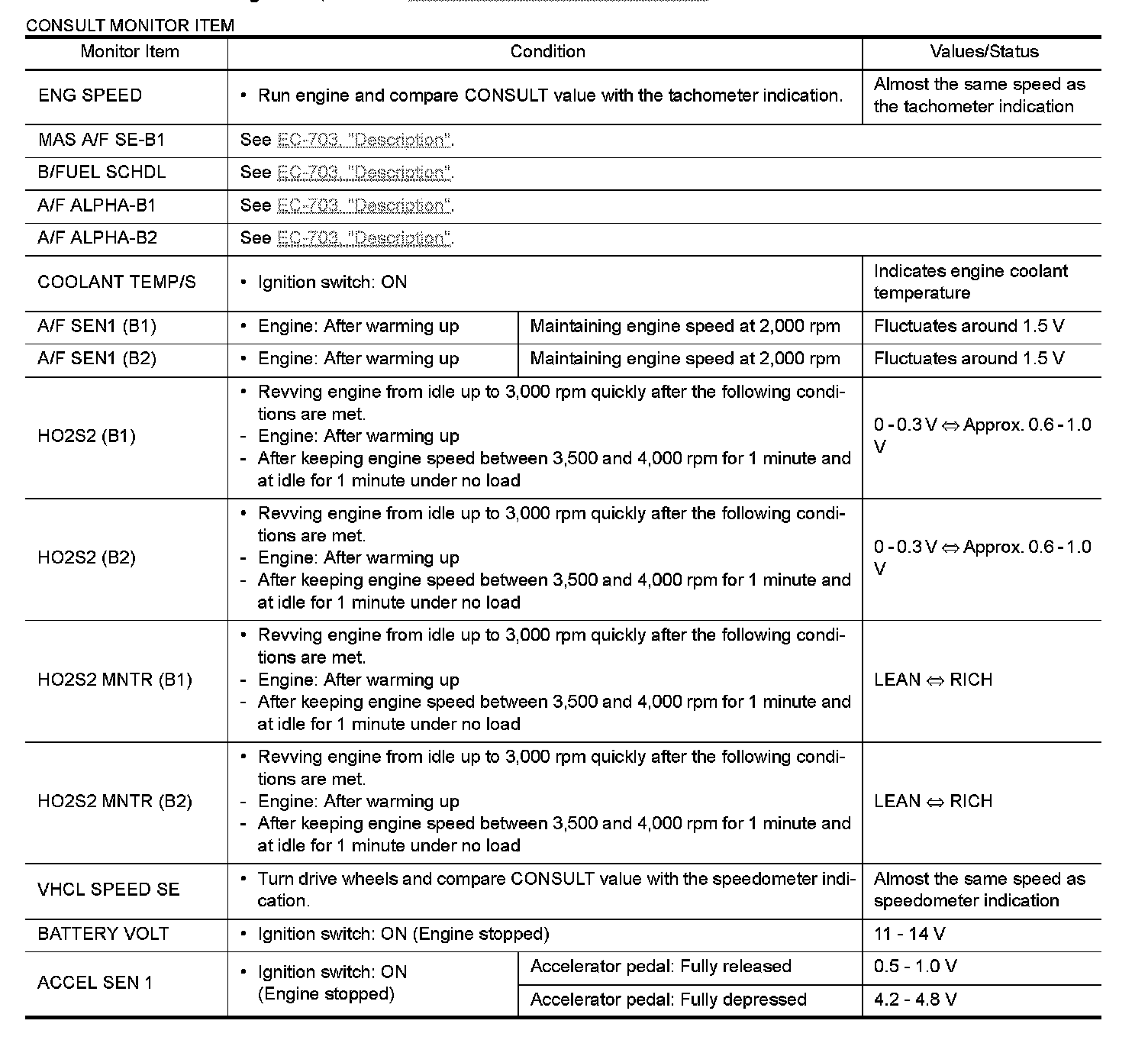

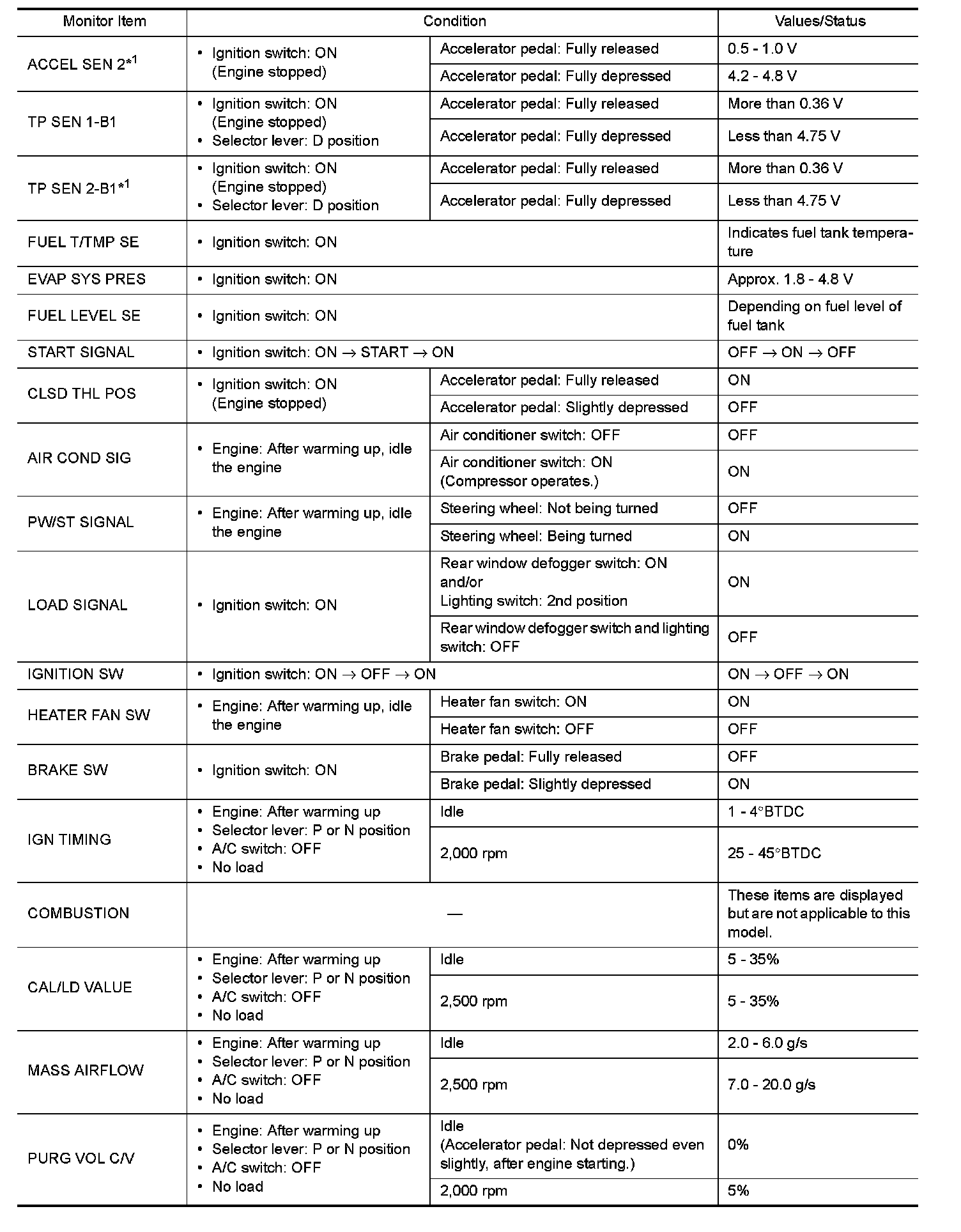

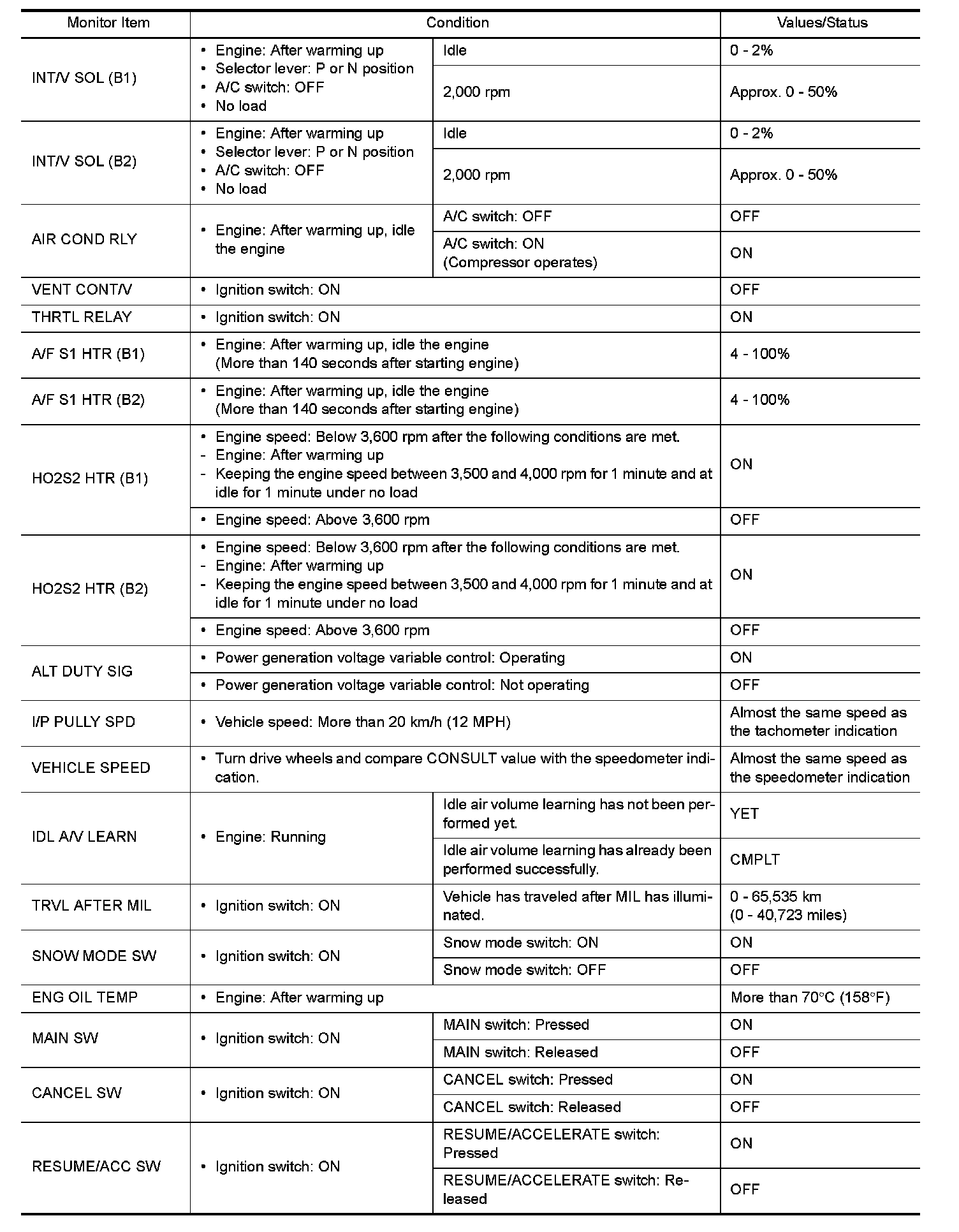

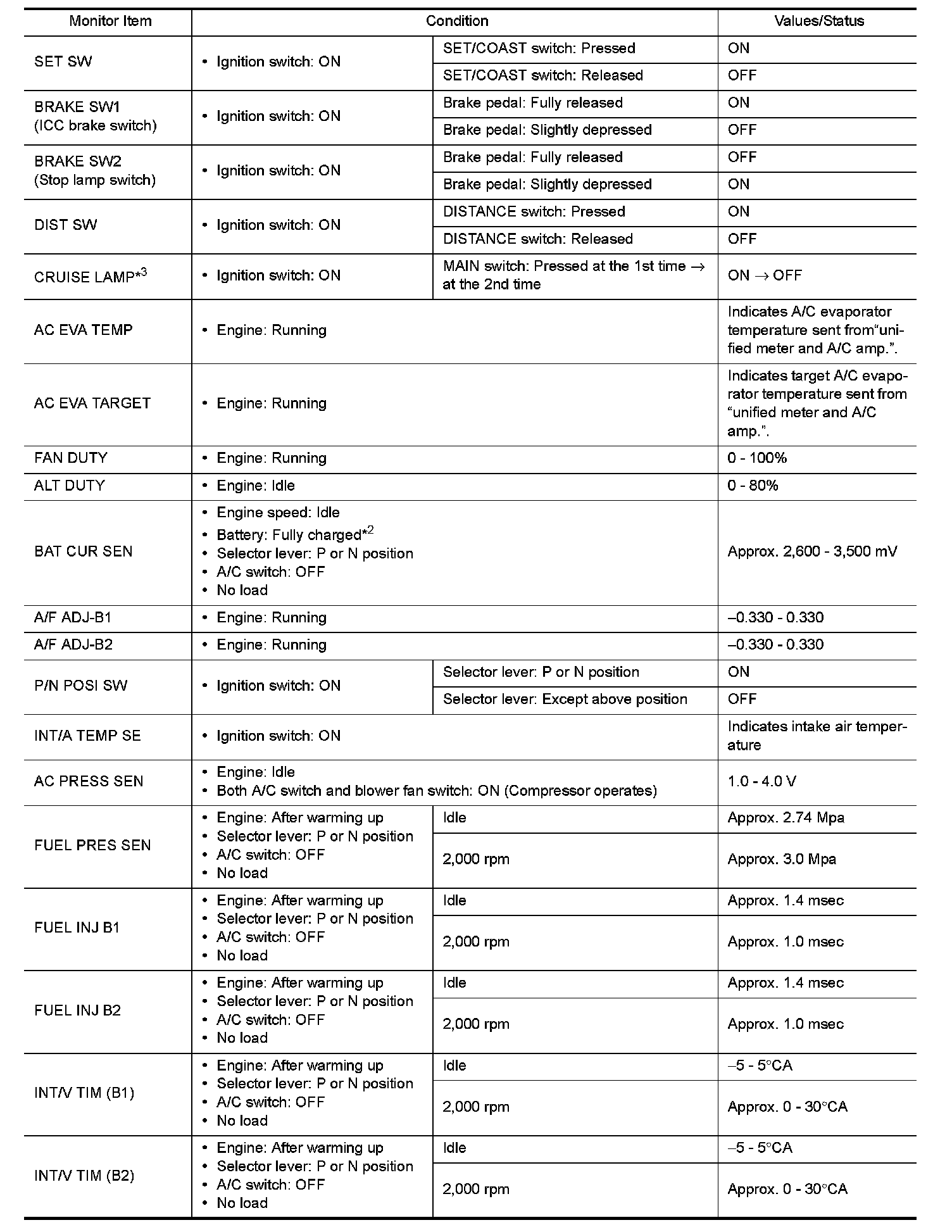

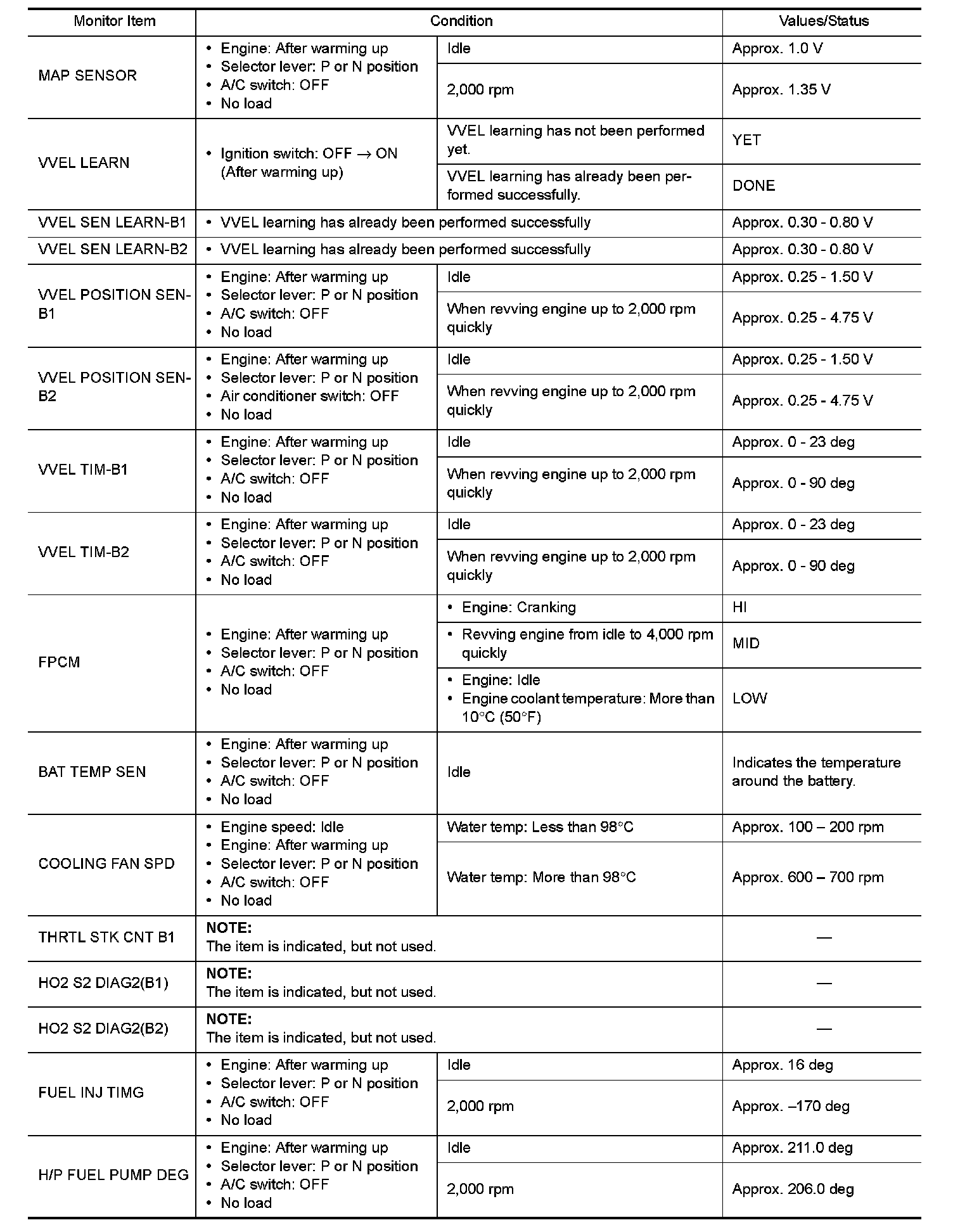

CONSULT MONITOR ITEM

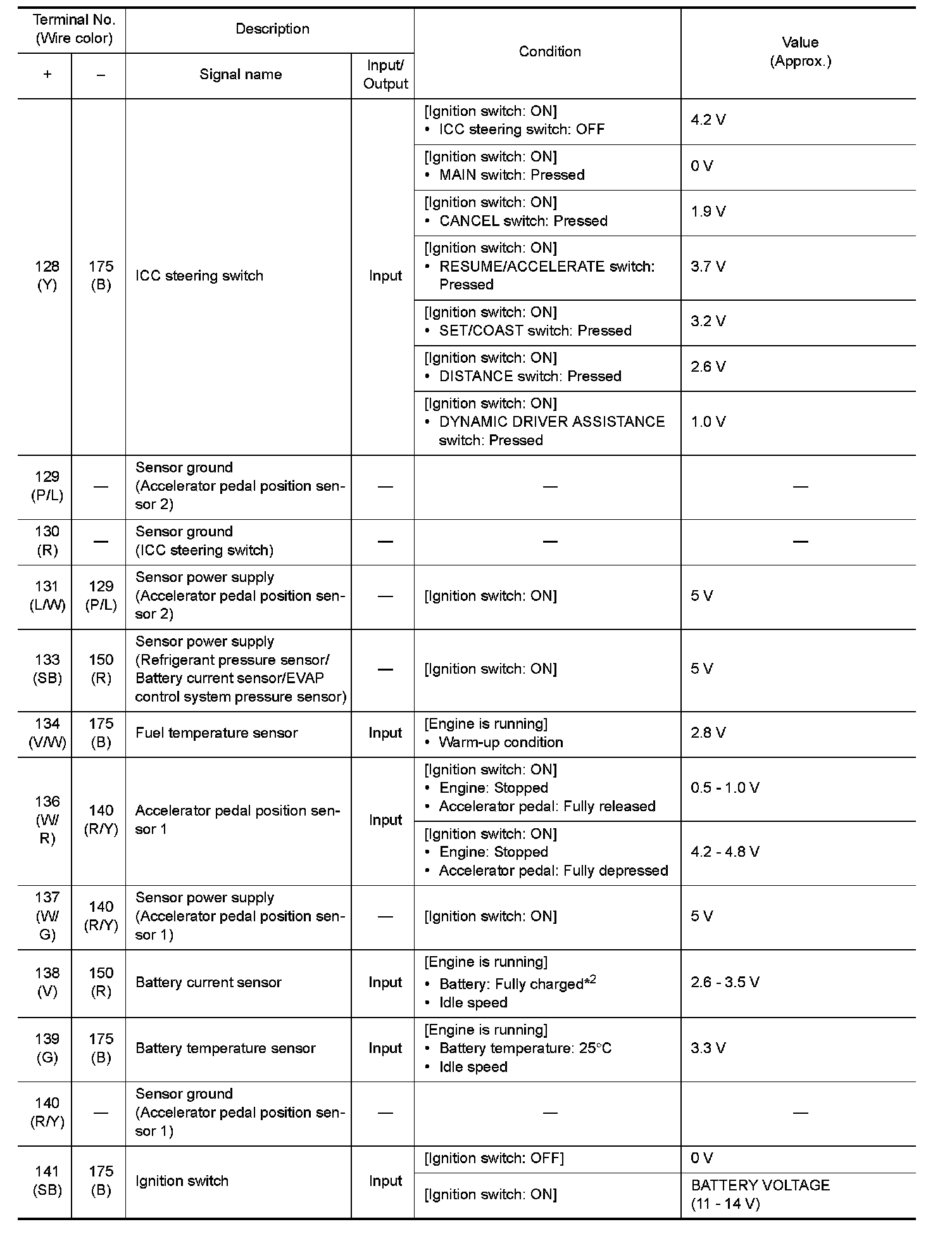

TERMINAL LAYOUT

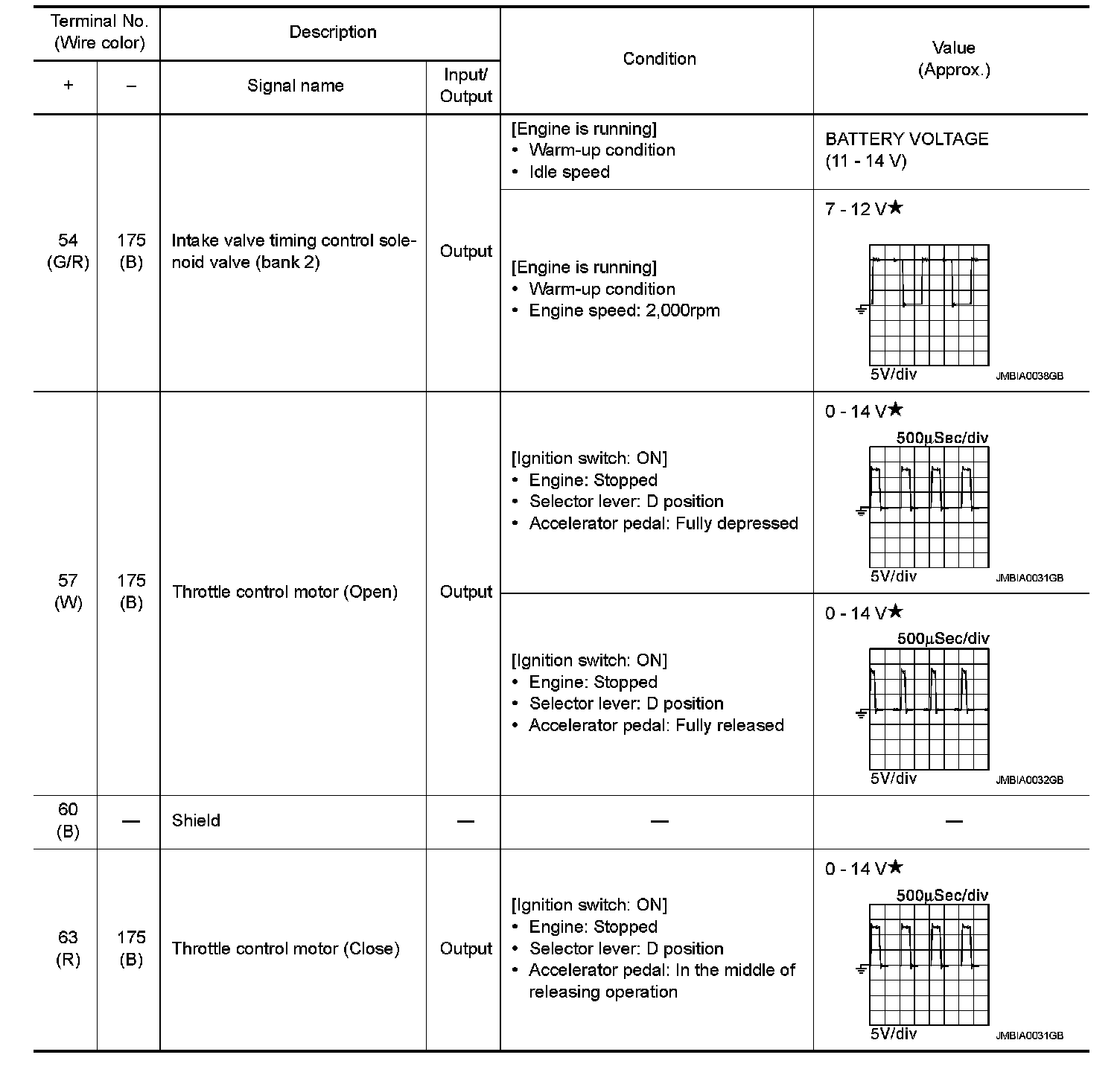

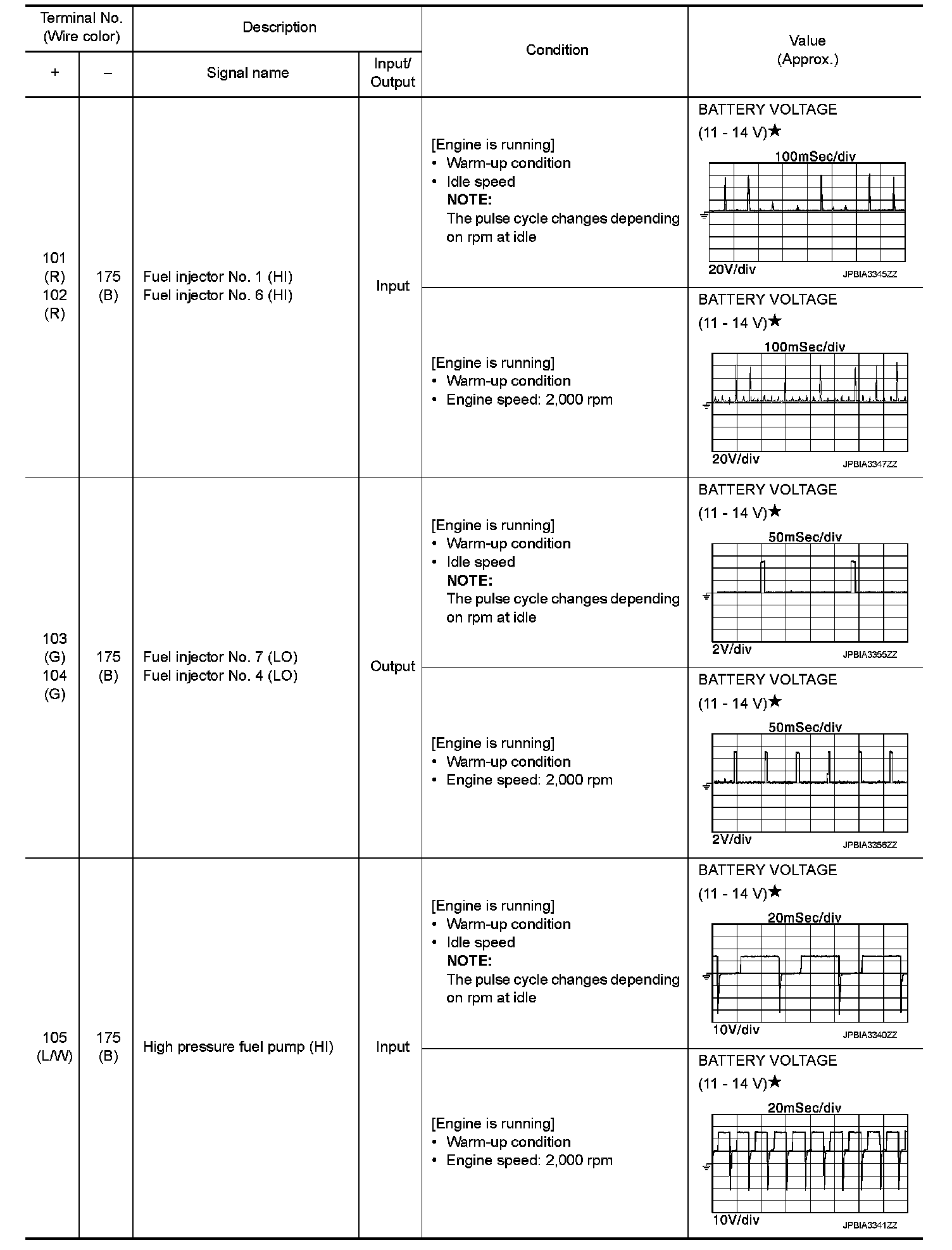

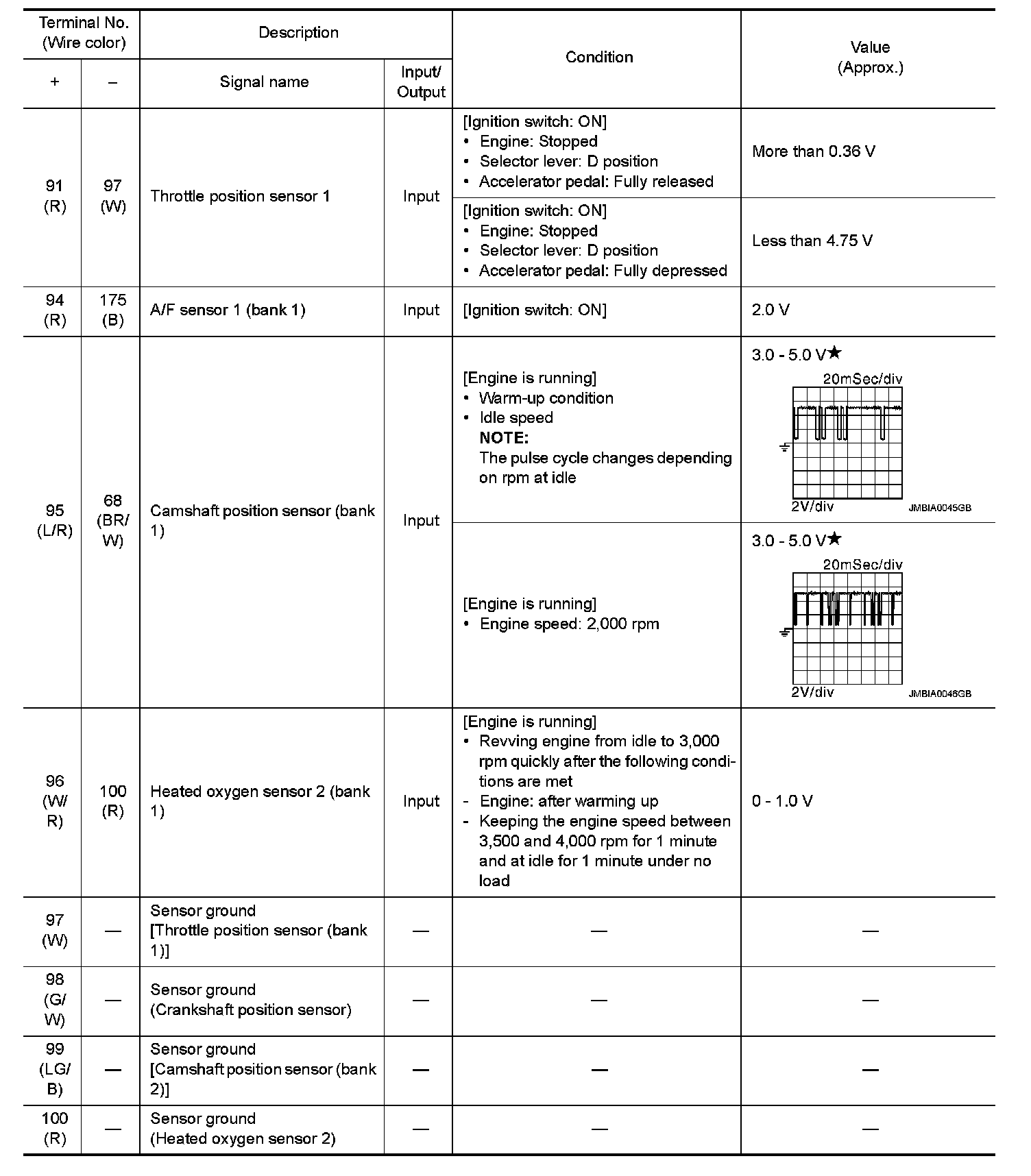

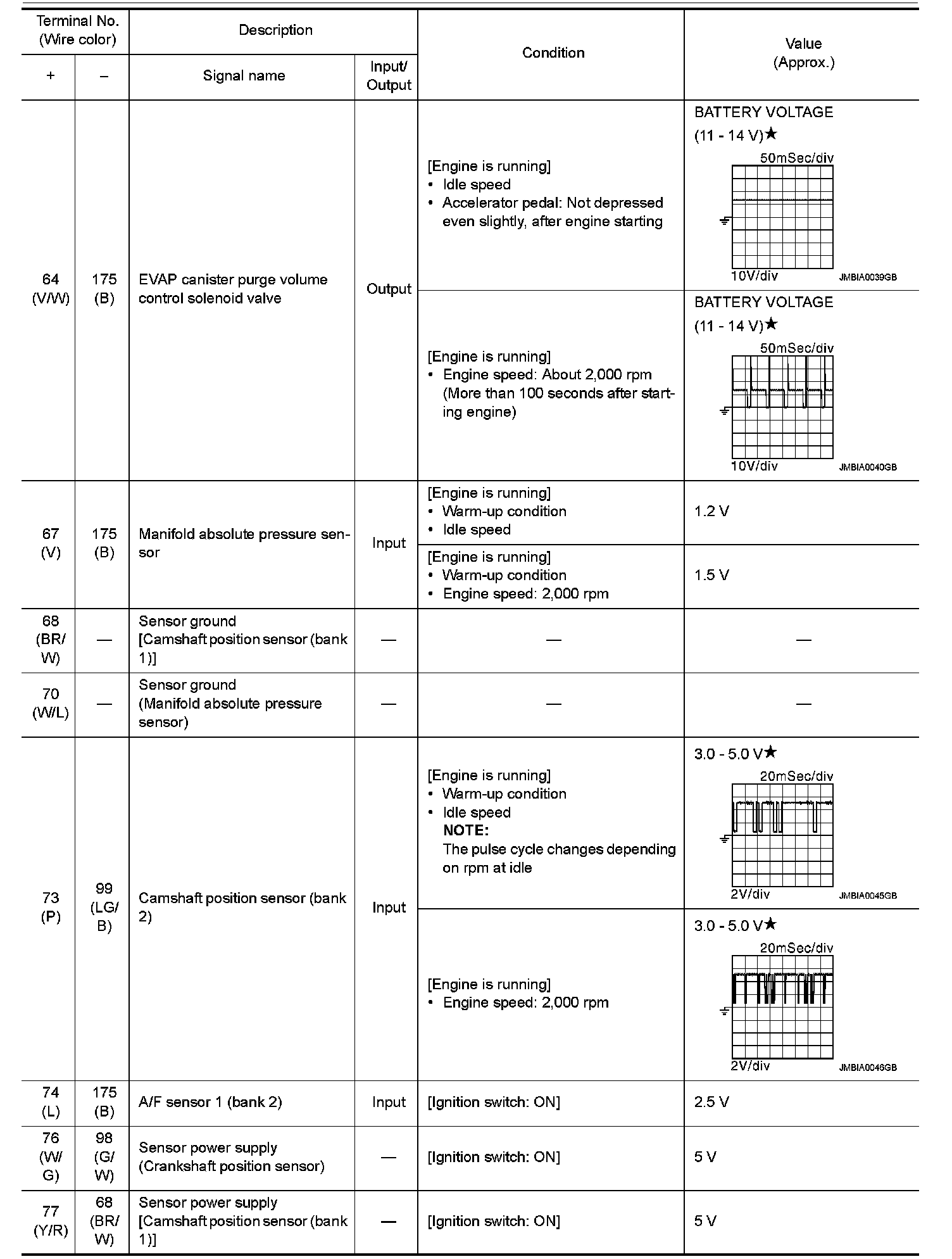

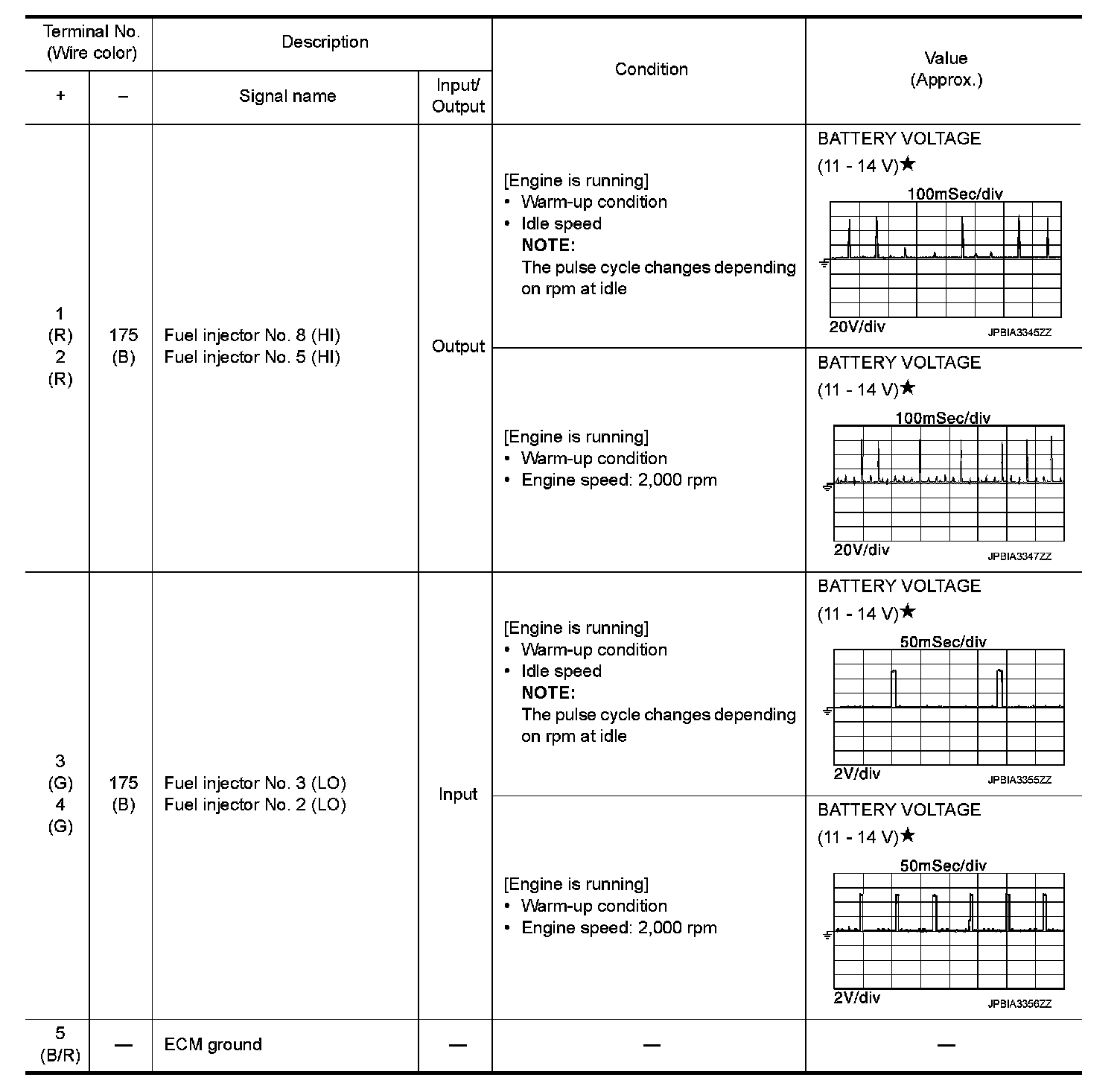

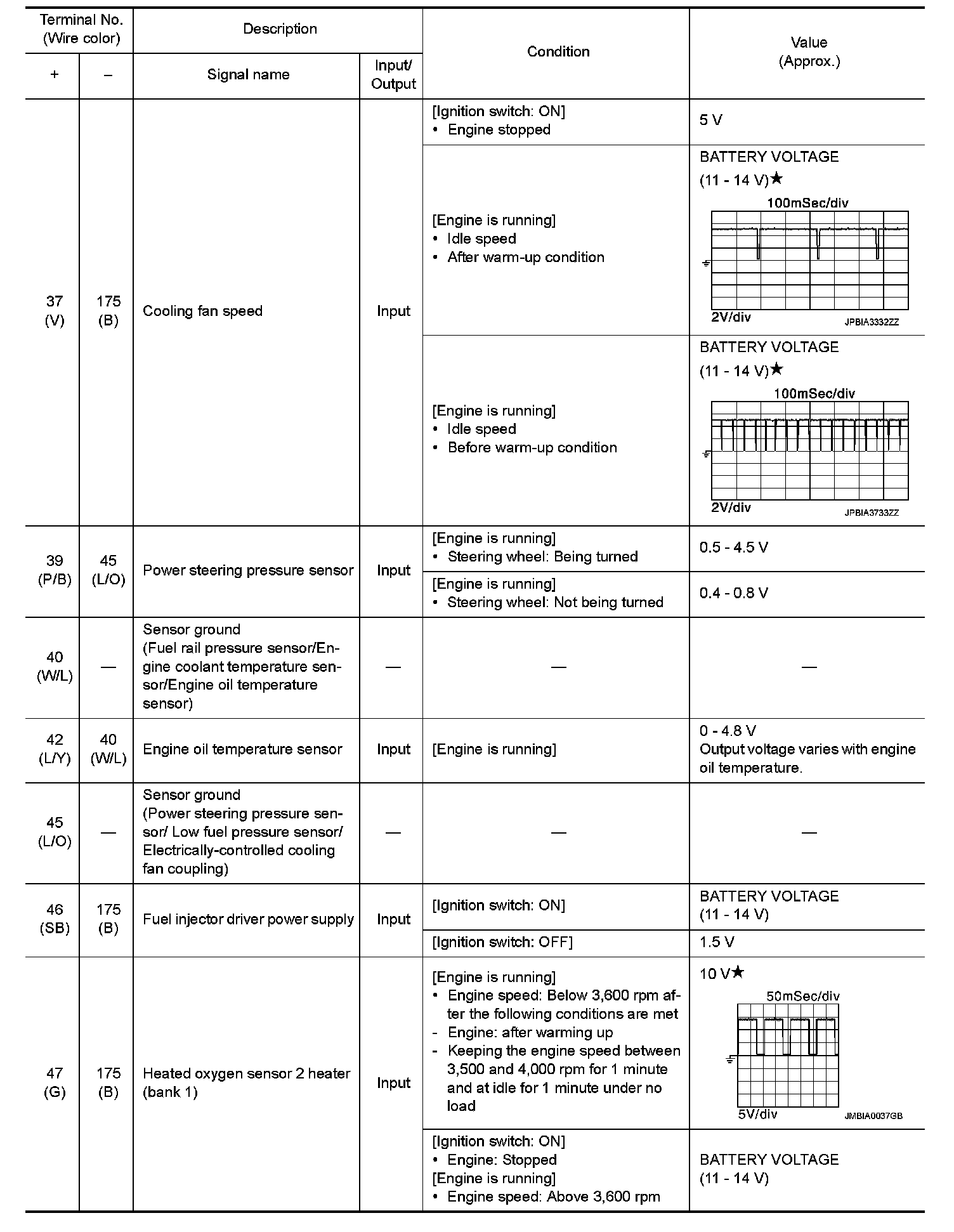

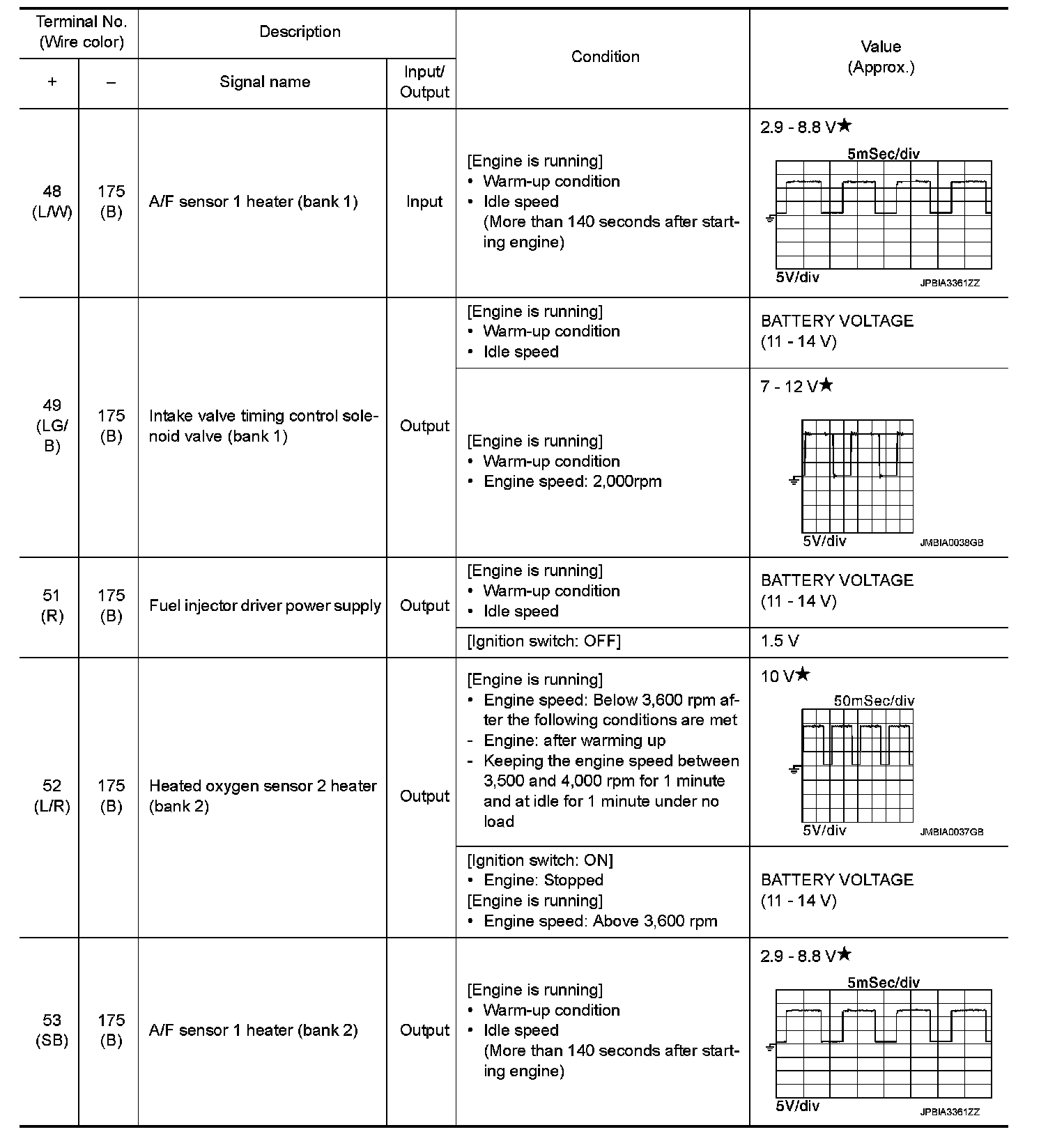

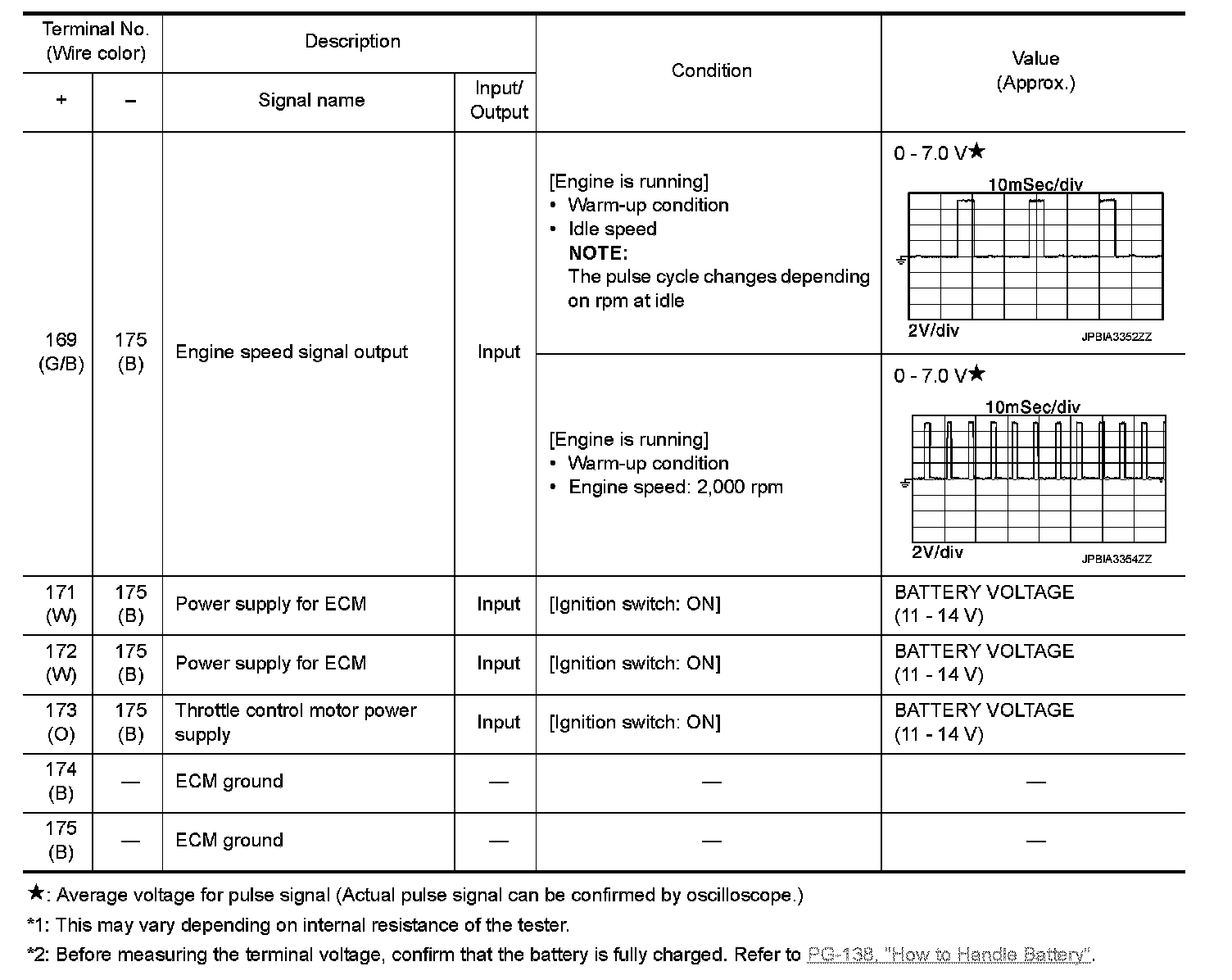

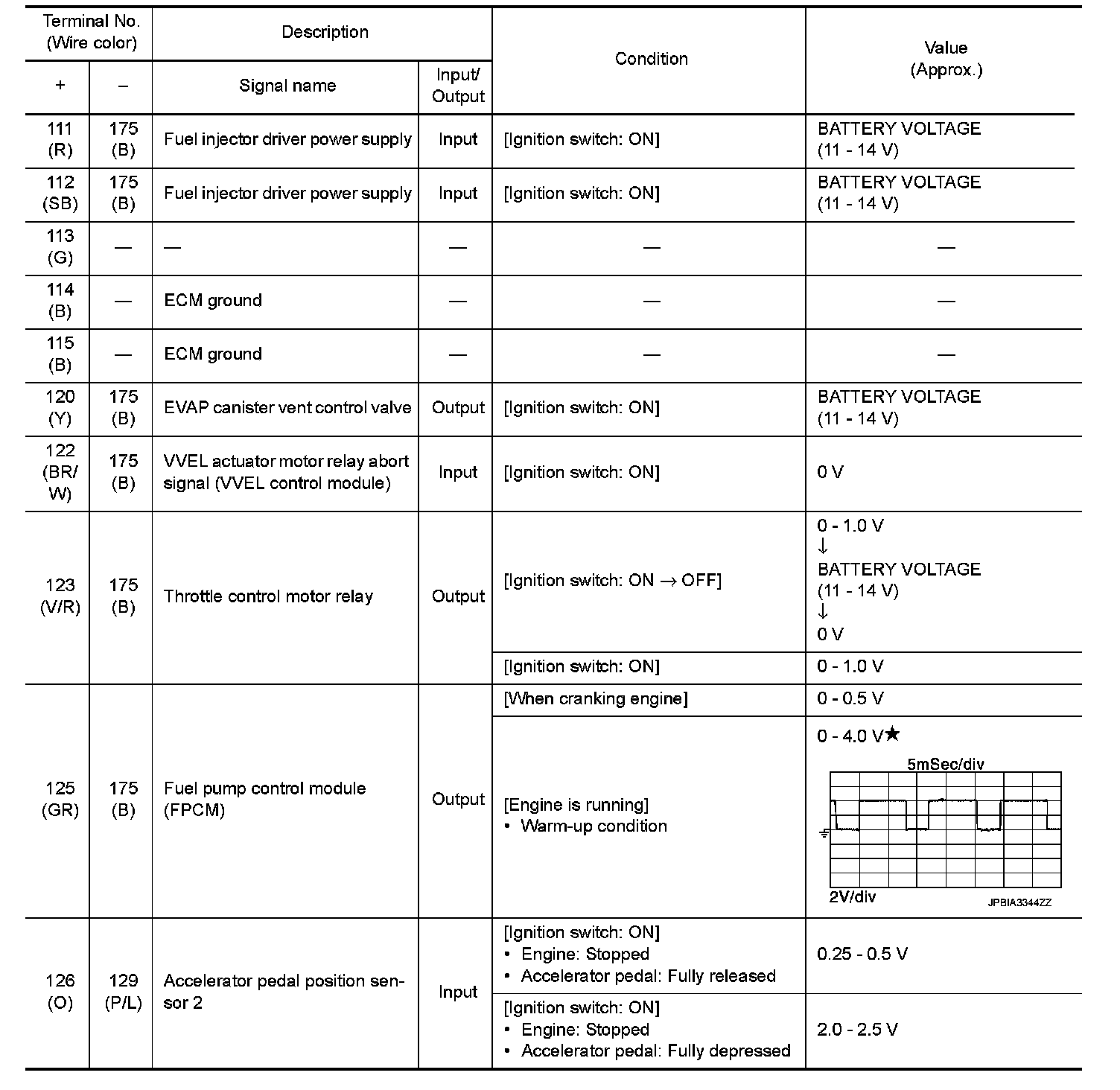

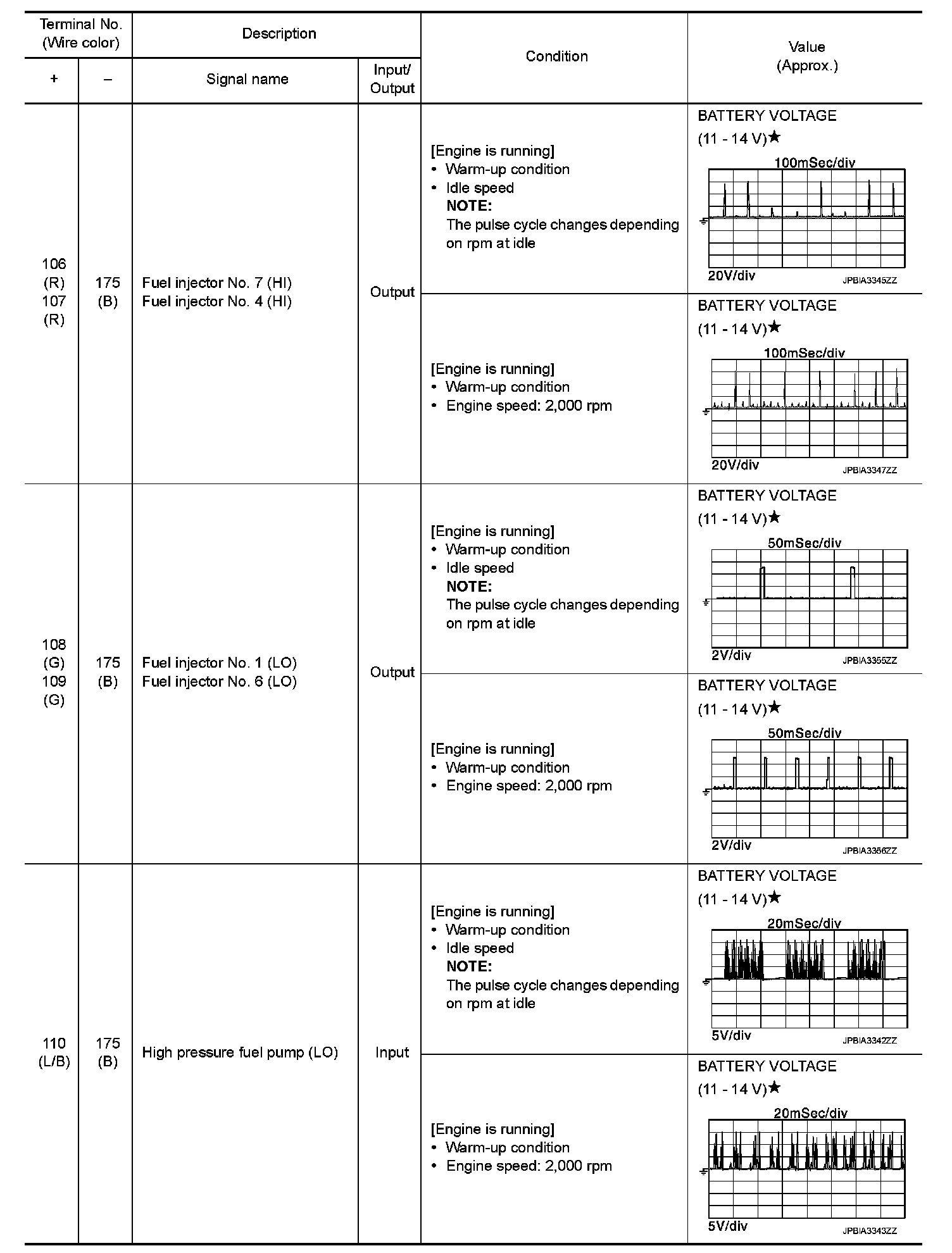

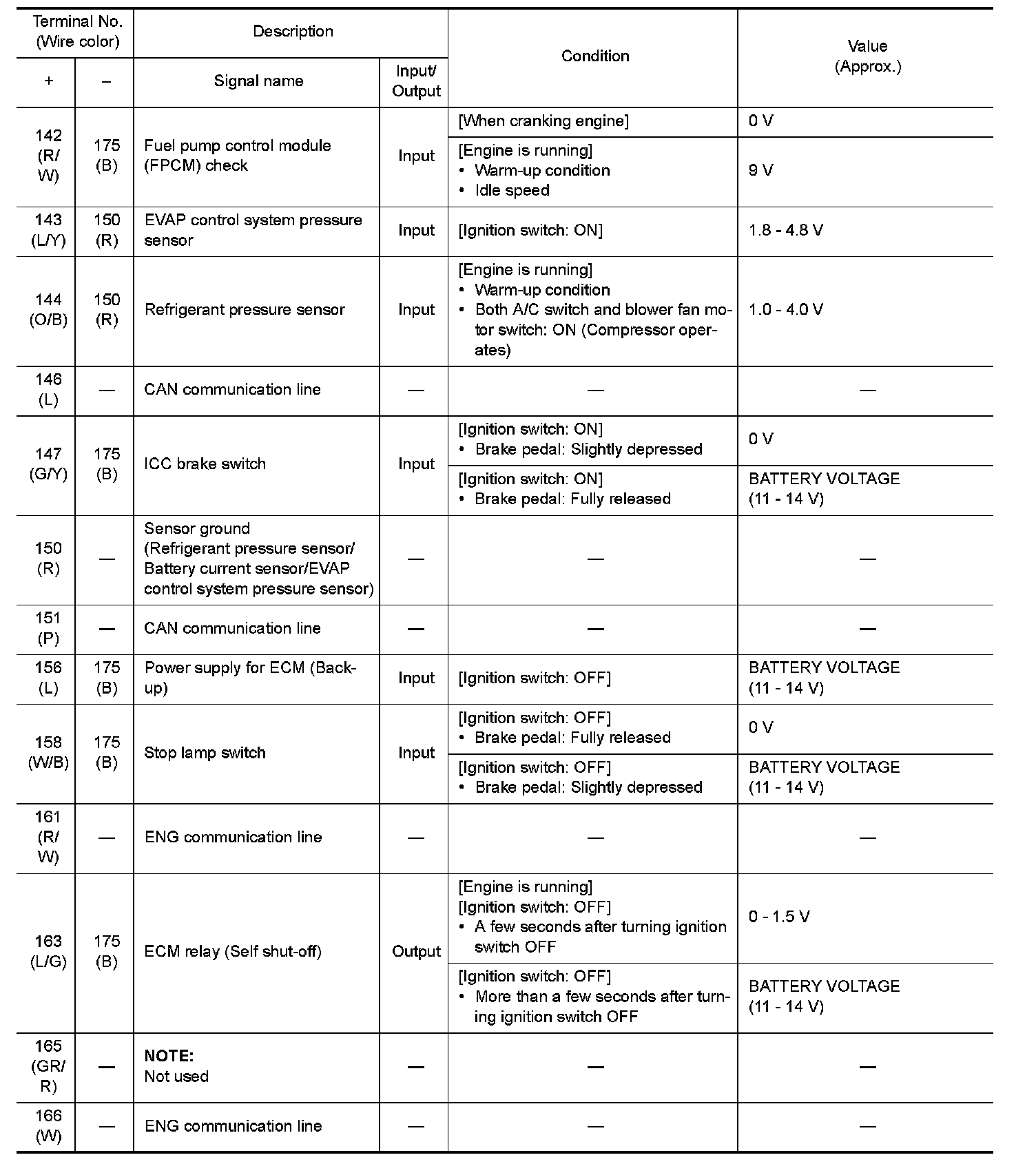

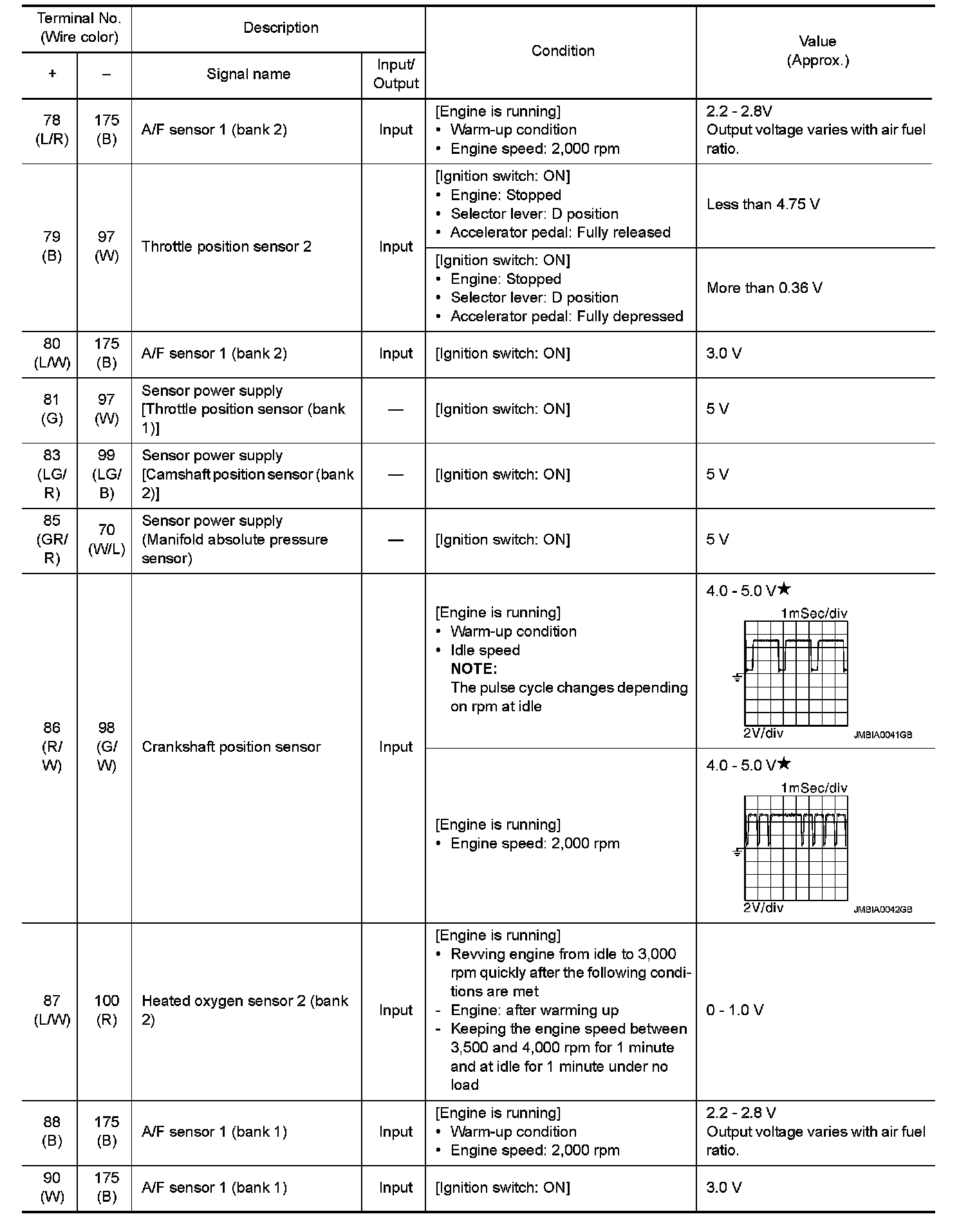

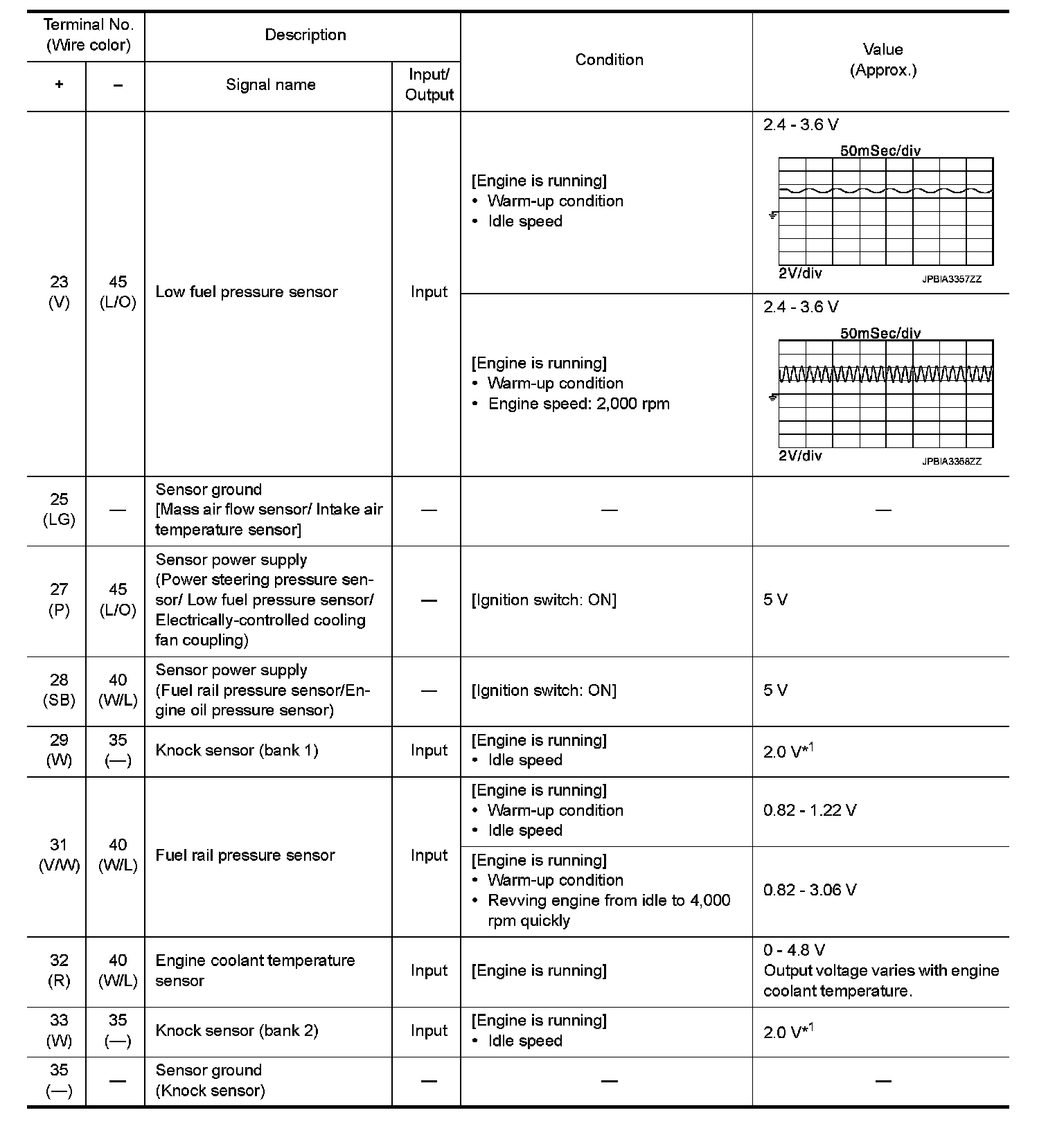

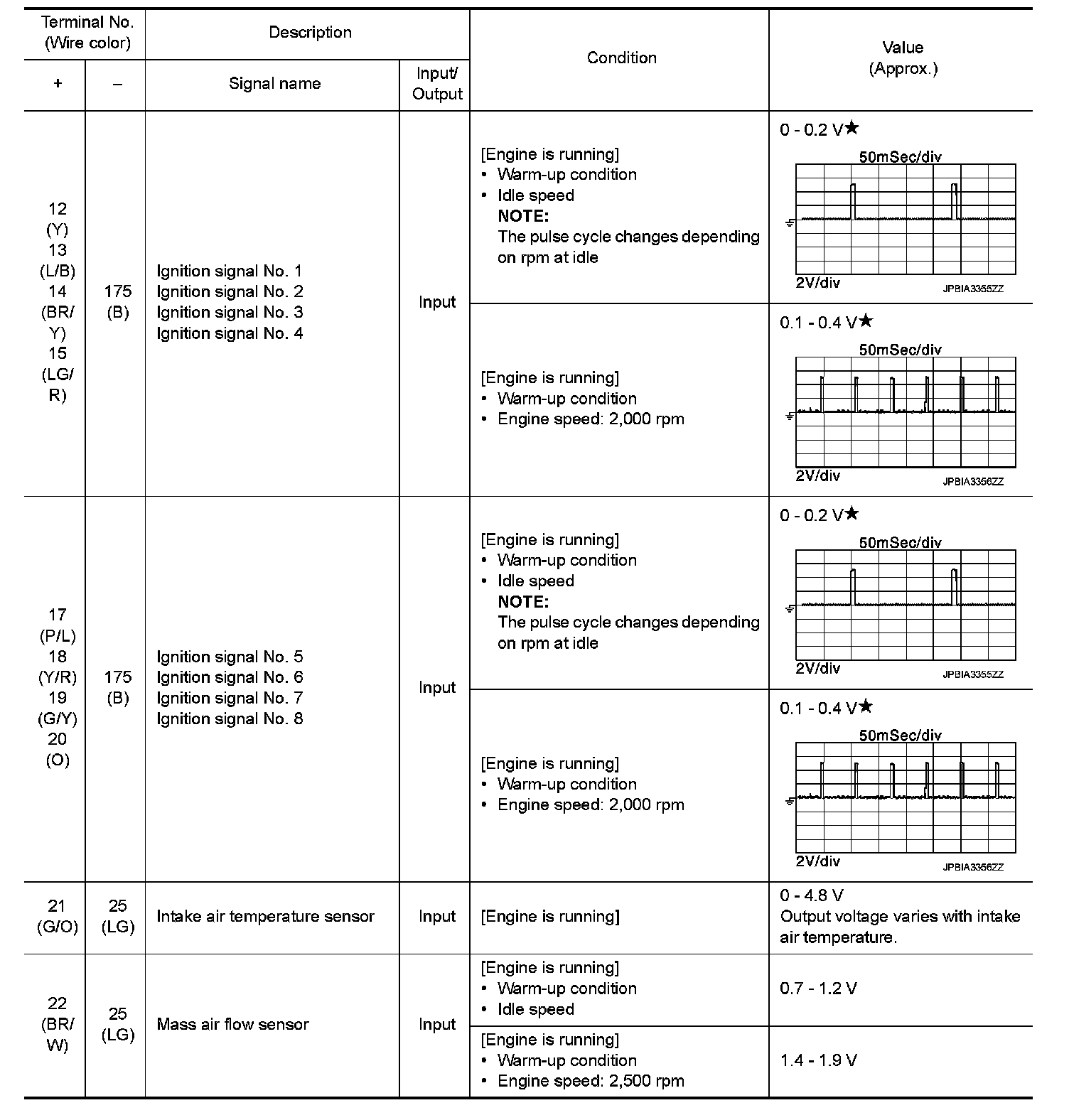

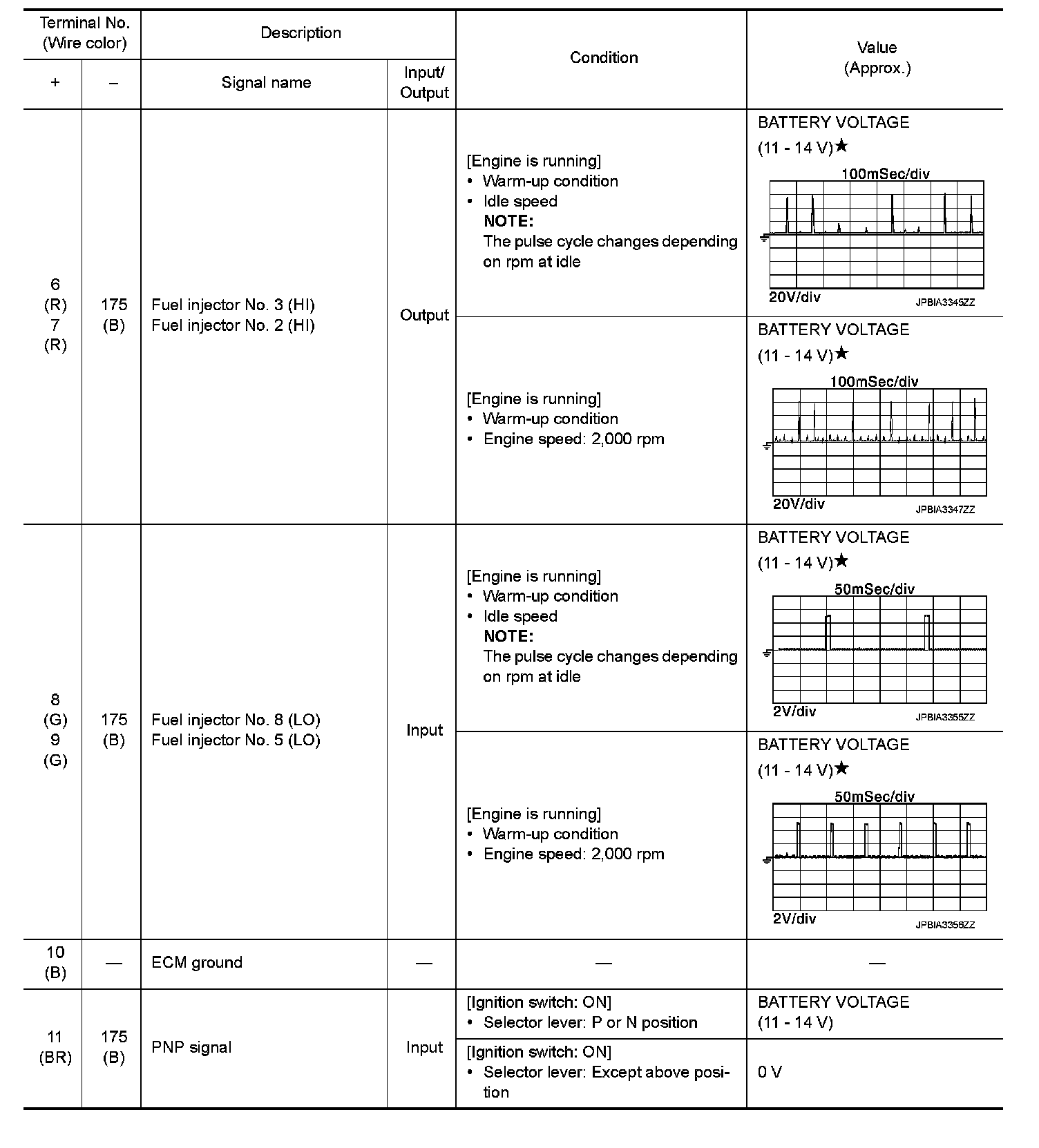

PHYSICAL VALUES

NOTE:
- Specification data are reference values and are measured between each terminals.
- Pulse signal is measured by CONSULT.
