Valve Guide: Service and Repair
1.
Using tool No. J-26512 drive out the
valve guide from the lower face of the cylinder head.

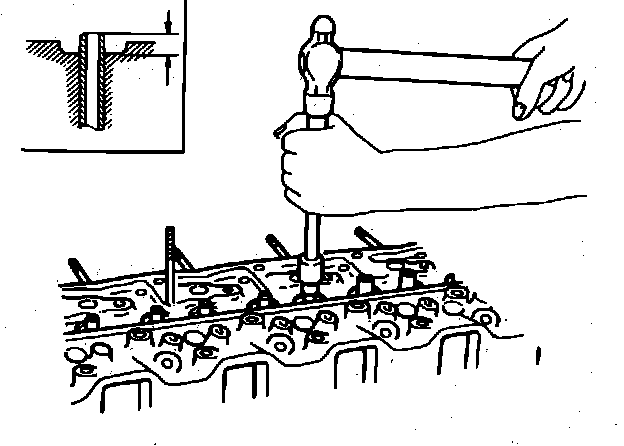

Fig. 8 Installing valve guides:
2.
Apply engine oil to outer circumference of
valve guide, then using tool No. J-26512, drive the guide into position from the upper face of the cylinder head,
Fig. 8. Always replace valve guide and valve as a set.
