Home >> Isuzu >> 1986 >> Trooper II L4-2254cc 2.3L SOHC >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse >> Locations

Fuse: Locations

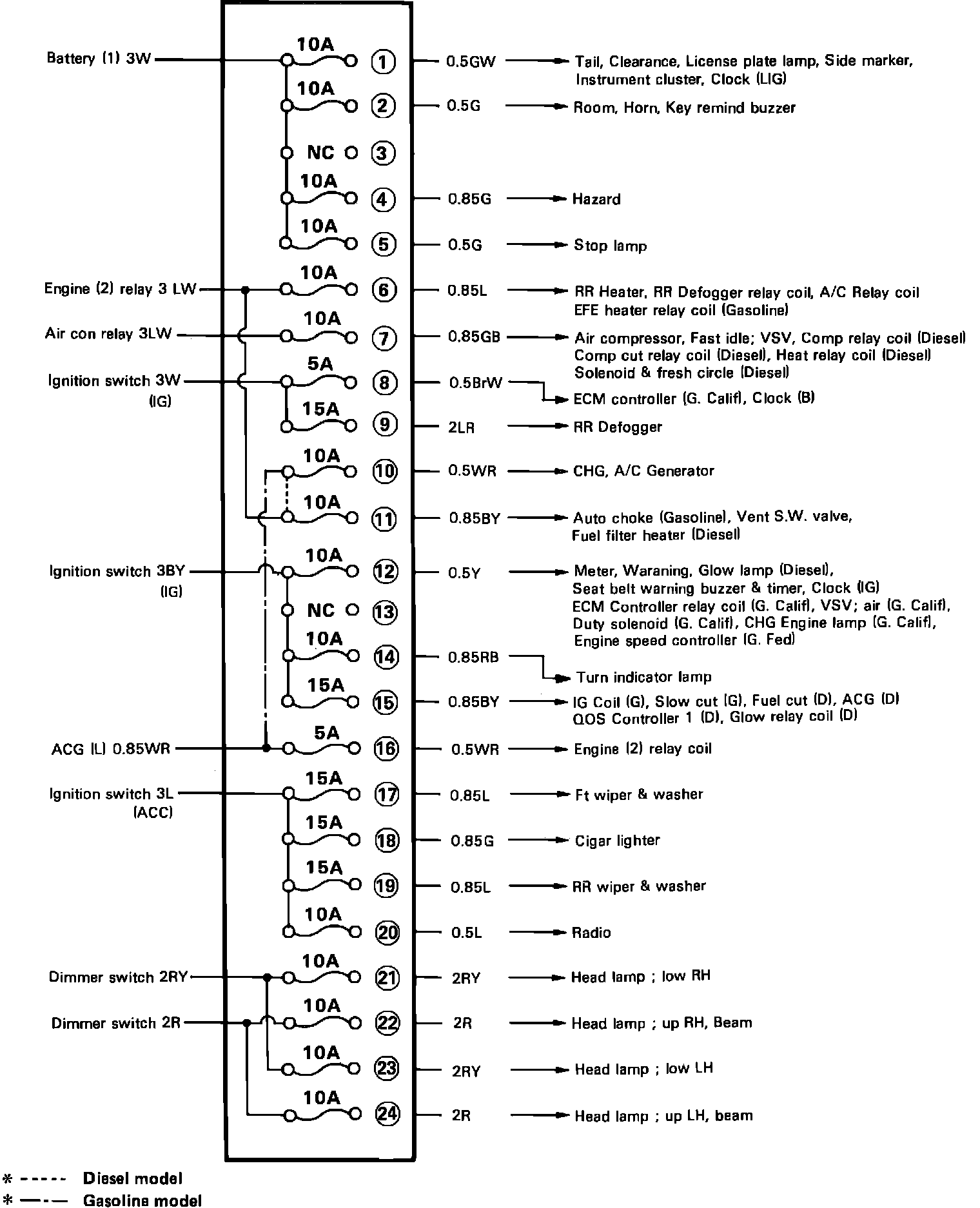

Fig. 26 Fuse Panel:
