Control Arm: Service and Repair
1. Raise and support front of vehicle.
2. Remove lower control arm-to-tension rod attaching nuts and bolts.
3. Remove control arm-to-body attaching bolt and nut.

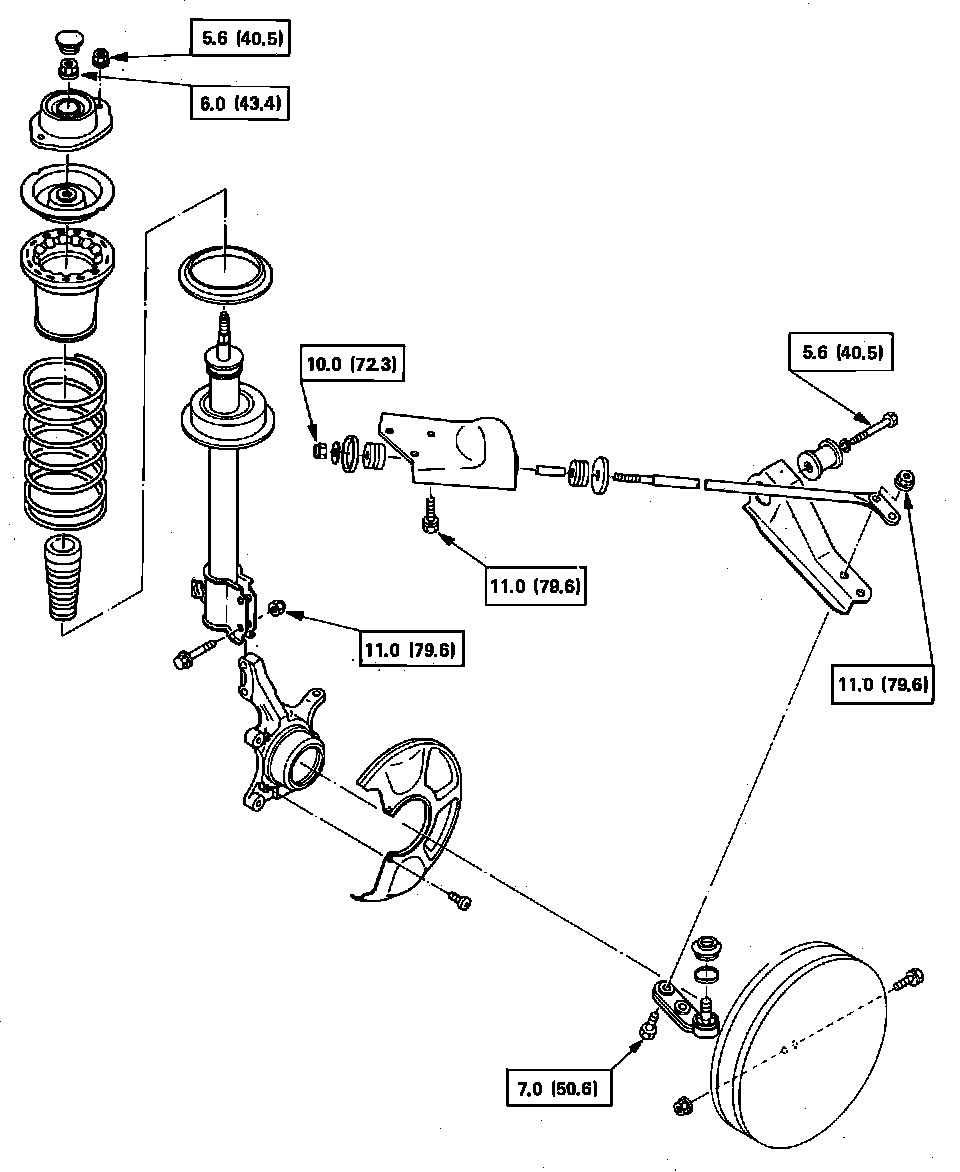

Fig. 1 Front suspension components:
4. Remove control arm, Fig. 1.
5. Reverse procedure to install, noting the following.
a. Replace self-locking nuts when installing arm.
Fig. 10 Setting control arm height:
b. When attaching control arm to body, first jack up lower part of arm to 15.2 inches, Fig. 3, then torque attaching bolts to specifications, Fig. 1
