Auto A/C

PART 1

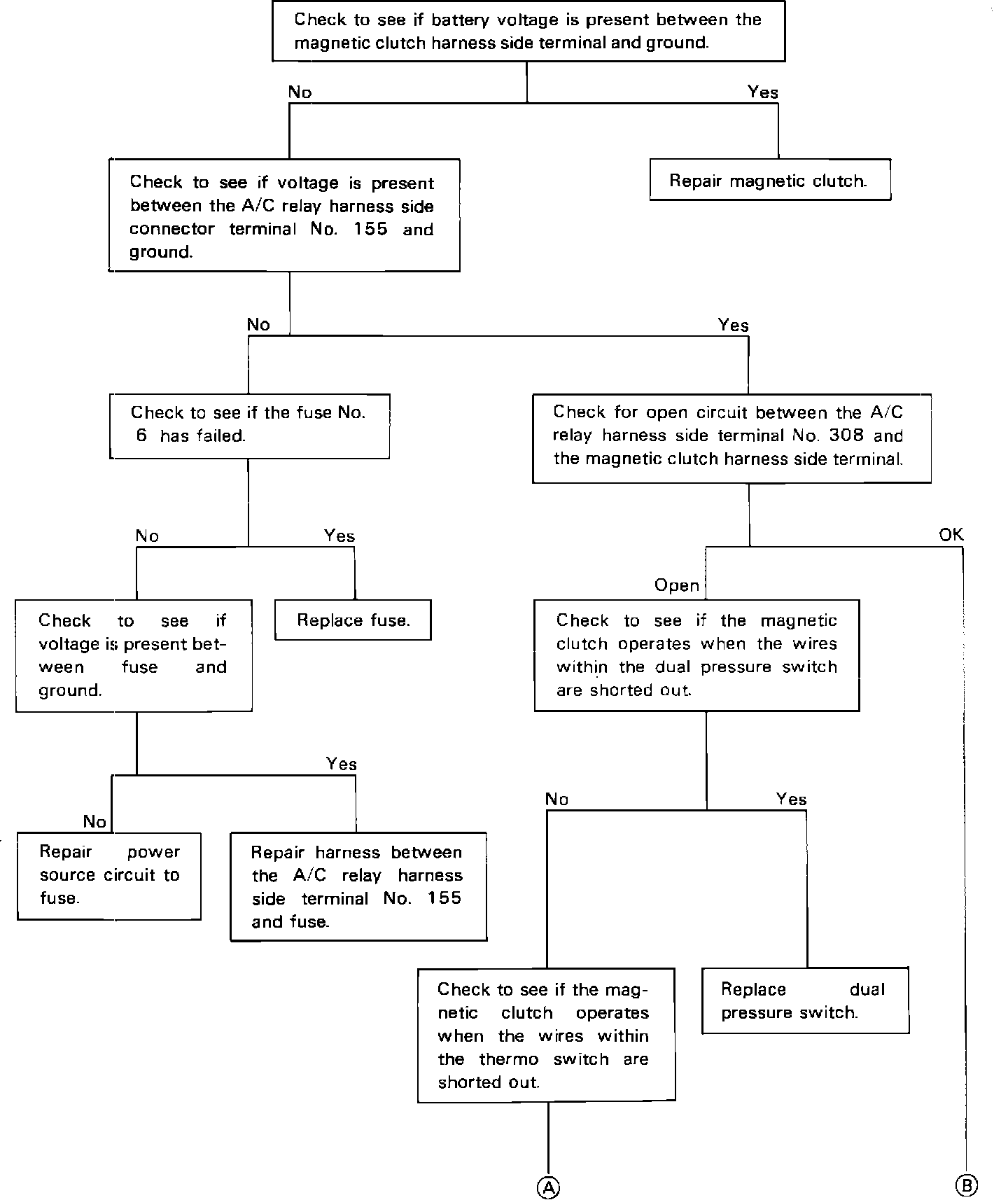

Magnetic Clutch Inoperative (Part 1):






PART 2

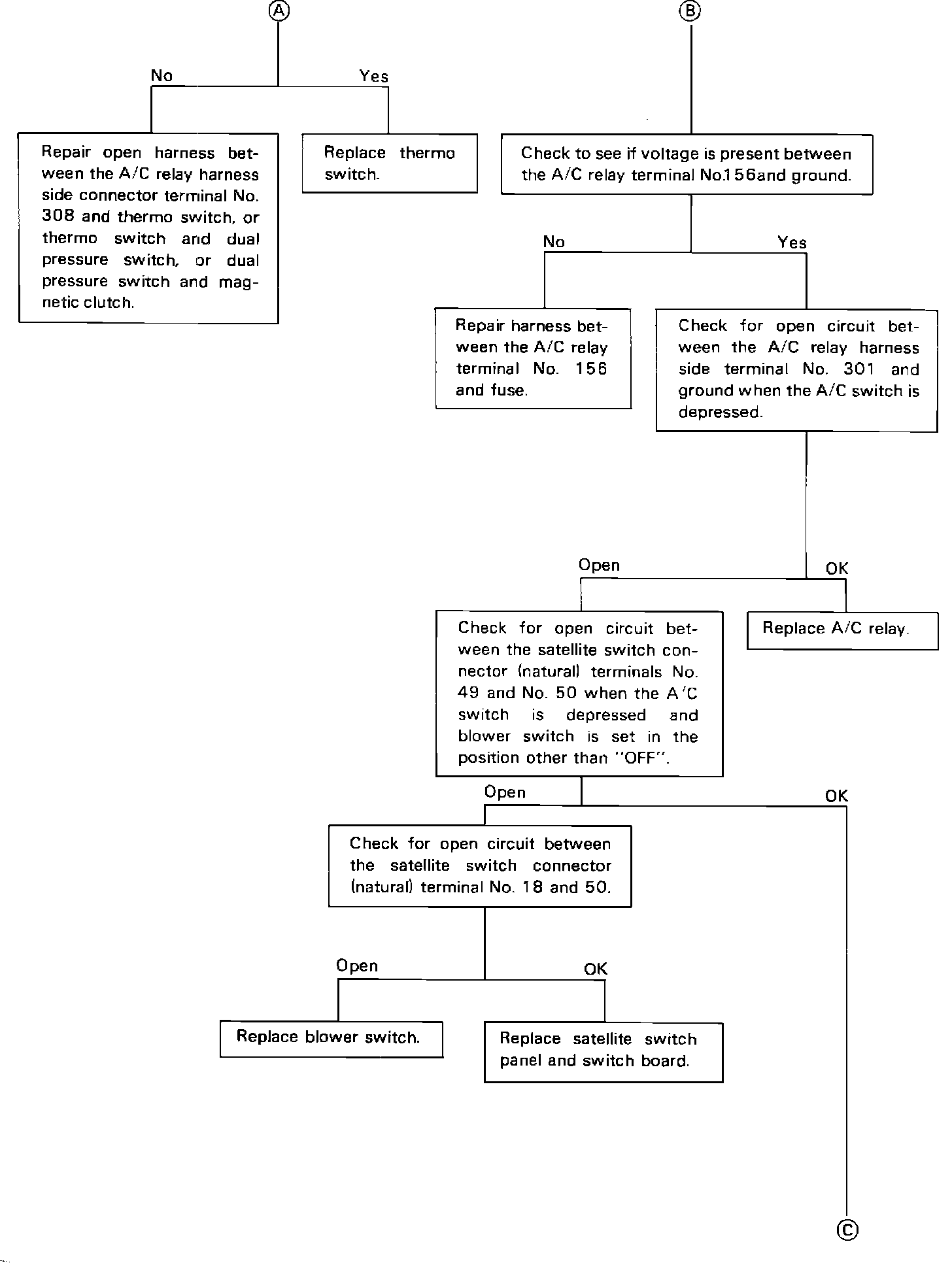

Magnetic Clutch Inoperative (Part 2):






PART 3

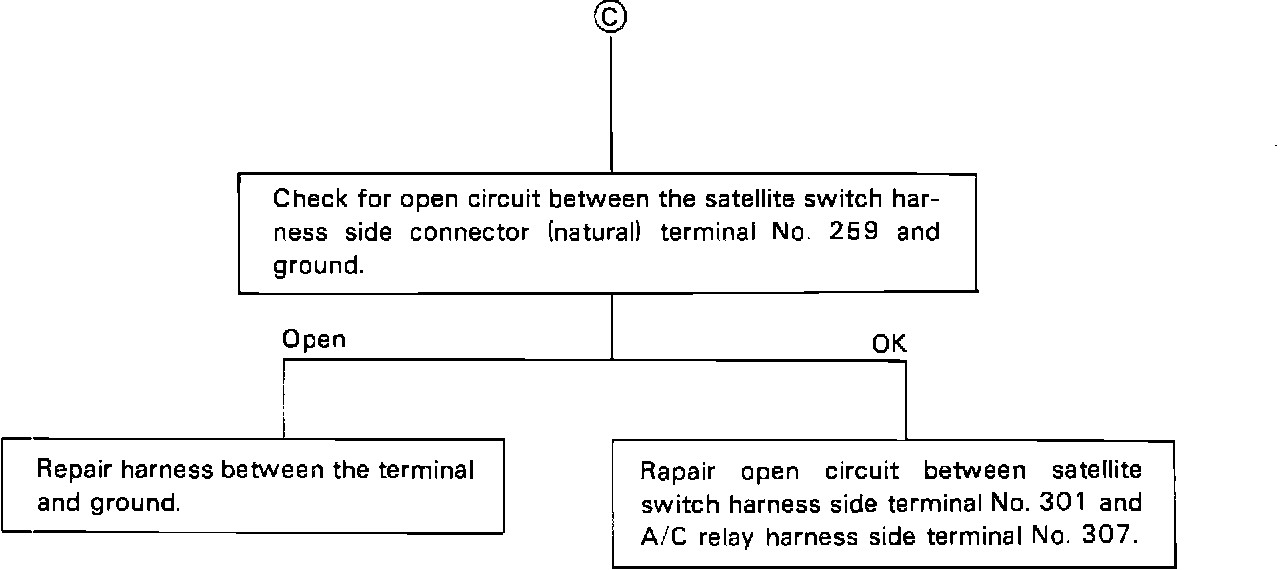

Magnetic Clutch Inoperative (Part 3):






Magnetic clutch will not engage when high side pressure falls below 28 psi or rises above 384 psi.
