Fuel Pump: Service and Repair

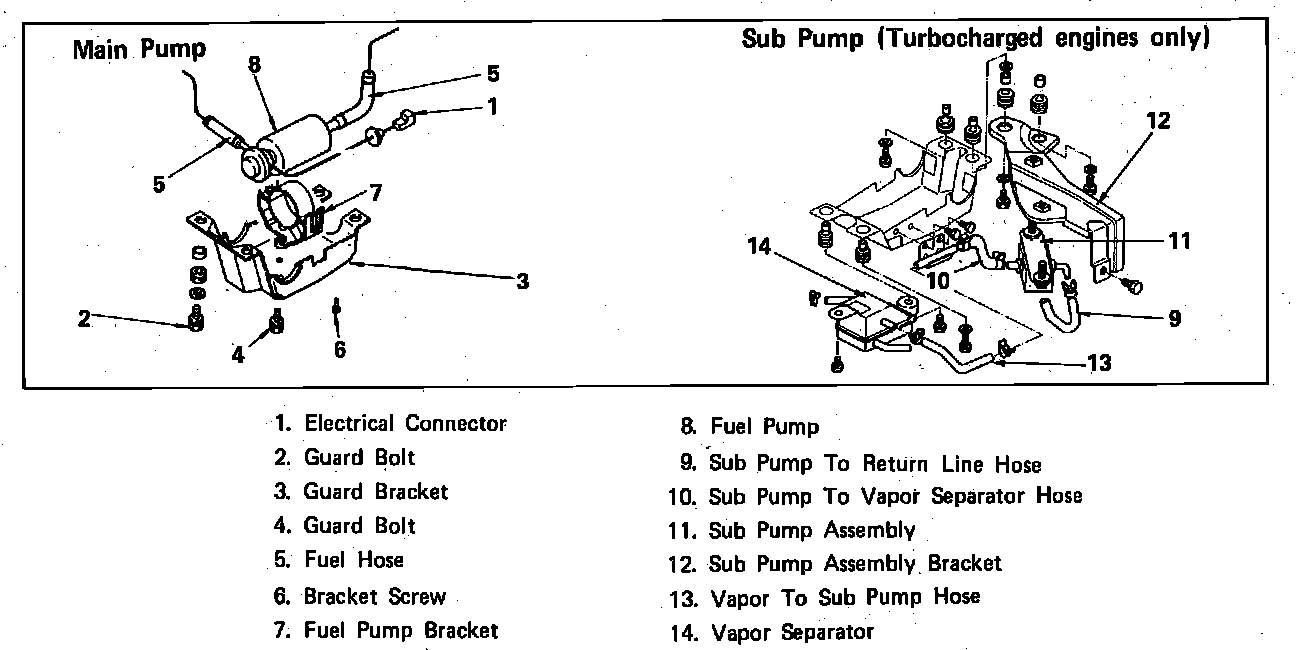

Fig. 23 Removal and Installation of Fuel Pump:

Refer to Fig. 23 for removal and installation of fuel pump.



I-MARK W/FWD TURBOCHARGED MODELS & IMPULSE & TROOPER II

Caution:
The fuel lines are under pressure. When removing fuel lines, cover hose to be removed with a shop towel to prevent spraying of gasoline.

1. Disconnect battery ground cable.
2. Remove all electrical connectors and hoses from fuel tank.
3. Drain fuel tank by removing plug from tank.
4. Supporting fuel tank with suitable jack, remove two belt to body attaching bolts, then remove fuel tank.
5. Remove fuel pump from fuel tank.
6. Reverse procedure to install.
