Air Flow Meter/Sensor: Testing and Inspection

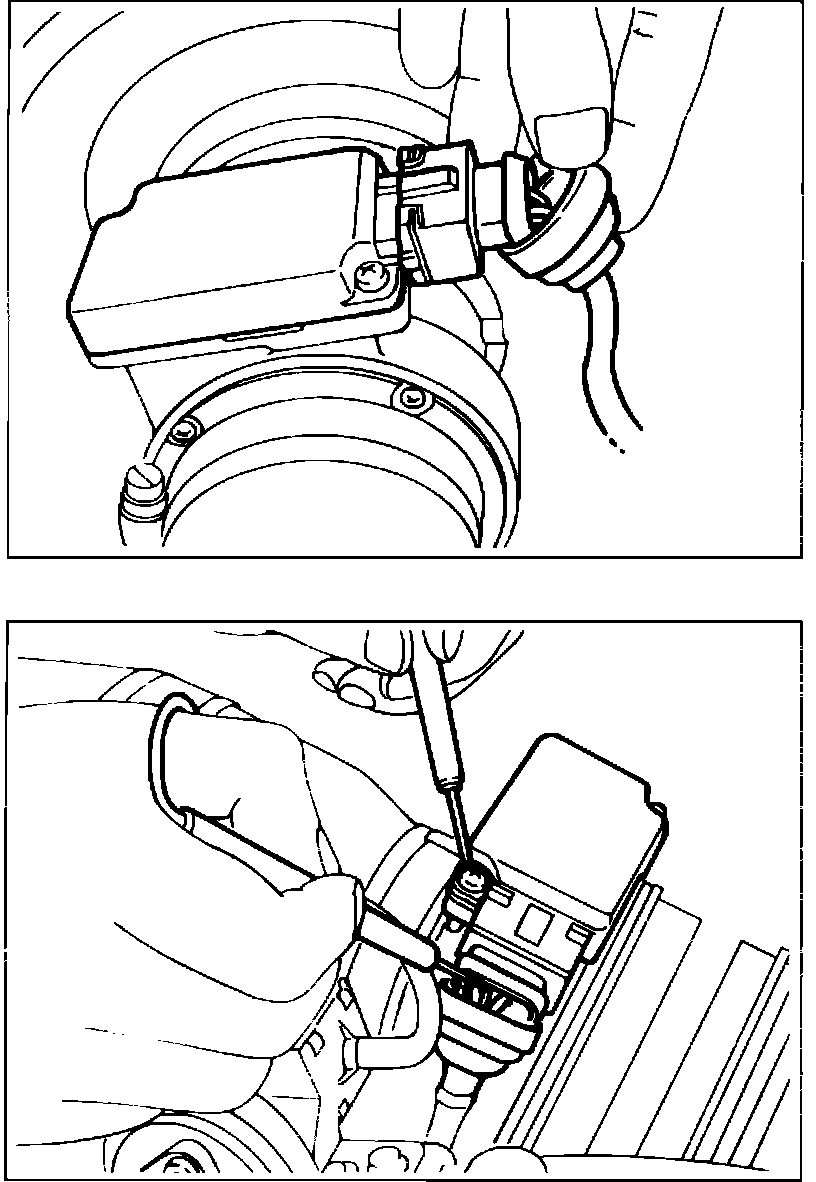

Fig. 208 Inspection of Air Flow Sensor:

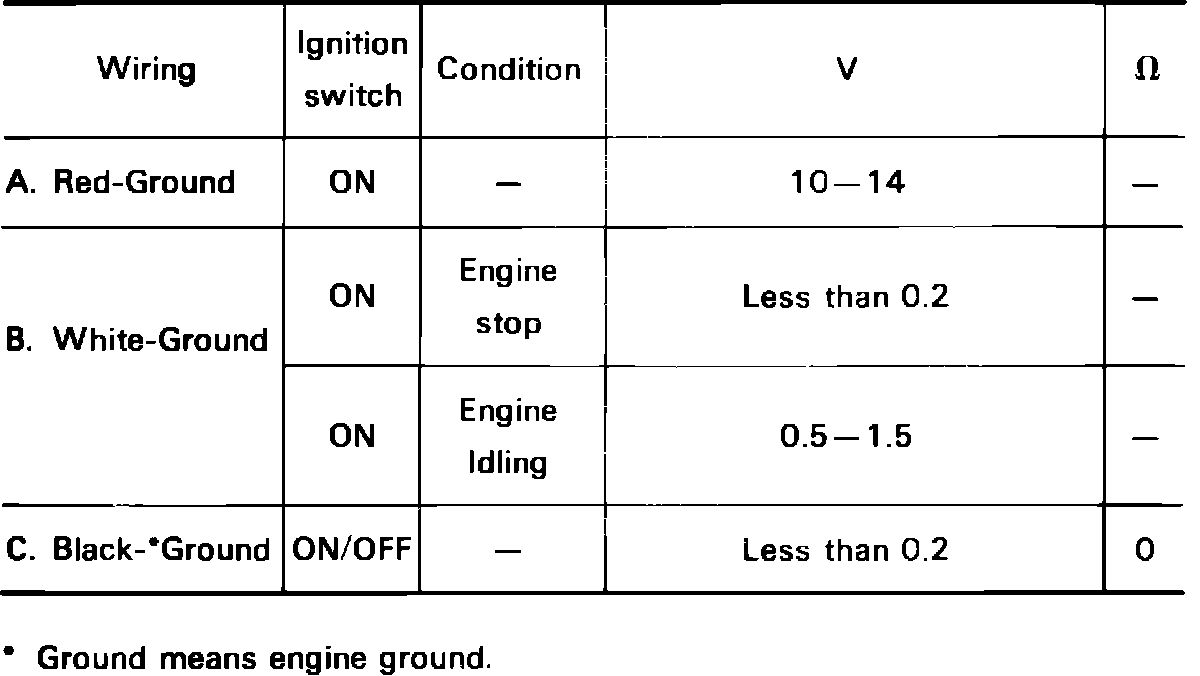

Fig. 209 Air Flow Sensor Specifications:
1.
Partly raise the sealing gasket on the air flow sensor side of the harness connector,
Fig. 208. 2.
Insert tester probes and test according to specification chart,
Fig. 209
