EGR Temperature Sensor: Testing and Inspection

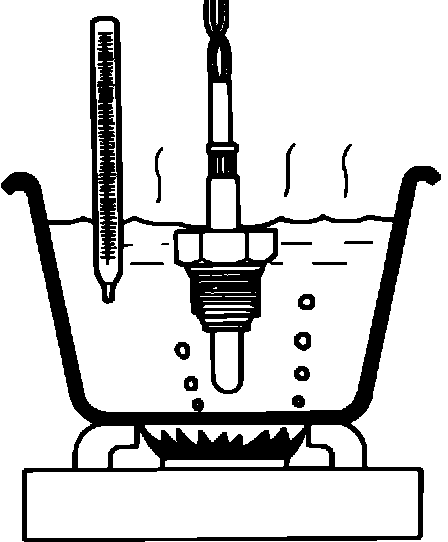

Fig. 216 Testing EGR Temperature Sensor:

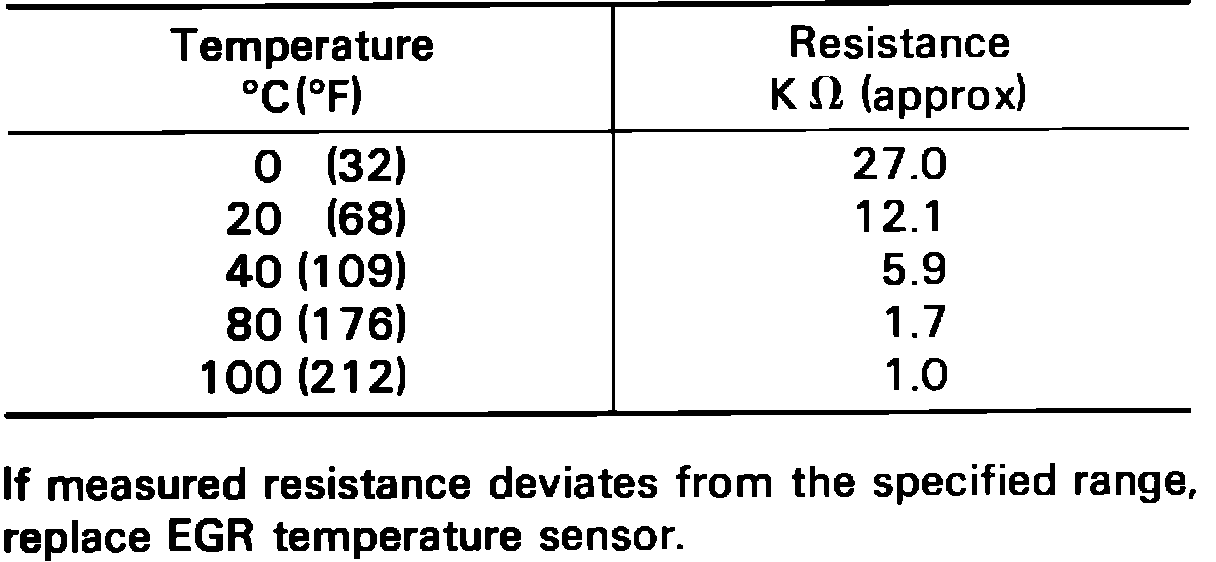

Fig. 217 EGR Temperature Sensor Specifications:
1.
Heat EGR sensor Fig. 216 to a known value as indicated in the specification chart Fig. 217. If measure resistance is different that specified range, replace the EGR sensor.
