Electronic Spark Timing (EST) System
This is a test of the High Energy Ignition (HEI) system and not specific to the EST system. However, it will permit the technician to diagnose the ECM controlled HEI system, including components directly related to the EST system of timing control.

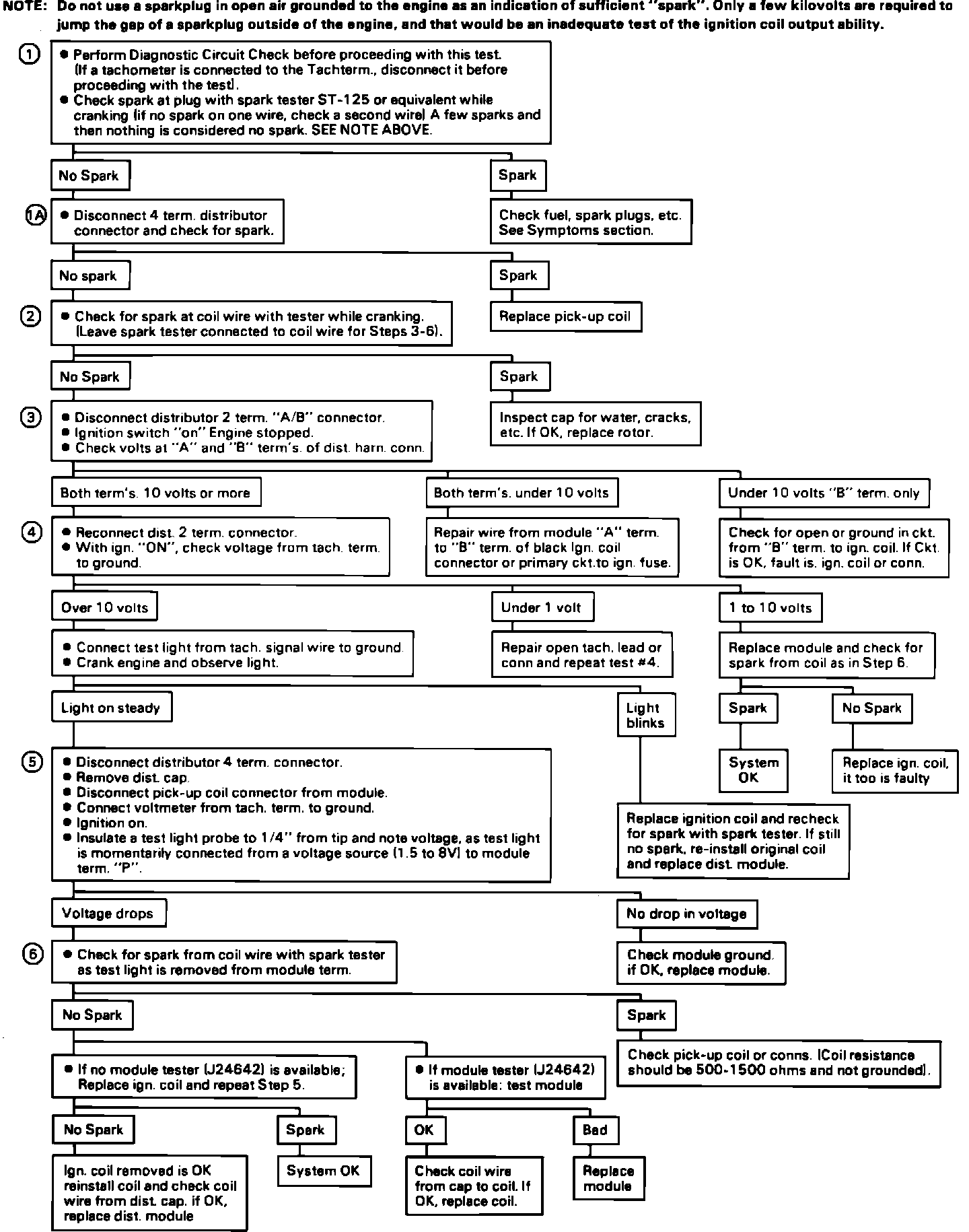

DIAGNOSTIC CHARTIgnition System Diagnostic Chart:

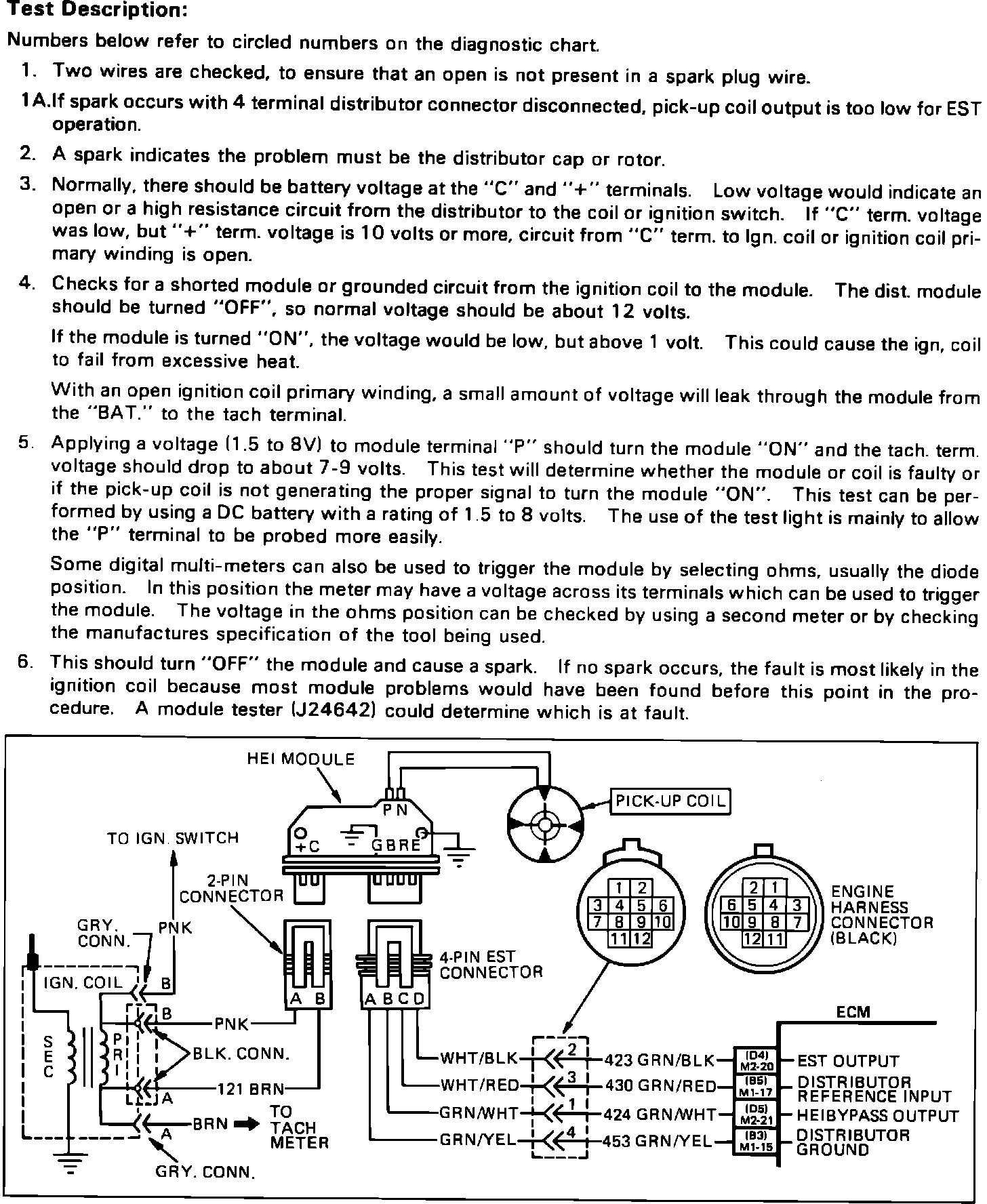

TEST DESCRIPTIONIgnition System Test Description:
