Front Wheel Sensor

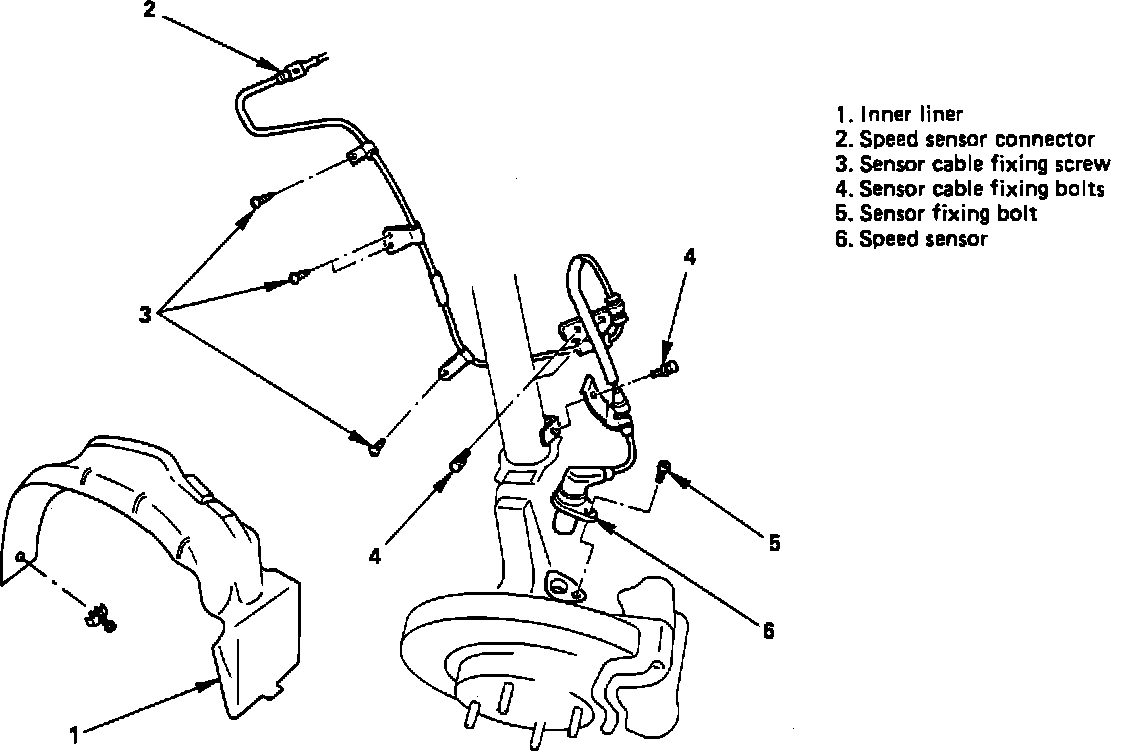

Fig. 84 Front speed sensor & related components.:

This component is non-serviceable and must be replaced as a unit, do not try to disassemble components.
1. On Impulse models, remove inner liner, Fig. 84.
2. On all models, disconnect speed sensor wiring connector.
3. Remove sensor cable fixing screw.
4. Remove sensor cable fixing bolts.
5. Remove sensor fixing bolt, then sensor.
6. Reverse procedure to install, noting the following:
a. Torque sensor fixing bolt to 5 ft. lbs.
b. Check clearance between speed sensor pole piece and sensor rotor, clearance should be 0.0079 to 0.0315 inches.
