Engine Control Module

Part 1 of 3

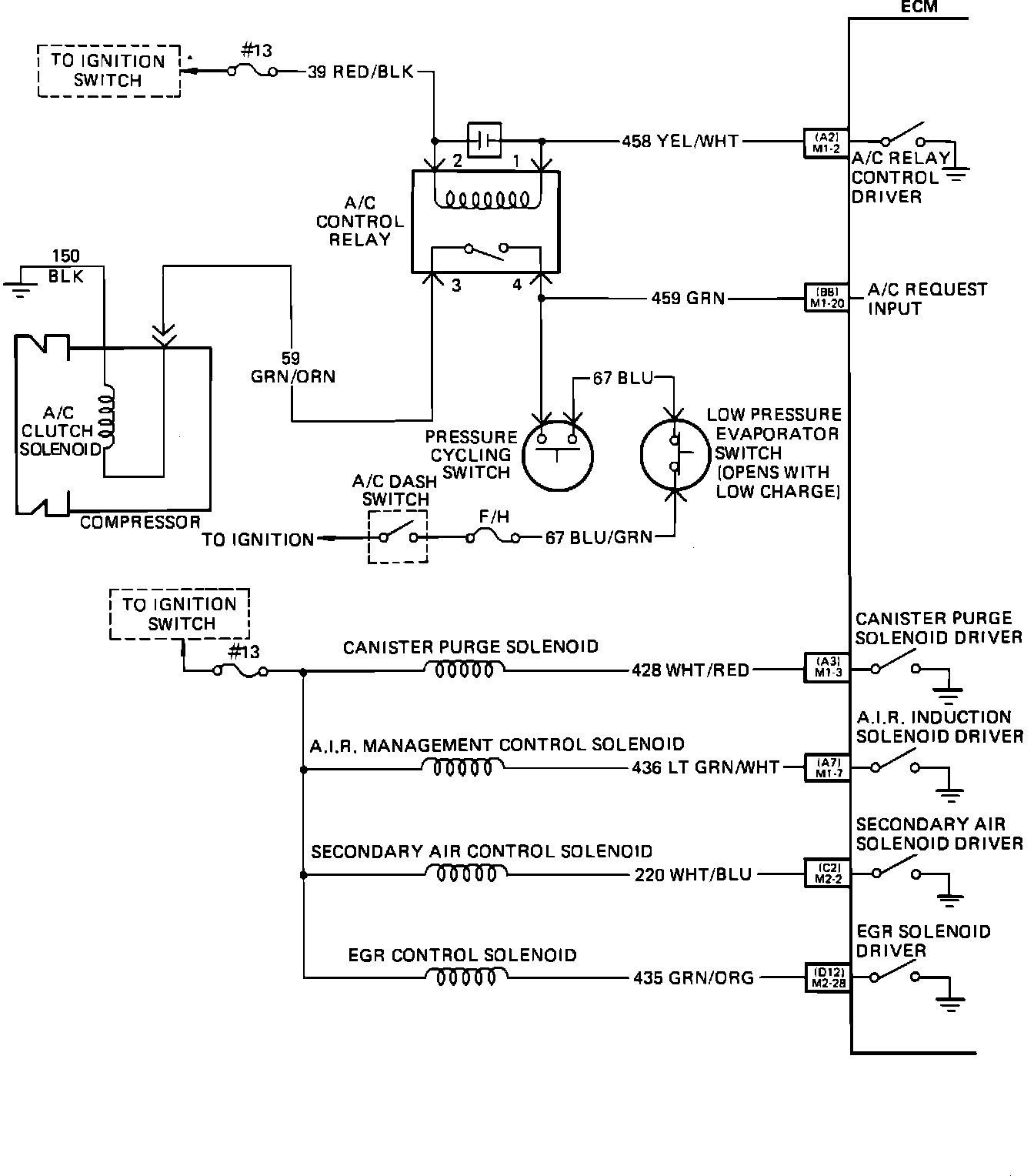

ECM Wiring Diagram (Part 1):

Part 2 of 3

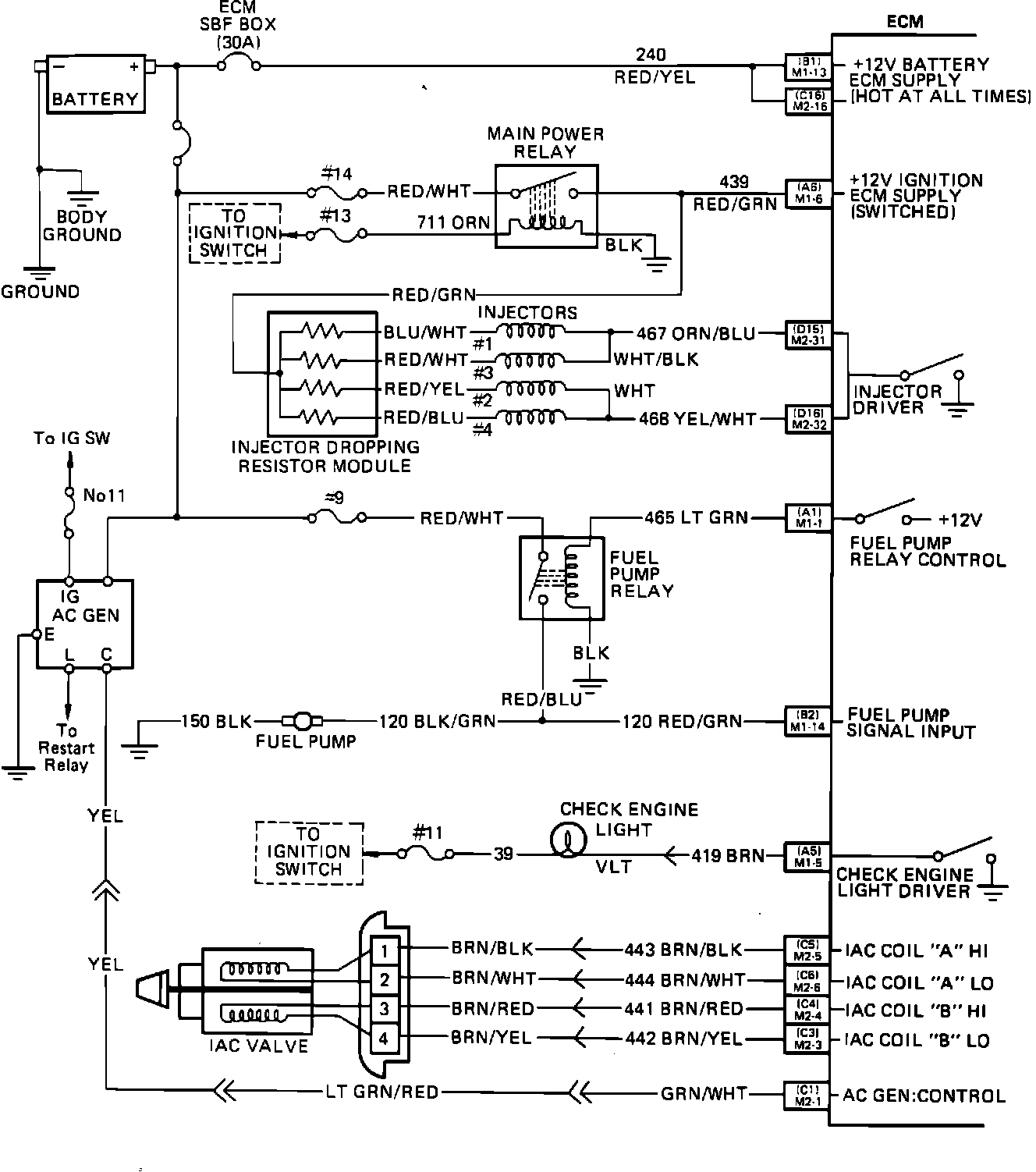

ECM Wiring Diagram (Part 2):

Part 3 of 3

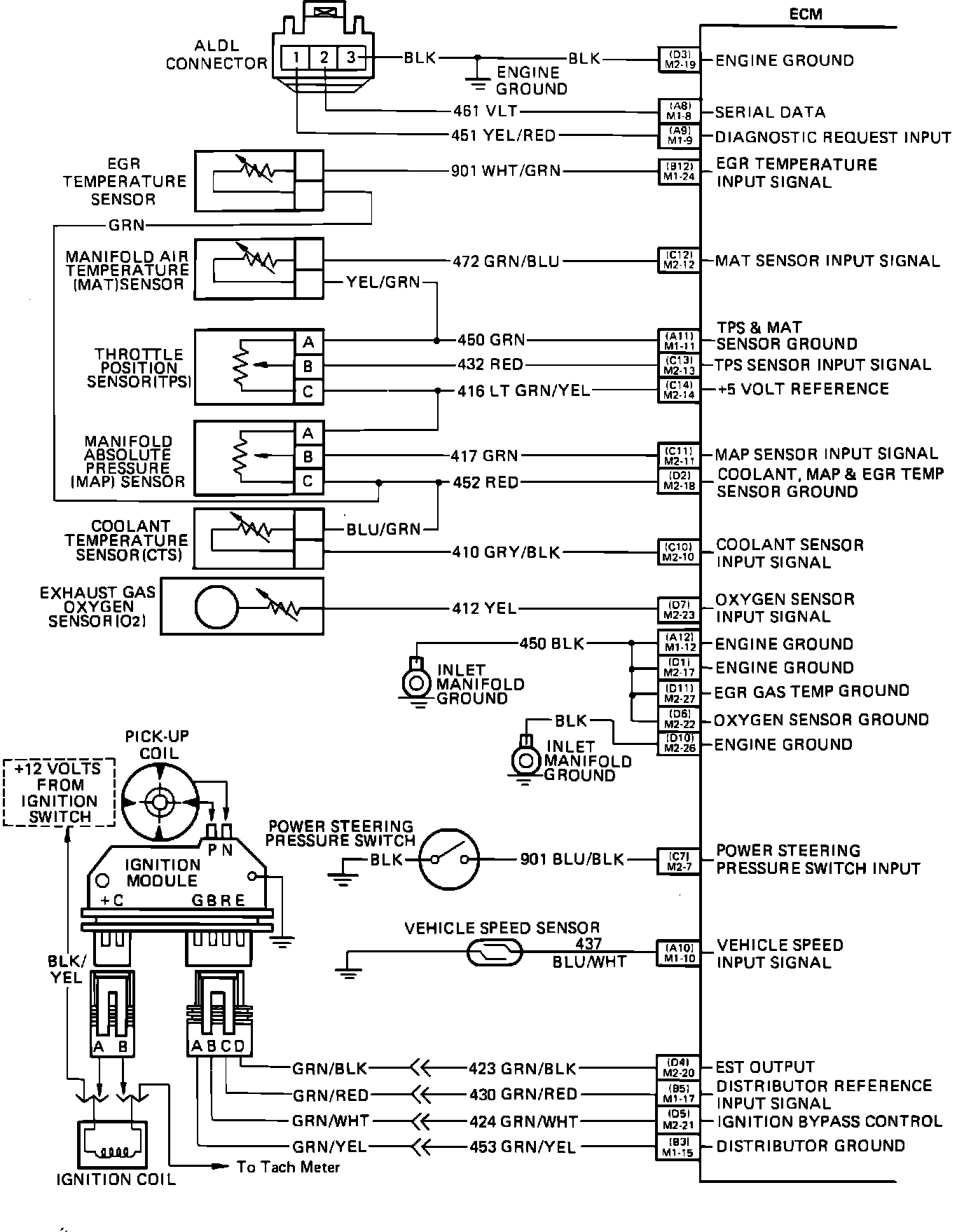

ECM Wiring Diagram (Part 3):

SYSTEM SCHEMATIC

ECM Connector Identification:

ECM CONNECTOR PIN IDENTIFICATION/VOLTAGE CHART
