Automatic Locking Hub

With Automatic Locking Hub:

1. Shift transfer lever to 2H position, then move vehicle forward and rearward approximately three feet.
2. Raise and support vehicle, then remove wheel and tire assemblies.
3. Disconnect brake hose from caliper.
4. Remove caliper locking bolt.
5. Rotate pad assembly upward then remove pad retaining clip and caliper assembly
6. Remove brake pad support bracket.

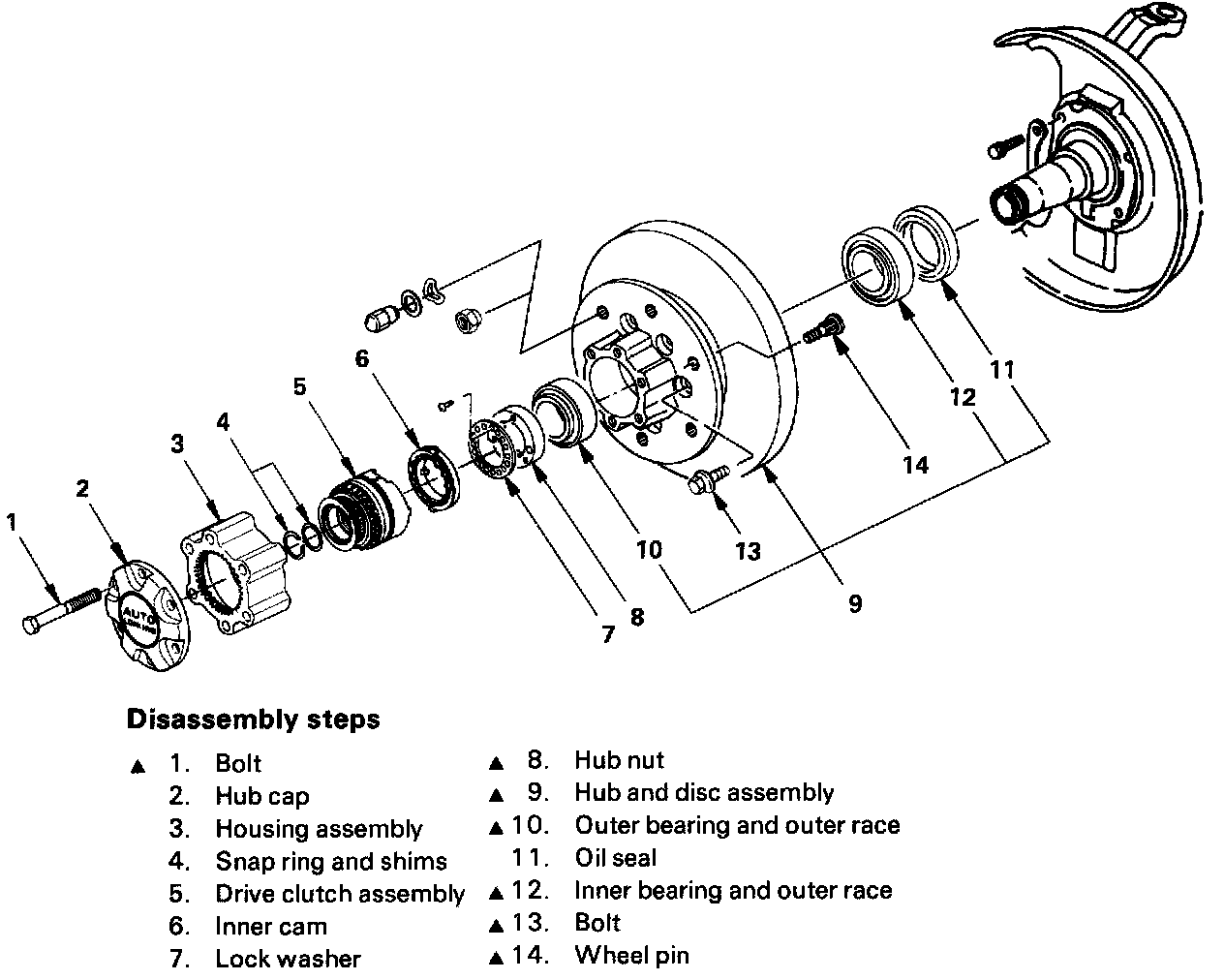

Fig. 1 Exploded View Of Automatic Locking Hub Assembly:

7. Remove hub cap retaining bolts, then the hub cap, Fig. 1.
8. Remove housing assembly, snap ring and shims.
9. Remove drive clutch assembly, inner cam and lock washer.
10. Using removal tool No. J-36827, or equivalent, remove hub nut.
11. Remove hub and disc assembly.
12. Reverse procedure to install.

Hub To Disc Bolt Torque: 75.9 ft.lbs
Automatic hub bolt torque: 43.4 ft.lbs.
