Manual Locking Hub

With Manual Locking Hub:





1. Shift transfer lever to 2H position and set free wheeling hub into Free position.
2. Raise and support vehicle, then remove wheel and tire assemblies.
3. Disconnect brake hose from caliper.
4. Remove caliper locking bolt.
5. Rotate pad assembly upward then remove pad retaining clip and caliper assembly
6. Remove brake pad support bracket.

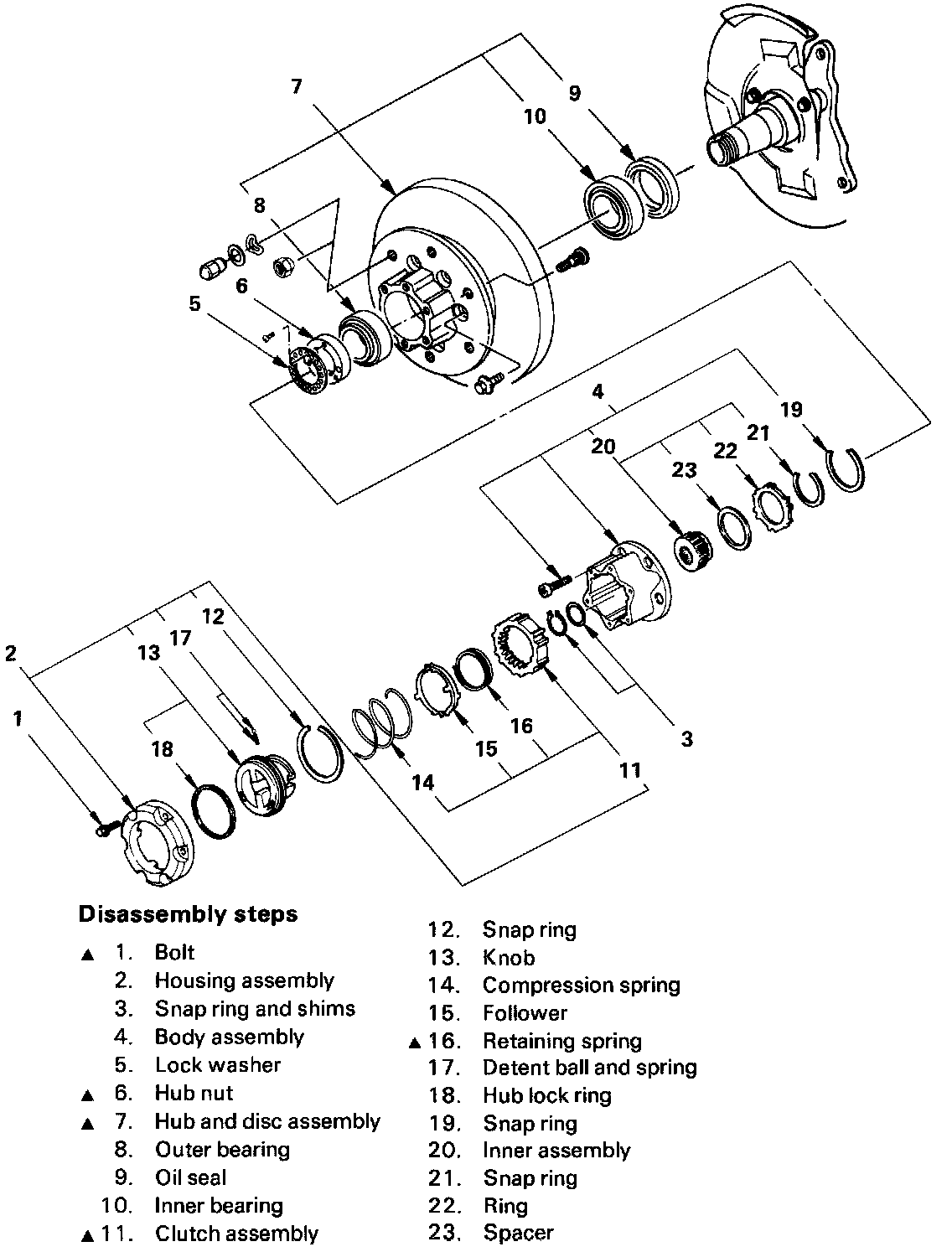

Fig. 2 Exploded View Of Manual Locking Hub Assembly:





7. Remove housing assembly retaining bolts then the housing assembly, Fig. 2.
8. Remove snap ring and shims.
9. Remove body assembly and lock washer.
10. Using removal tool No. J-36827, or equivalent, remove hub nut.
11. Remove hub and disc assembly.
12. Reverse procedure to install.

Hub to disc bolt torque: 75.9 ft.lbs
Hub cover bolt torque: 8.7 ft.lbs.
