Manual Transmission/Transaxle: Testing and Inspection
Troubleshooting is divided into four sub-sections:
1.
Abnormal Noise
1.
Noise in Neutral
2.
Noisy Operation
2.
Hard Shifting
3.
Jumping Out of Gear
4.
Oil Leakage

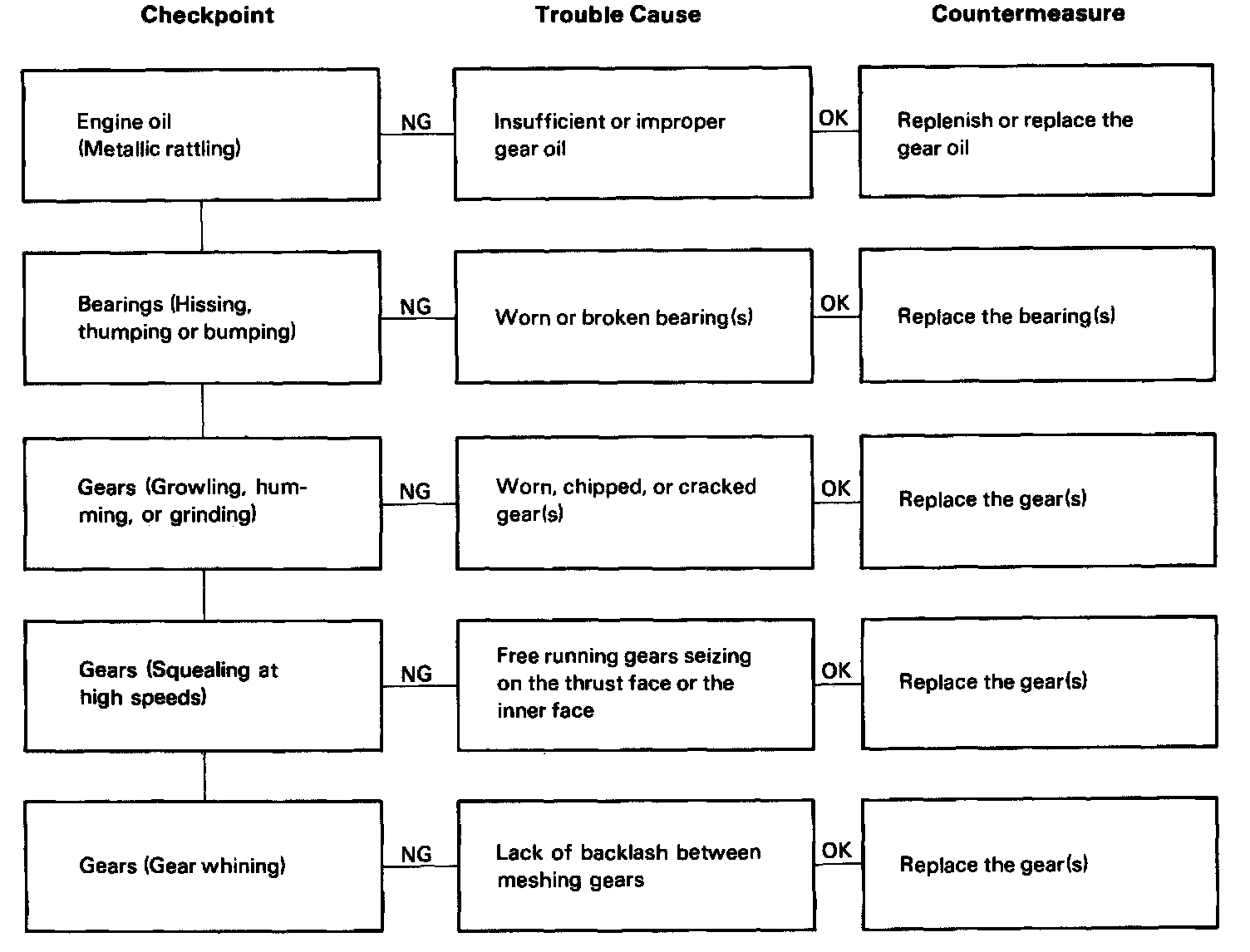

1. NOISY IN NEUTRAL:

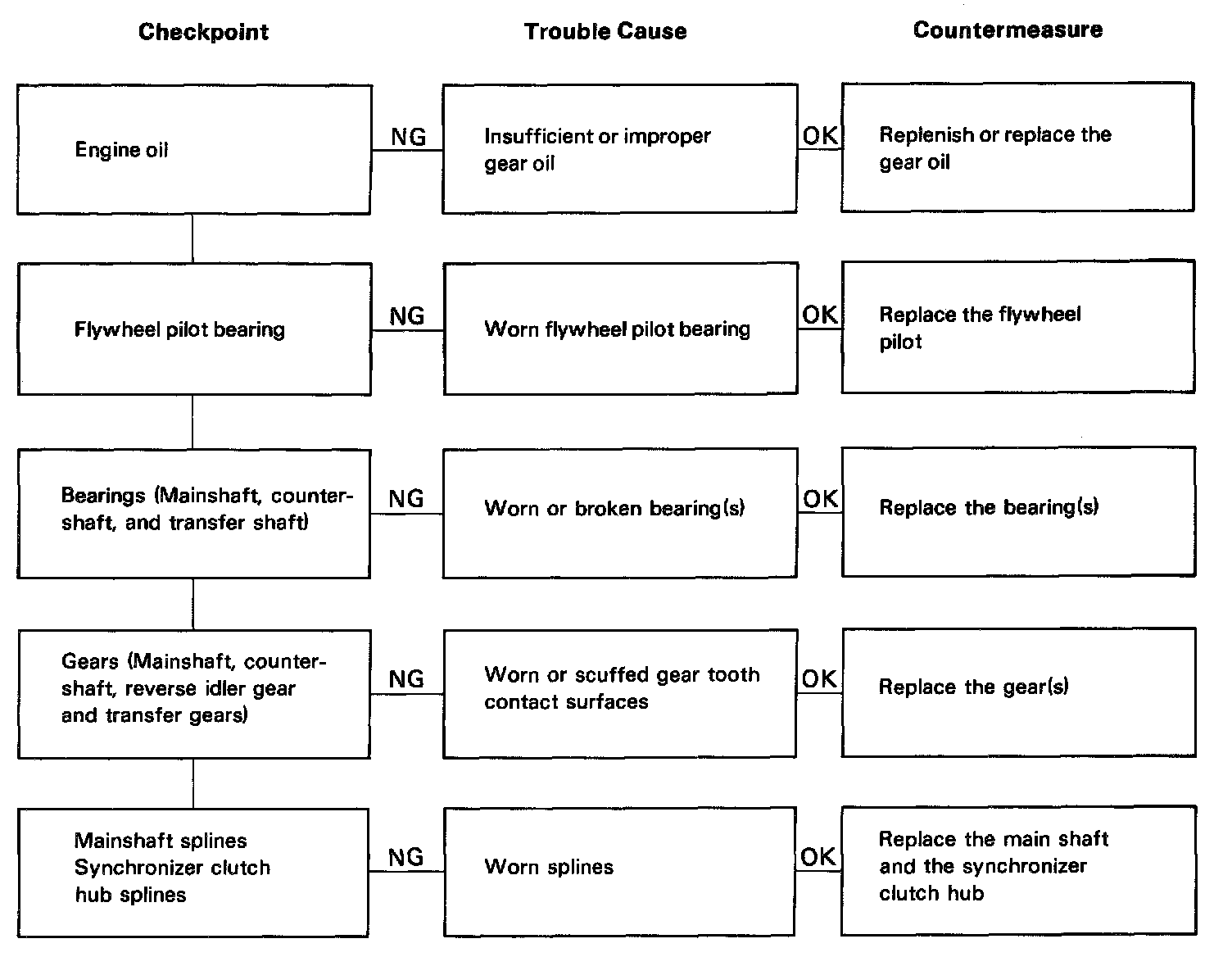

2. NOISY OPERATION:
1.
ABNORMAL NOISE

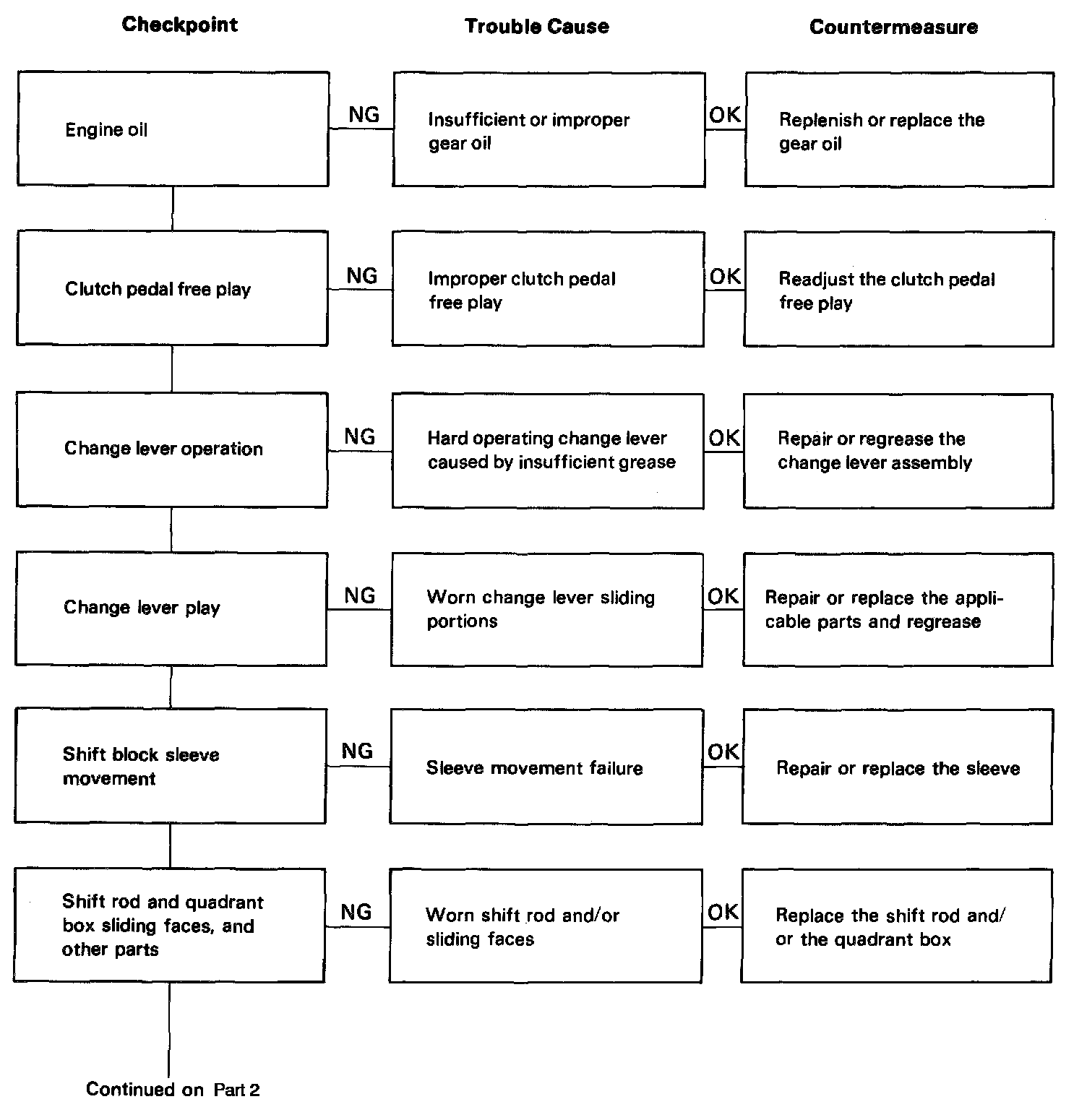

Part 1:
Part 2:
2.
HARD SHIFTING
3.

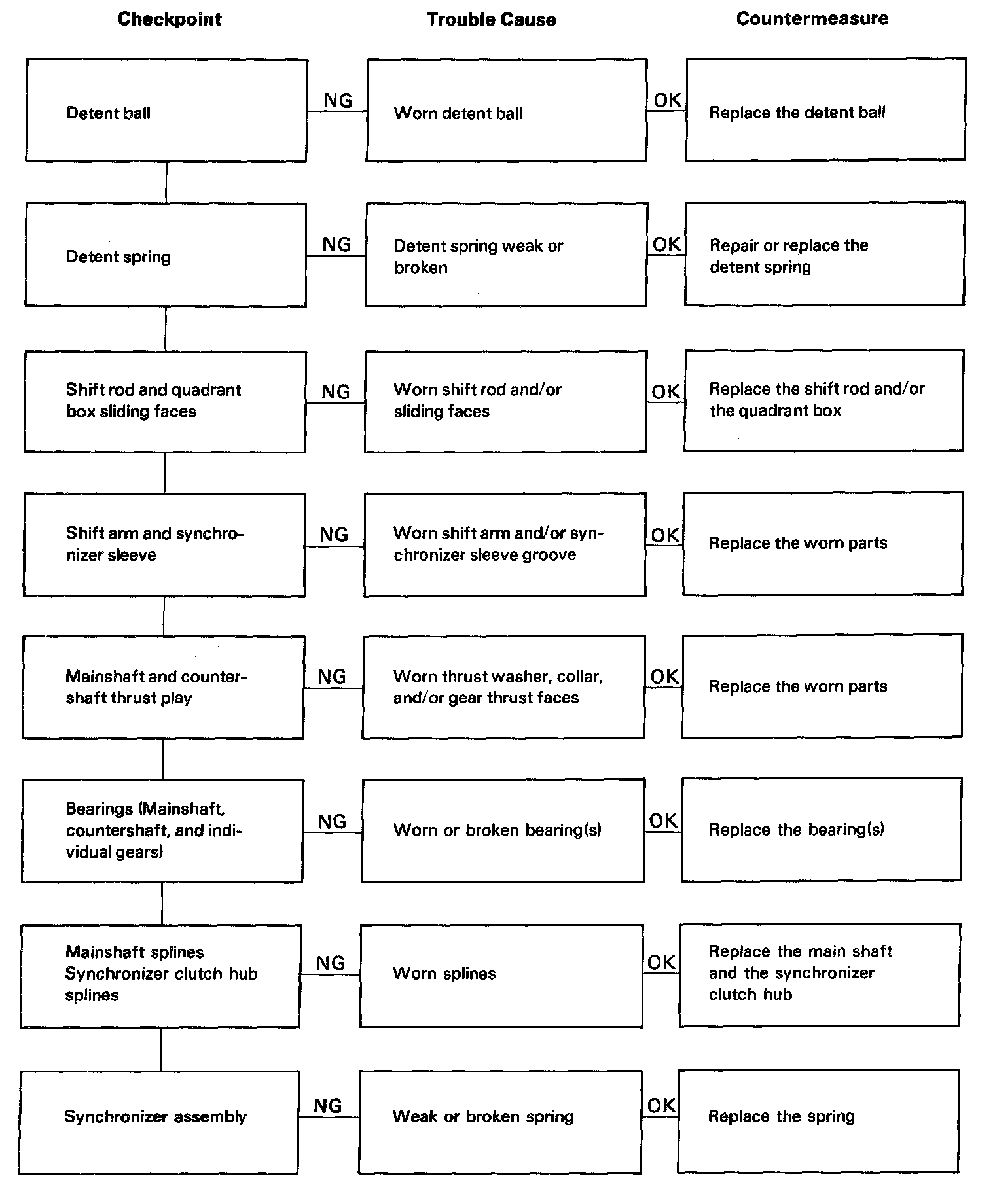

JUMPING OUT OR GEAR
4.

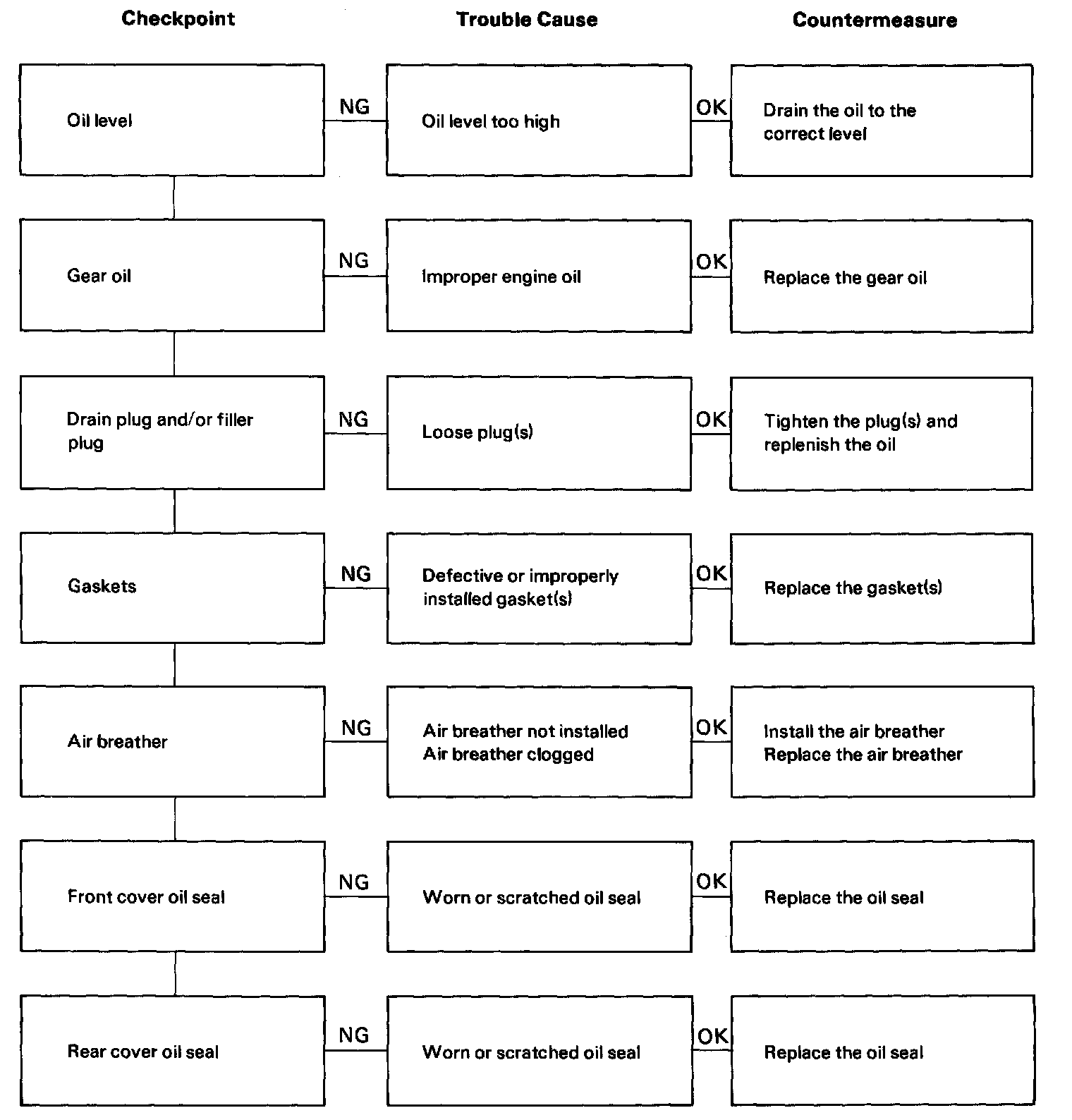

OIL LEAKAGE
