Centrifugal Advance Unit
Checking Centrifugal Advance:
1.
Remove
distributor cap.
2.

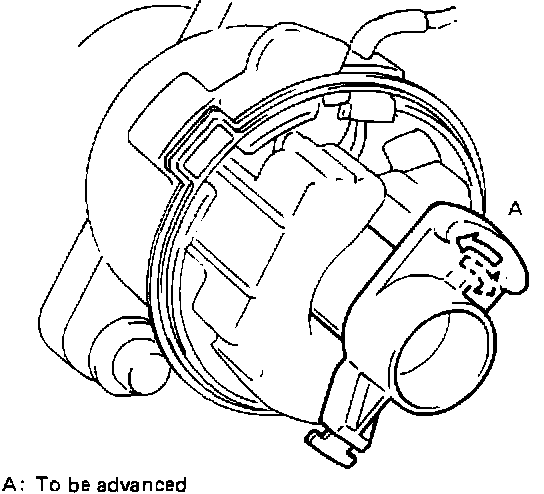

Turn rotor counterclockwise using your fingers an release it.
Rotor should return clockwise from spring force.
3.
Also check if shaft is excessively loose.
Replace distributor housing as an assemble if faults are found.
