Ignition Cable: Testing and Inspection

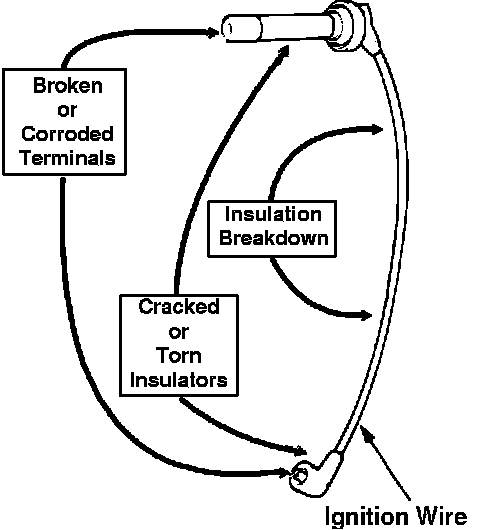

Ignition Wire Visual Inspection:

1. Visually inspect the ignition wires for the following:
a. Insulation for swelling or breakdown due to fuel, oil, grease or etc...
b. Insulation for cracks or breaks.
c. Insulator boots for swelling or breakdown due to fuel, oil, grease or etc...
d. Insulator boots for cracks or breaks.
e. Terminal ends for corrosion, cracks or looseness.

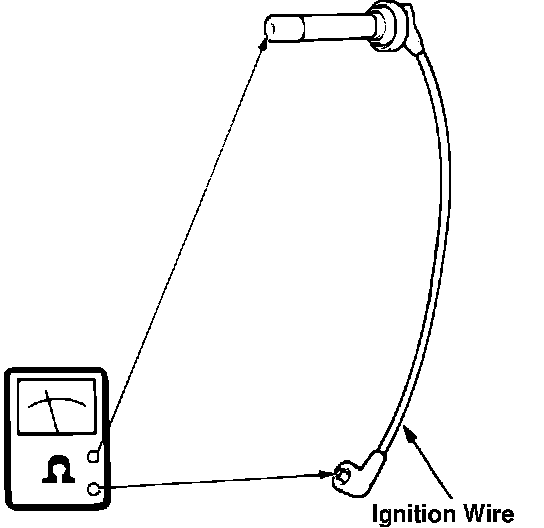

Ignition Wire Resistance Test:

2. Using an ohm meter, check the resistance between the terminal ends.

Resistance: Less than 30k ohms

Replace the wire if it fails the above test.
