Chart D - Anti-Lock & Brake Lamps Flashing
Chart D - Anti-Lock & Brake Lamps Flashing

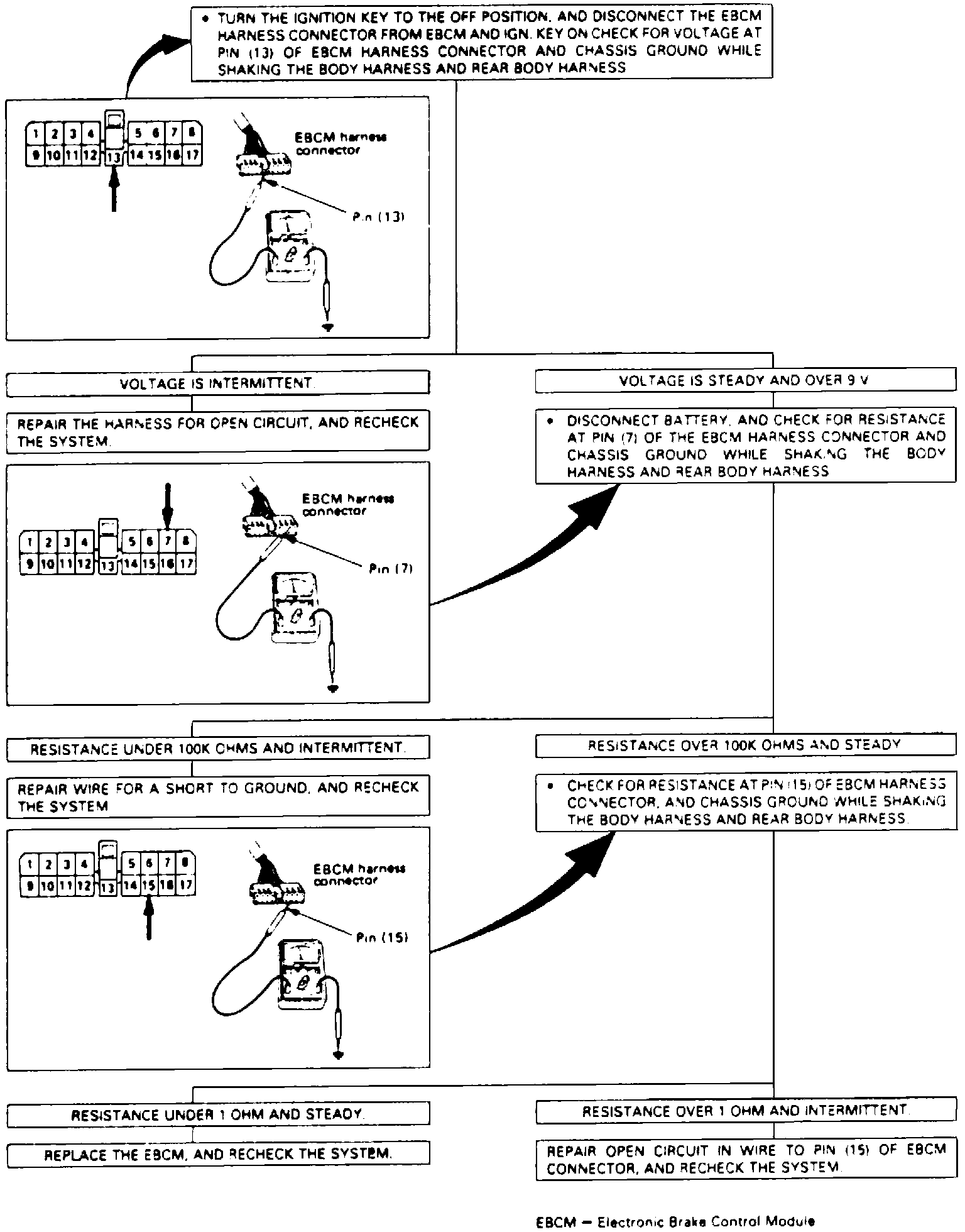

Fig. 26 Chart D: Rear Anti-Lock & Brake Lamps Flashing:
Refer to
Fig. 26
for troubleshooting procedures.
