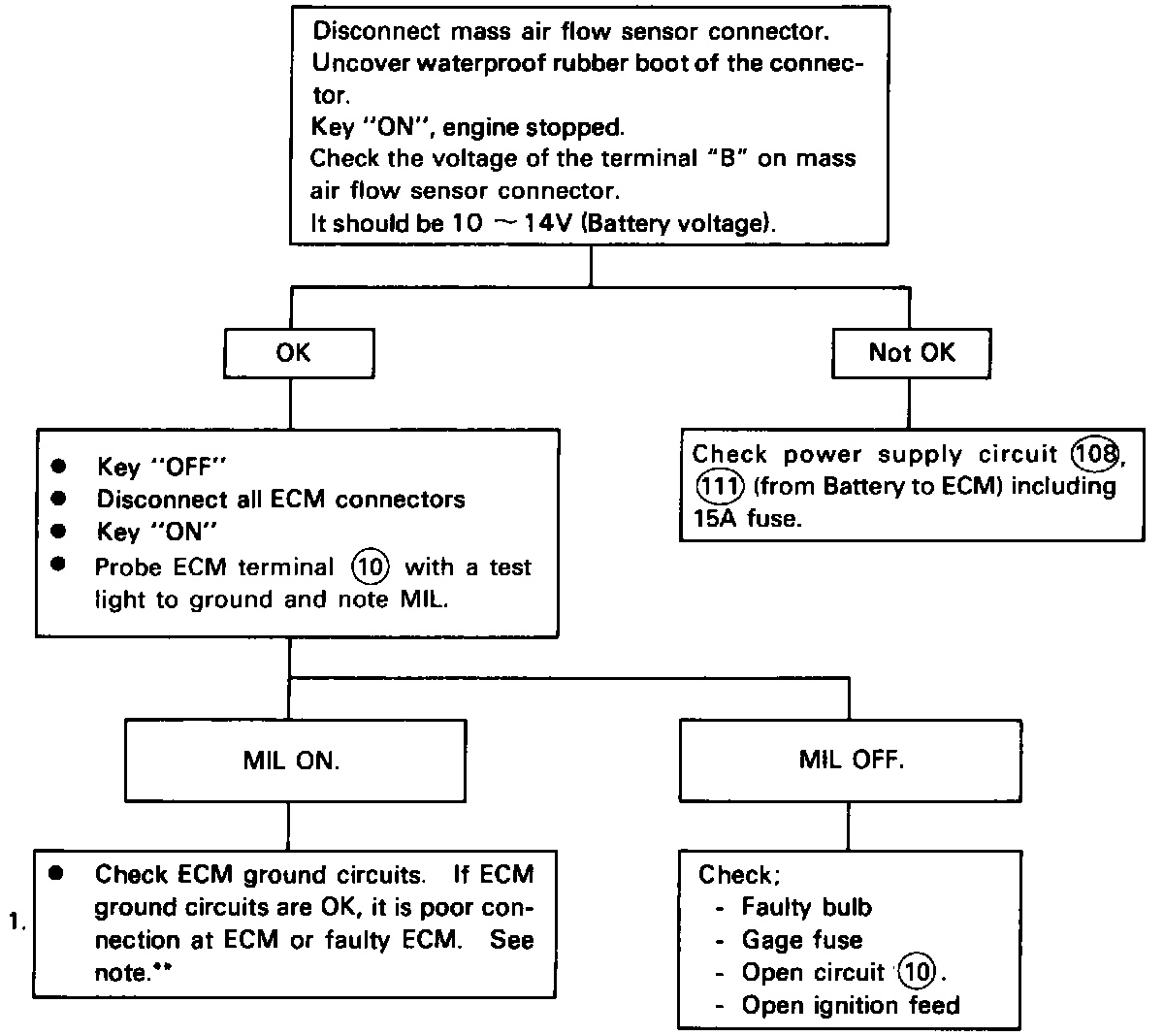

Malfunction Indicator Lamp: Testing and Inspection
NOTE: Before replacing the ECM use a digital multimeter and check the resistance of each ECM controlled relay and solenoid coil.
Replace any relay or solenoid if the resistance measures less than 20 Ohms.
