WOT Switch Test








WOT Switch Test
1. Disconnect WOT switch harness at connector.

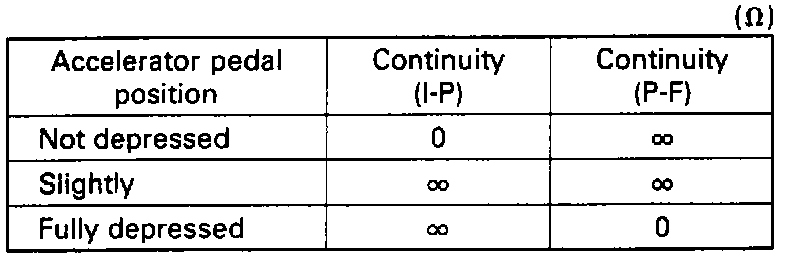

2. Make a continuity test across the terminals with the accelerator pedal depressed in steps.
