Ignition Coil: Service and Repair

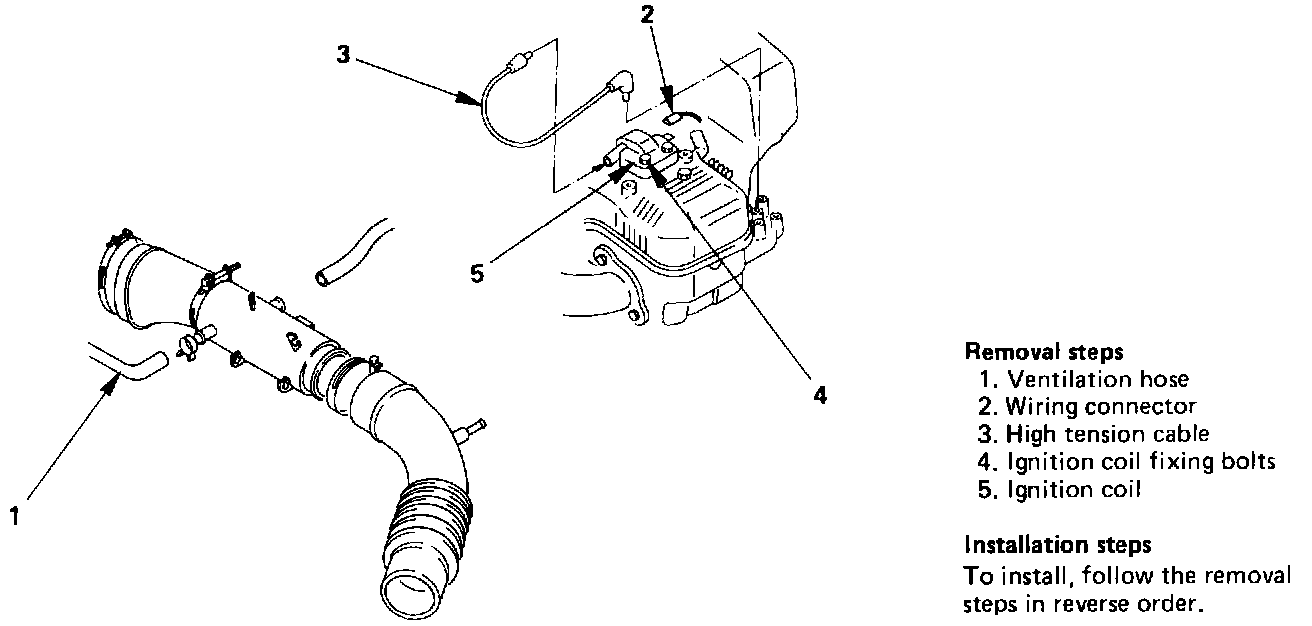

REMOVAL 1.
Remove battery negative cable.
2.
Remove ventilation hose
-
Disconnect from air duct.
3.
Remove wiring connector
-
Disconnect the
ignition coil wiring connector from engine harness.
4.
Remove high tension cable
-
Disconnect from
ignition coil.
5.
Remove
ignition coil fixing bolts
5.
Remove
ignition coil INSTALLATION To install, follow the removal steps in the reverse order
