Refrigerant Pressure Sensor / Switch: Service and Repair

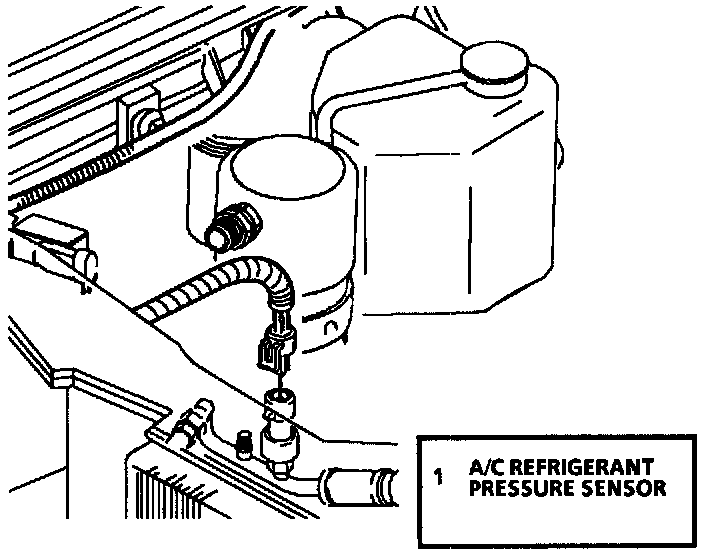

Figure 3A-15-A/C Refrigerant Pressure Sensor:

REMOVE OR DISCONNECT
1. A/C refrigerant pressure sensor electrical connector.
2. A/C refrigerant pressure sensor 0-ring.
3. A/C refrigerant pressure sensor.

INSTALL OR CONNECT
1. 0-Ring
2. A/C refrigerant pressure sensor

Tighten The A/C refrigerant pressure sensor to 4.75 Nm (42 in. lbs.).

3. A/C refrigerant pressure sensor electrical connector.
