Fuel Filter: Service and Repair

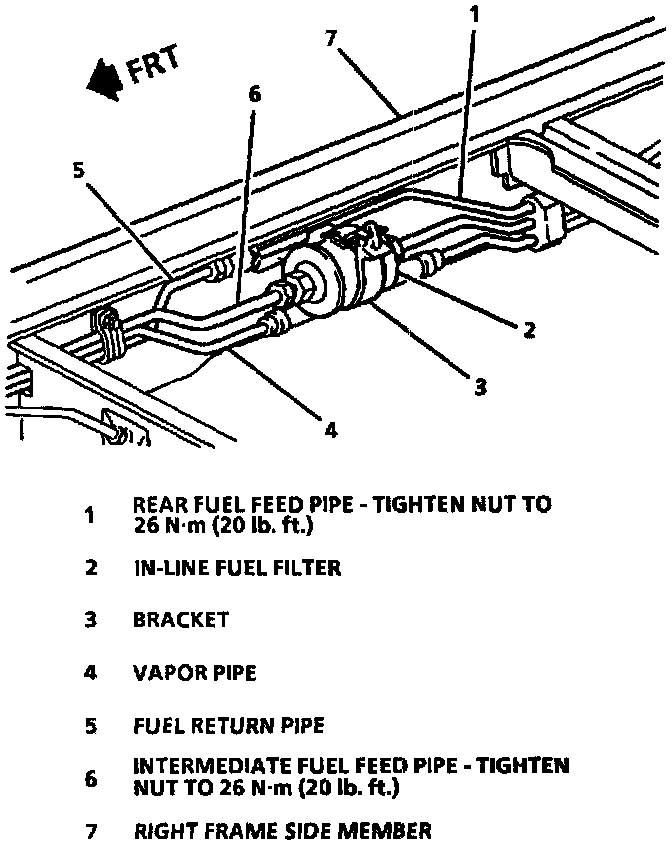

Figure 4E-3 In-Line Filter Replacement:
REMOVE OR DISCONNECT: 1.
Relieve
fuel pressure.
2.
Fuel filler cap.
3.
Fuel feed nuts.
4.
Clamp bolt.
5.
Filter and clamp from fuel lines.
6.
Clamp from filter.
INSTALL OR CONNECT: 1.
Clamp to filter.
2.
Filter and clamp to fuel lines.
3.
Clamp bolt.
4.
Fuel feed nuts.
5.
Fuel filler cap.
6.
Check for leaks.
