Engine System ID

Engine VIN Code ID [1] 4

Engine Displacement 2.2L (134 cid)

Engine Configuration Inline 4 Cylinder

Fuel Control System Sequential Fuel Injection (SFI)

Ignition System Electronic Ignition (EI)

Computer System Powertrain Control Module (PCM)

Remark: [1] The eighth digit of the VIN denotes engine code.

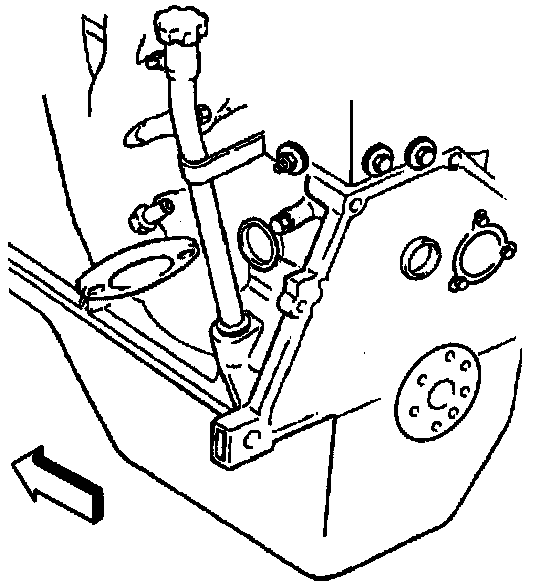

Engine I.D. Number Location:




ENGINE IDENTIFICATION NUMBER
Stick-on labels attached to the engine, or laser etching or stamping on the engine block, indicate the engine unit number or date code.
All engines are stamped with an engine identification number. The stamping contains eight positions.
