Air Temperature Sensor ( Ambient / Intake ): Service and Repair

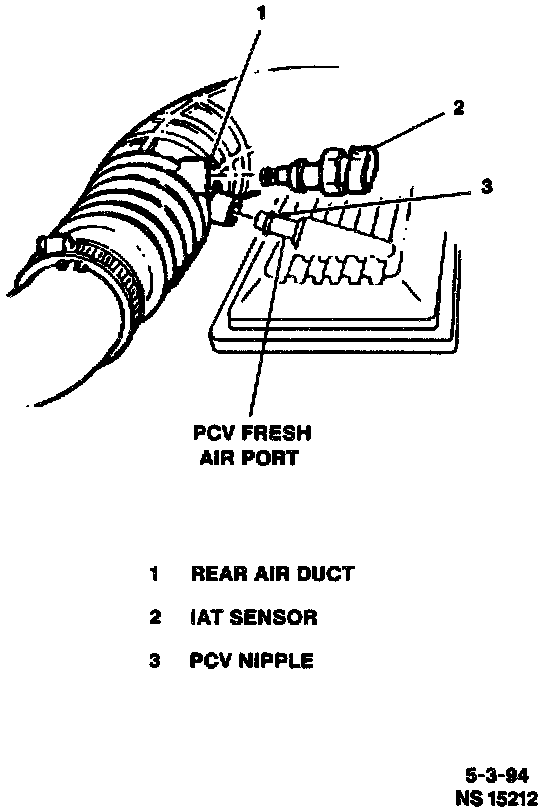

Figure 3A-10 Intake Air Temperature (IAT) Sensor:
REMOVE OR DISCONNECT 1.
Ignition "OFF."
2.
Intake Air Temperature
(IAT) Sensor electrical connector.
3.
Carefully back out IAT sensor.
INSTALL OR CONNECT 1.
IAT sensor into intake air duct.
2.
IAT sensor electrical connector.
