Fuel Tank Pressure Sensor: Service and Repair

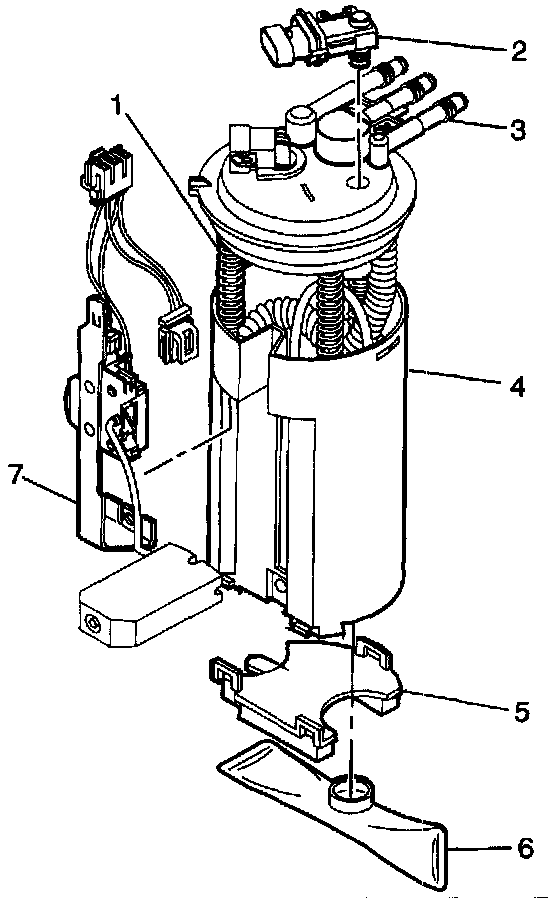

Fuel Tank Vapor Pressure Sensor:




Legend
1. Spring
2. Fuel Tank Vapor Pressure Sensor
3. Hose connectors
4. Fuel sender housing
5. End cap
6. Strainer
7. Fuel Level Sensor

REMOVE OR DISCONNECT
1. Raise the vehicle.
2. Fuel tank.
3. Fuel tank vapor pressure sensor electrical connector.
4. Fuel tank vapor pressure sensor.

INSTALL OR CONNECT
1. Fuel tank vapor pressure sensor.
2. Fuel tank vapor pressure sensor electrical connector.
3. Fuel tank.
4. Lower the vehicle.
