Manifold Pressure/Vacuum Sensor: Service and Repair

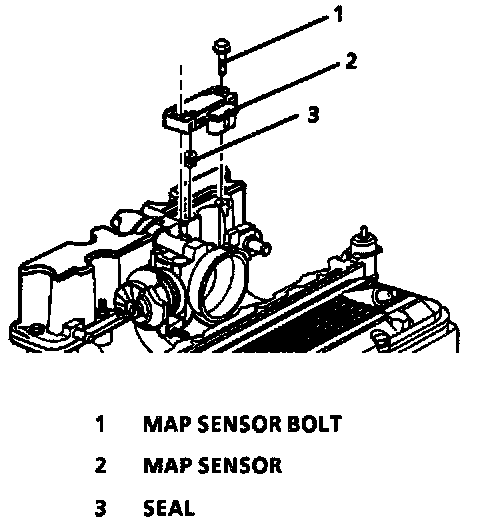

Figure 3A-14 - MAP Sensor:
REMOVE OR DISCONNECT 1.
Manifold Absolute Pressure
(MAP) sensor electrical connector.
2.
Attaching screws.
3.
MAP sensor.
INSTALL OR CONNECT 1.
MAP sensor using attaching screws.
Tighten The attaching screws to 2-4 Nm (18-35 in. lbs.). 2.
MAP sensor electrical connector.
