PCM Connector Terminal Parameters

PCM Connector Terminal Pin-Out

Black 32 Pin Connector (C1)

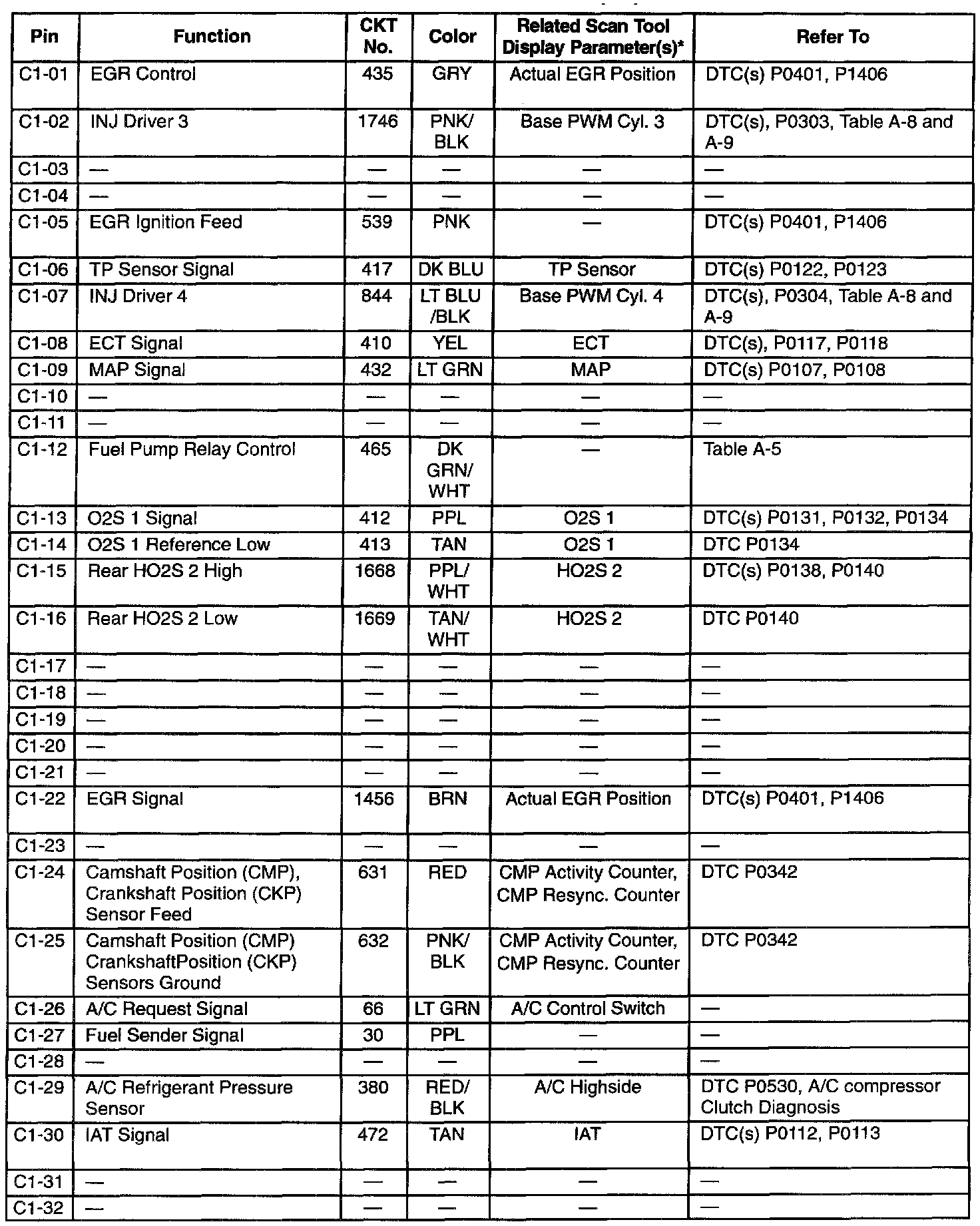

Black 32 Pin PCM Connector (C1):

Gray 32 Pin Connector (C2)

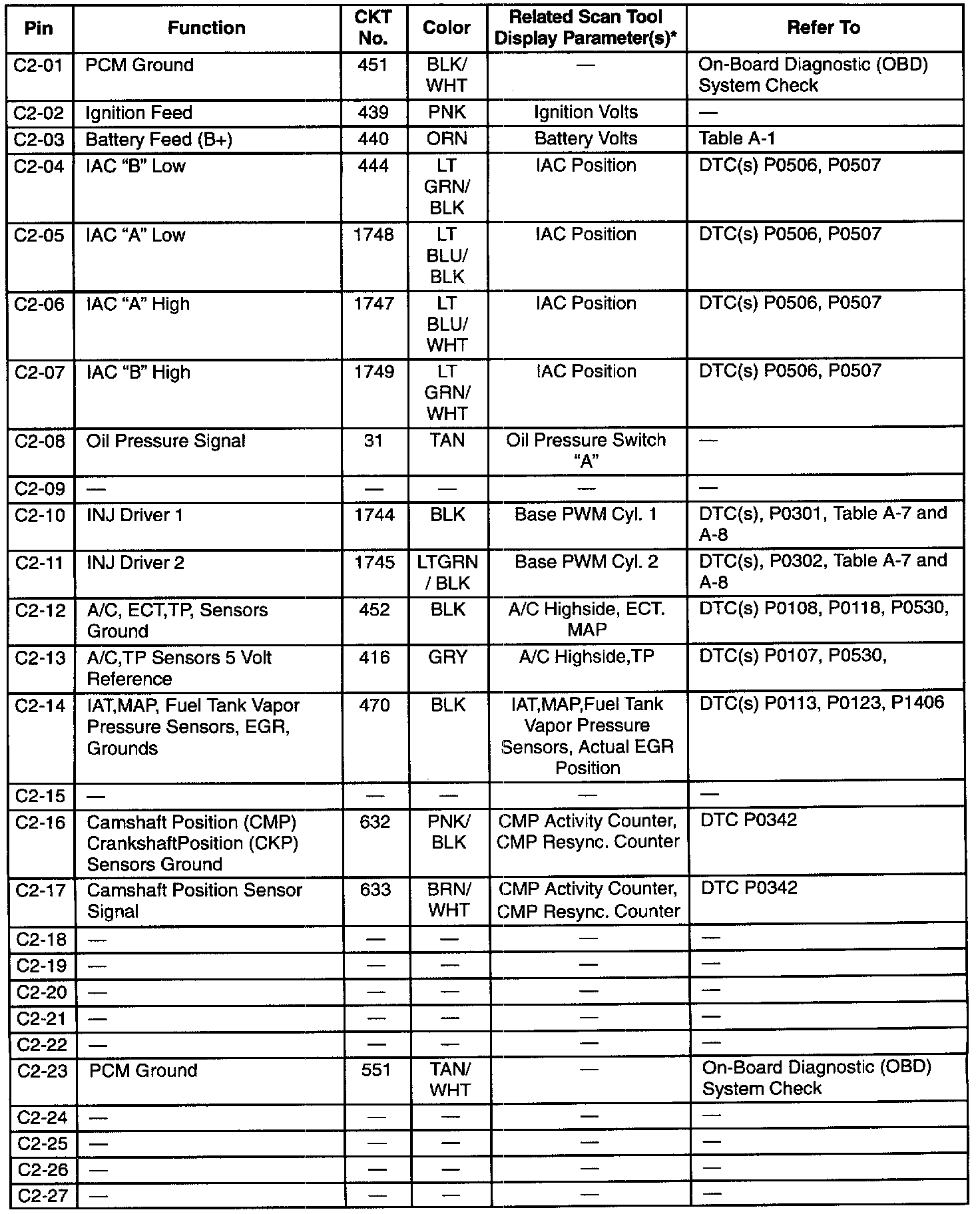

Gray 32 Pin PCM Connector (C2) (1 Of 2):

Part 1 of 2

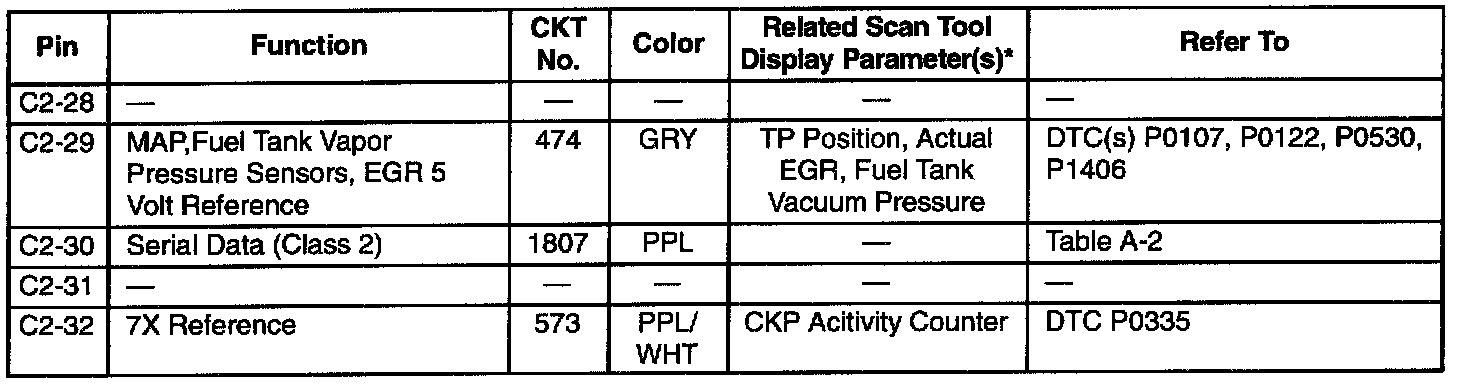

Gray 32 Pin PCM Connector (C2) (2 Of 2):

Part 2 of 2

Blue 32 Pin Connector (C3)

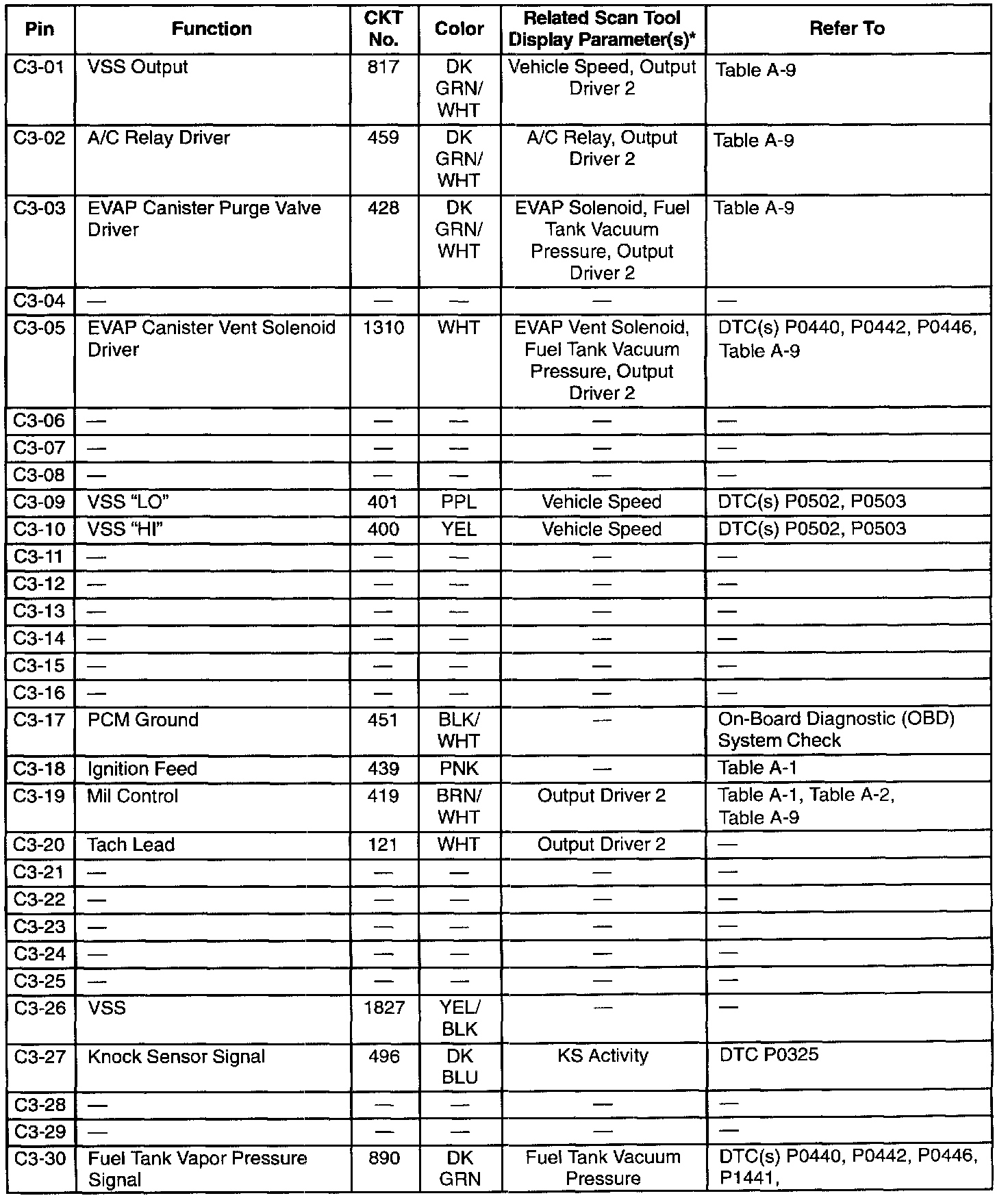

Blue 32 Pin PCM Connector (C3) (1 Of 2):

Part 1 of 2

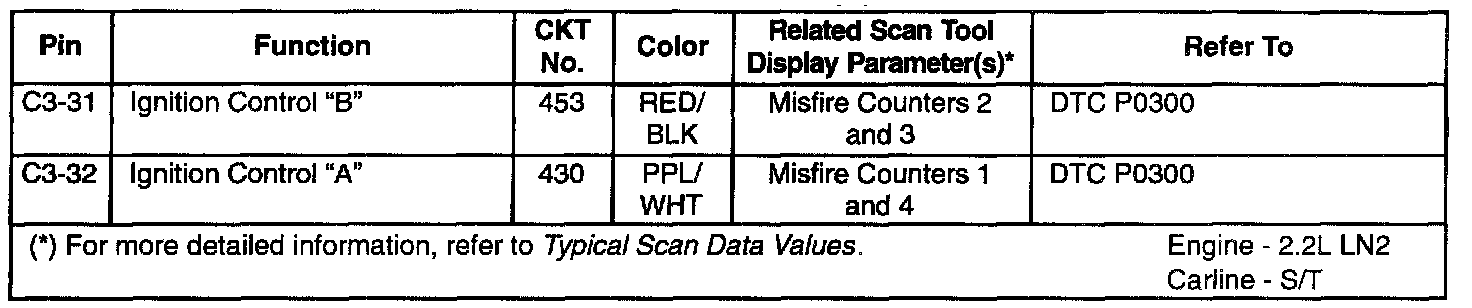

Blue 32 Pin PCM Connector (C3) (2 Of 2):

Part 2 of 2
