PCM Pinout and Description

ENGINE CONTROLS


PCM Connector C1:




PCM Connector C1

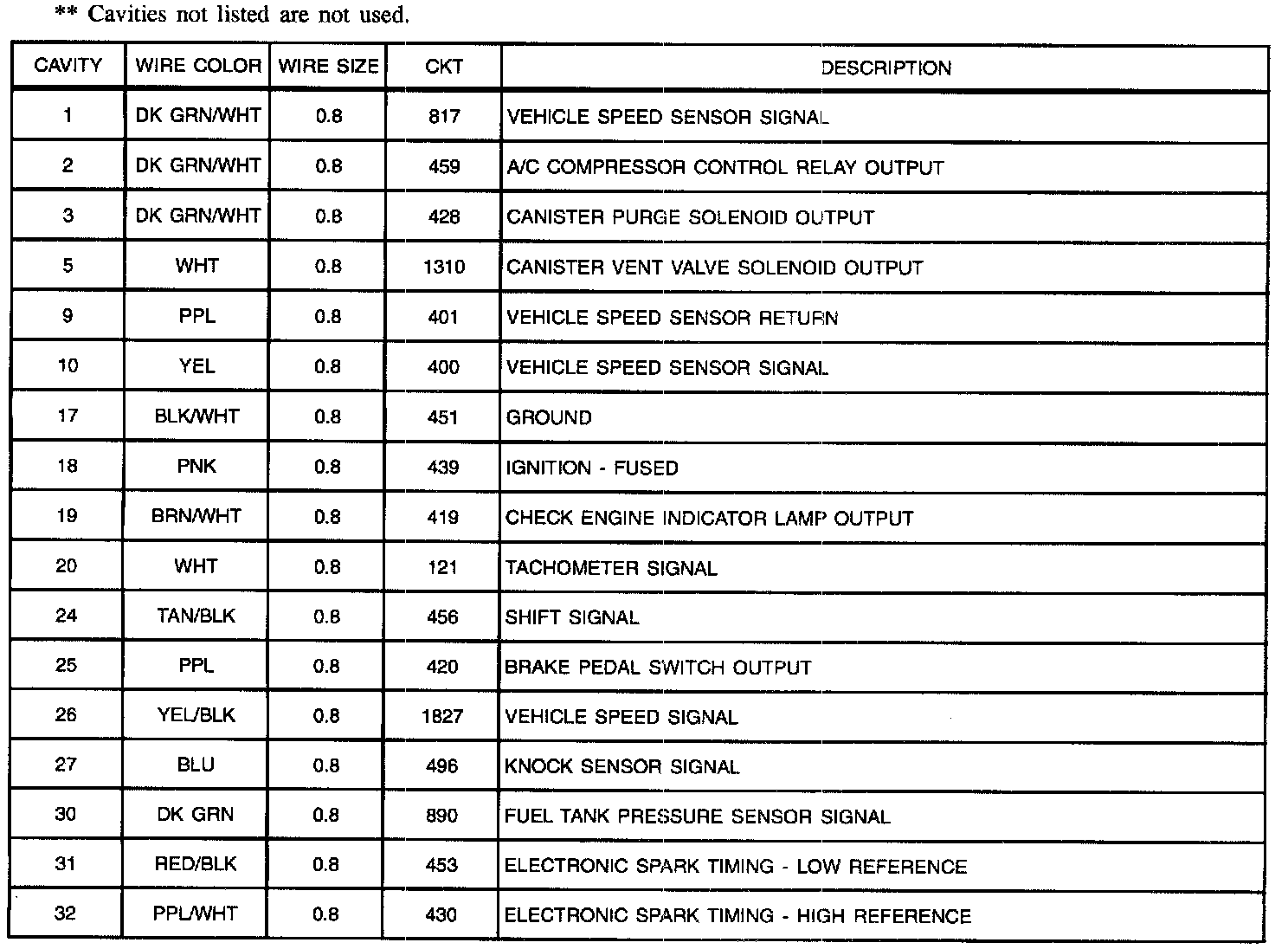

PCM Connector C1 Pin-Out (Connector Pin Descriptions):




PCM Connector C1 Pin-Out (Connector Pin Descriptions)

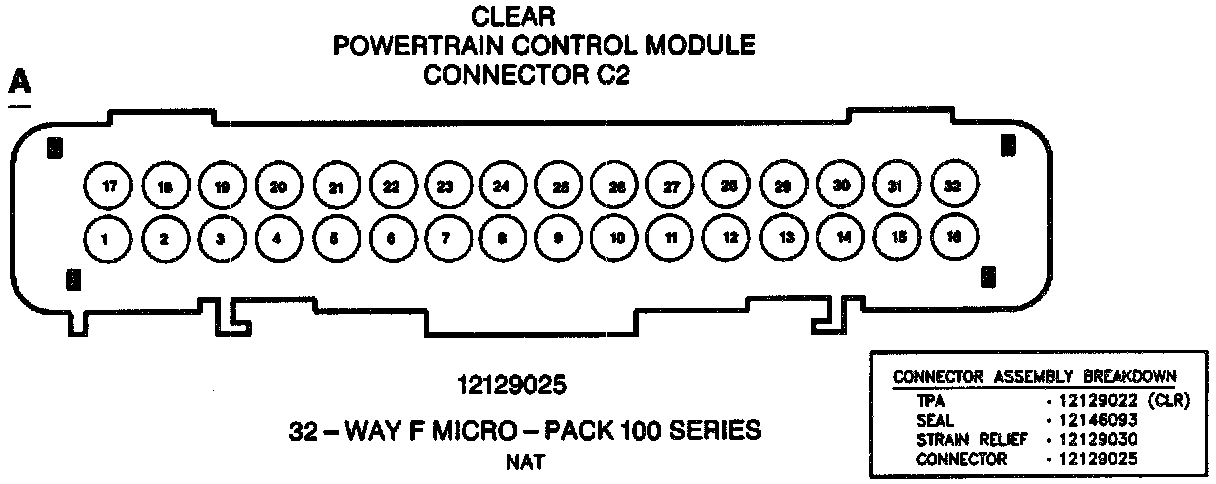

PCM Connector C2 (Clear):




PCM Connector C2 (Clear)

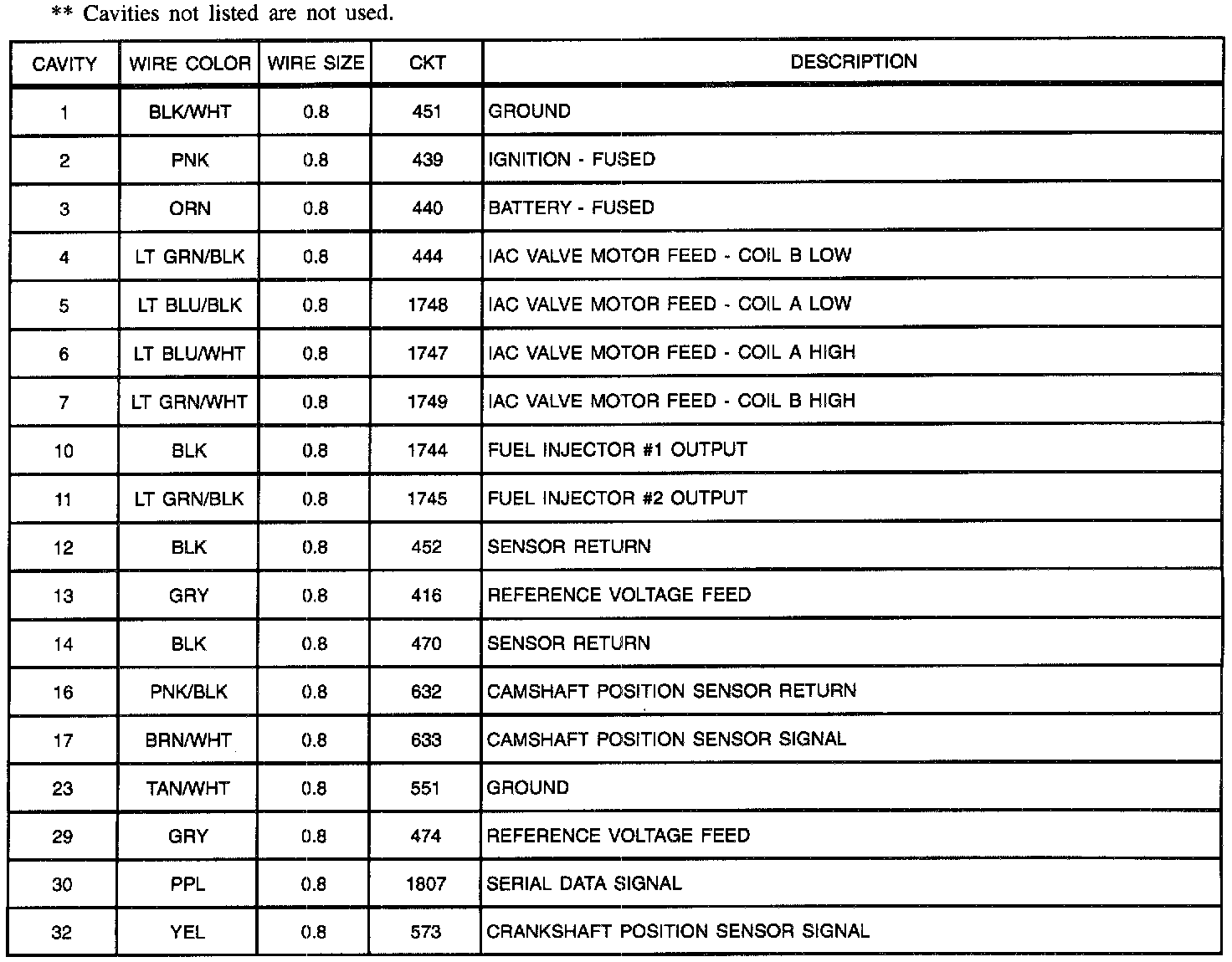

PCM Connector C2 (Clear) Pin-Out (Connector Pin Descriptions):




PCM Connector C2 (Clear) Pin-Out (Connector Pin Descriptions)

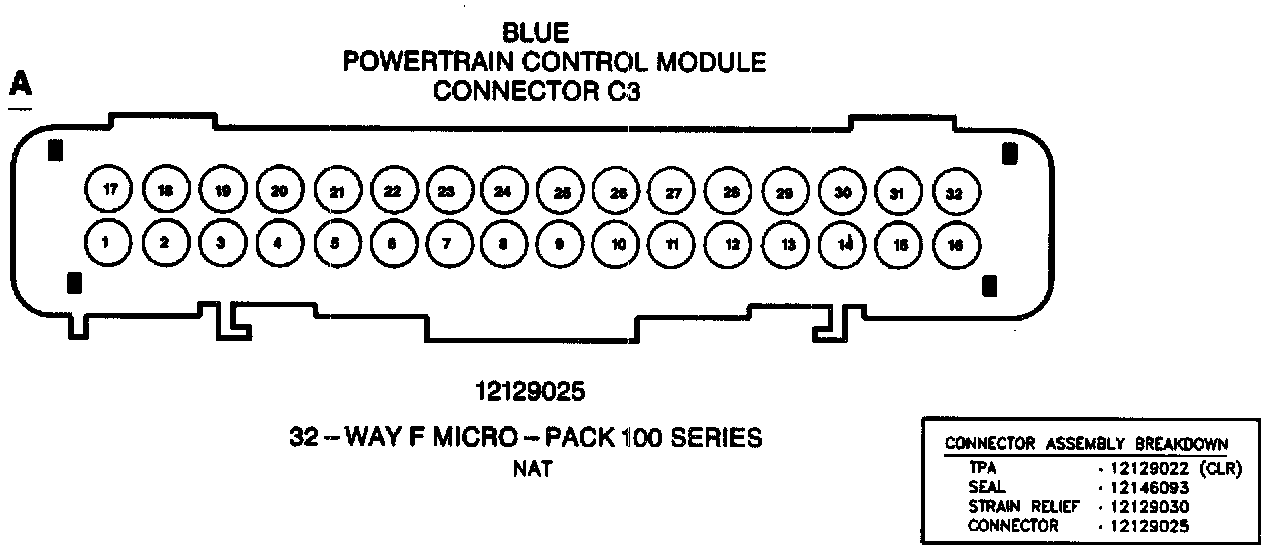

PCM Connector C3 (Blue):




PCM Connector C3 (Blue)

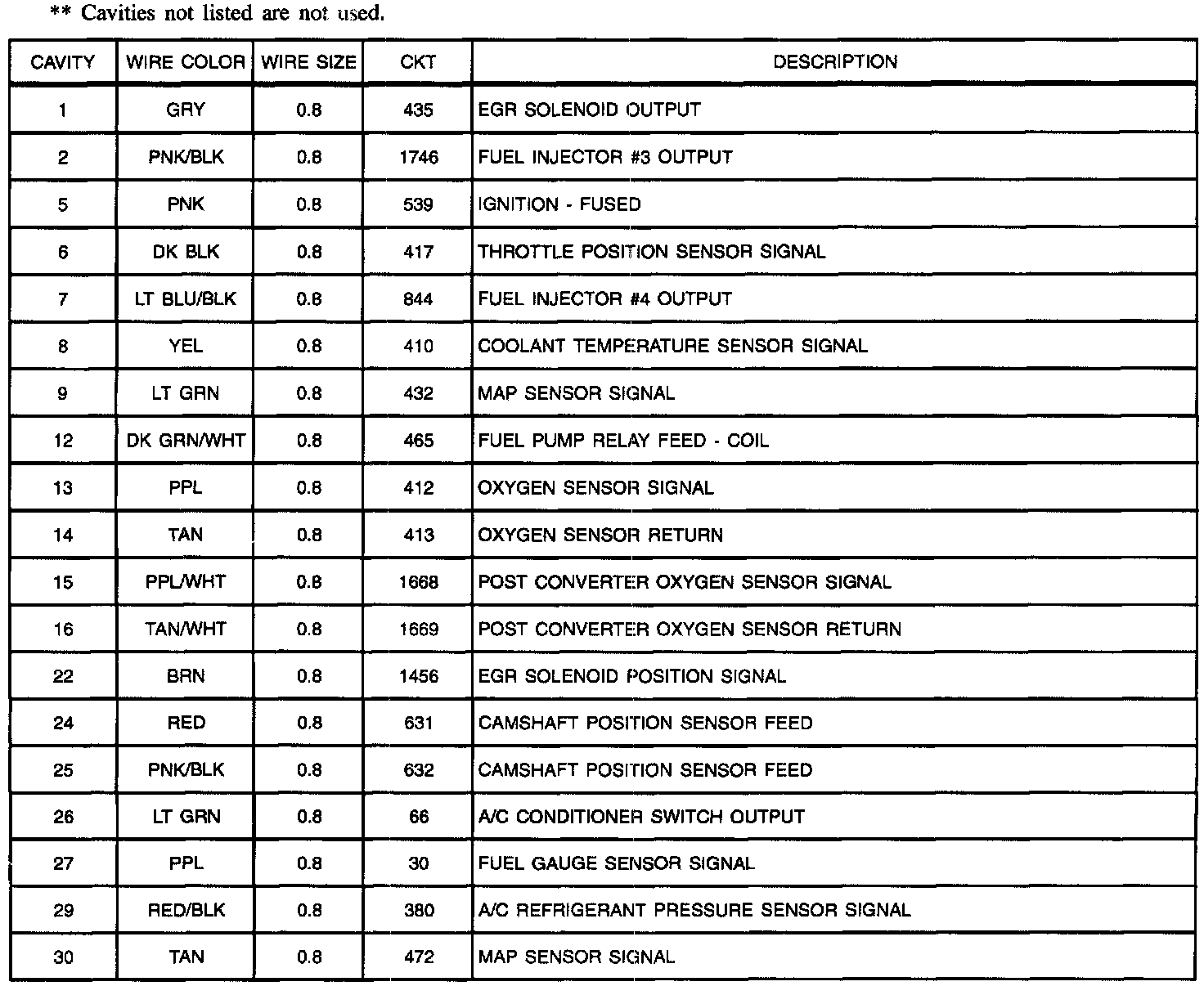

PCM Connector C3 (Blue) Pin-Out (Connector Pin Descriptions):




PCM Connector C3 (Blue) Pin-Out (Connector Pin Descriptions)
